Article number Select a color, please

Light column 360 degrees symmetrical

type ..0869

1.916,502.254,60

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
DALI control Product-Icon Luminaire can be supplied for DALI control.
Luminaire can be supplied for DALI control.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Amber LED possible Product-Icon Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux according to IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

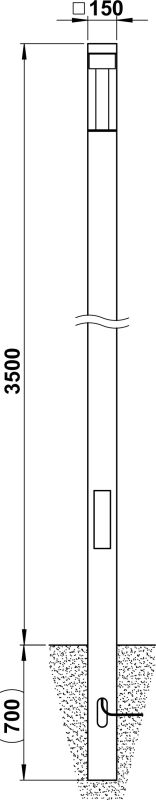

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620869
Offertext
For: 660869
Full catalog 21 / 22
Spare parts
90270473 - G-473, acrylic, 150 x 150 x 3 mm, 395 mm show

Additional information

Weight N/A
Mounting Type

Post top

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

Yes

Light distributor

Refractor lens

Dimming DALI

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

No, Yes

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Lamp type

LED exchangeable

Light type

Standleuchte

Degree of protection (IP)

IP54

Highest energy efficiency class of the exchangeable lamp

A+

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Cable length

0 m

Suitable for lamp power

28 W

Max. system power

28 W

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Colour temperature

3000 K

Height

> 1700 mm

Rated luminous flux according to IEC 62722-2-1

3000 lm

Lowest energy efficiency class of the exchangeable lamp

E

Height/depth

3500 mm

Width

150 mm

Length

150 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig
