Article number Select a color, please

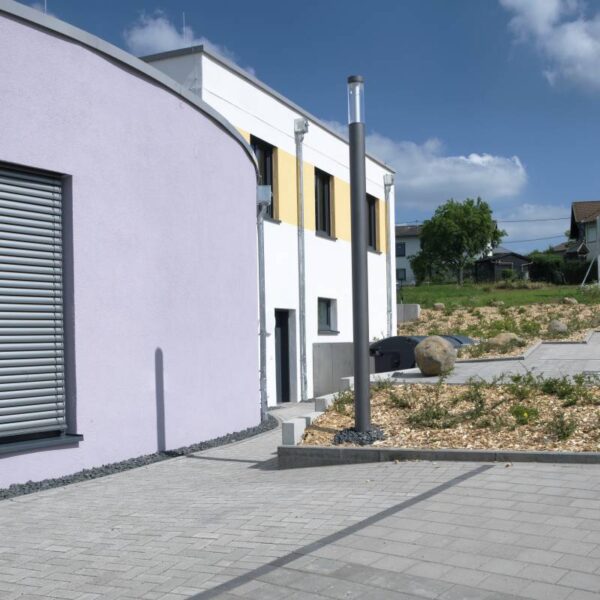

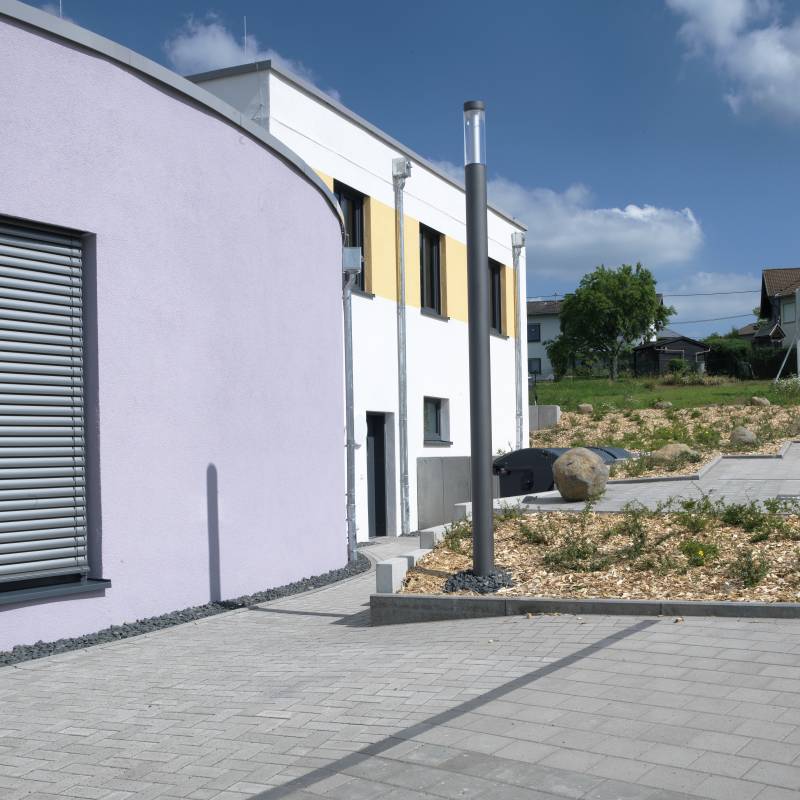

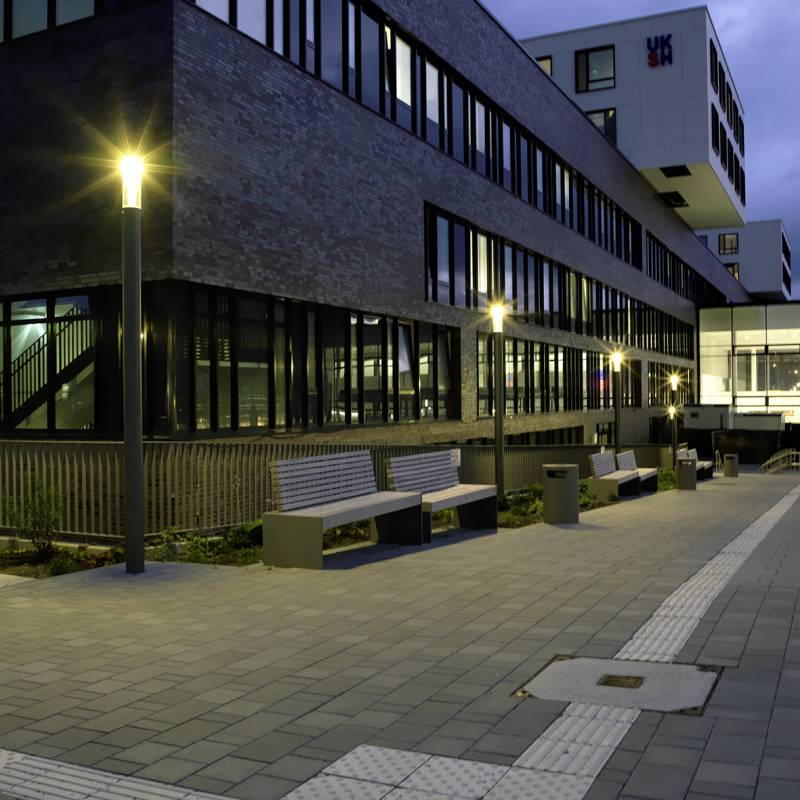

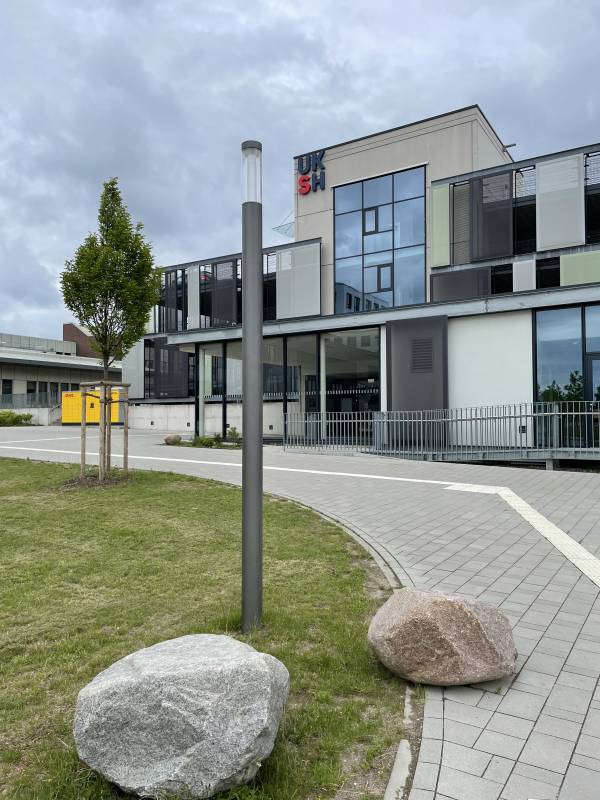

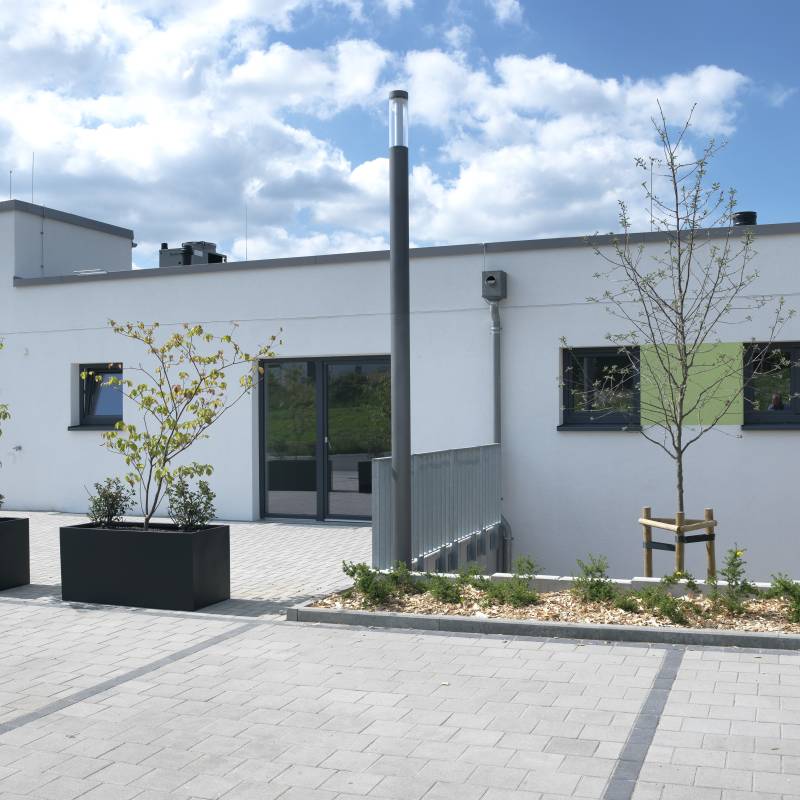

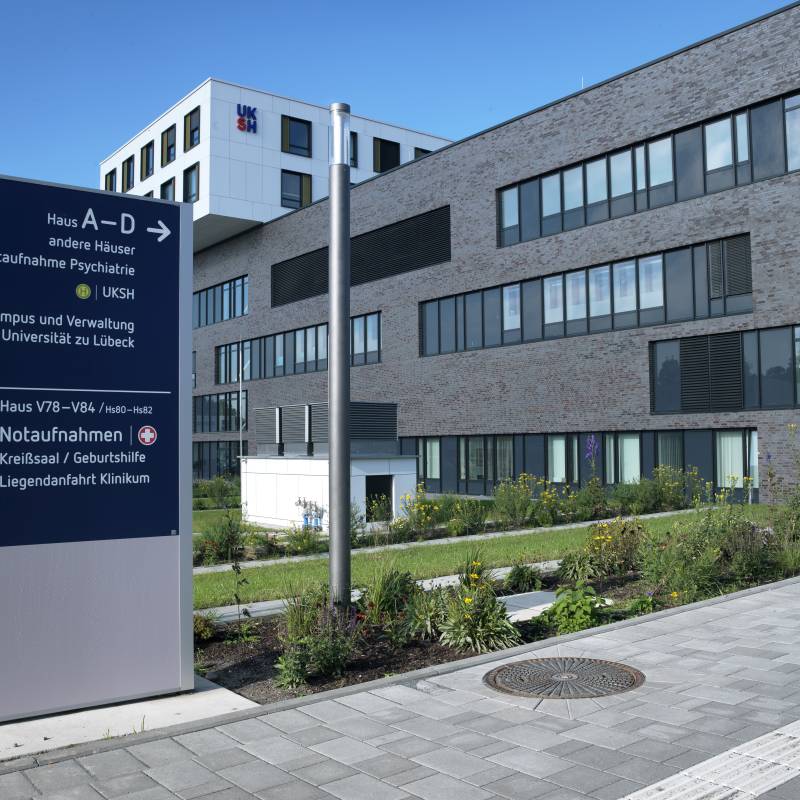

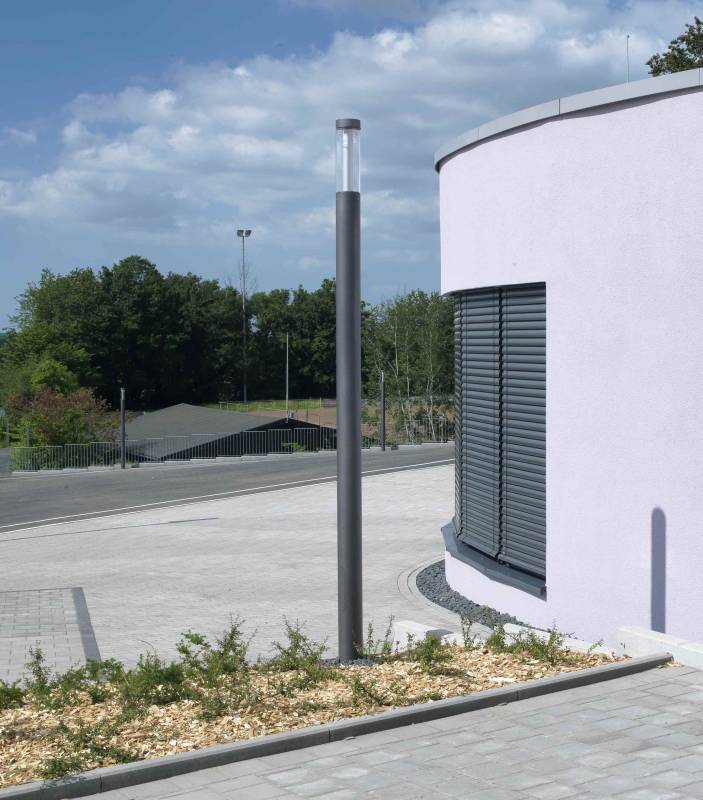

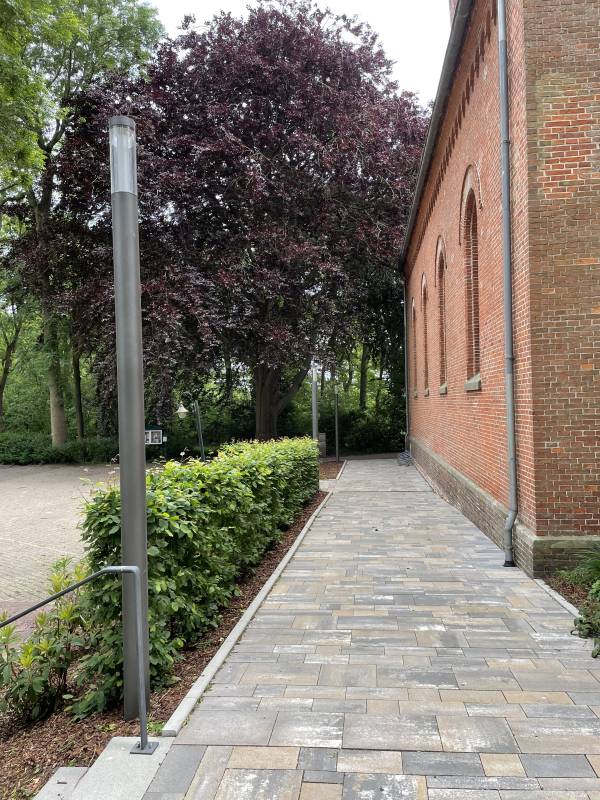

Light column 180 degrees asymmetrical

type ..0867

1.546,301.819,20

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be supplied for DALI control.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux according to IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

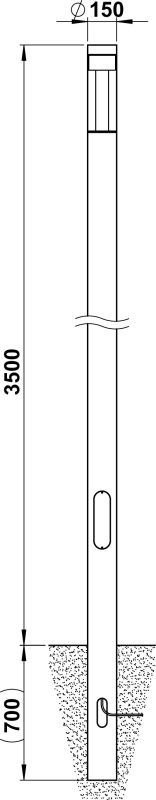

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620867
Offertext
For: 660867
Full catalog 21 / 22
Spare parts
10260400 - G-400, acrylic,150 x 3 mm, 395 mm show

Additional information

Weight N/A
Mounting Type

Post top

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Dimming 0-10 V

Yes

Dimming DALI

Yes

Light distributor

Refractor lens

Rated luminous flux according to IEC 62722-2-1

3000 lm

Max. system power

28 W

Dimming phase cut-on

No, Yes

Dimming phase cut-off

Yes

With light source

Yes

Lamp type

LED exchangeable

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Cable length

0 m

Suitable for lamp power

28 W

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Colour of light

White

Colour temperature

3000 K

Degree of protection (IP)

IP54

Height

> 1700 mm

Colour rendering index CRI

80-89

Colour consistency (McAdam ellipse)

SDCM3

Exchangeable control gear

Yes

Light type

Standleuchte

Power factor

0.9

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Diameter

150 mm

Height/depth

3500 mm

Shape

Eckig
