Data sheet
Article number
Select a color, please

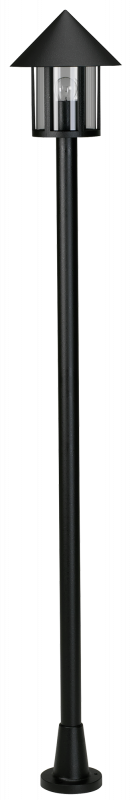

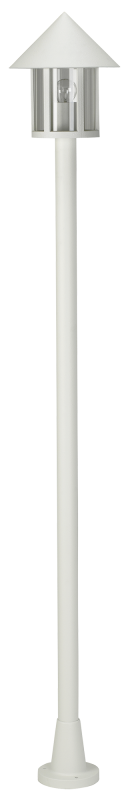

Pole light 1-light
type ..4127
€455,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Pole included
Ja
Documents and files
Assembly instruction

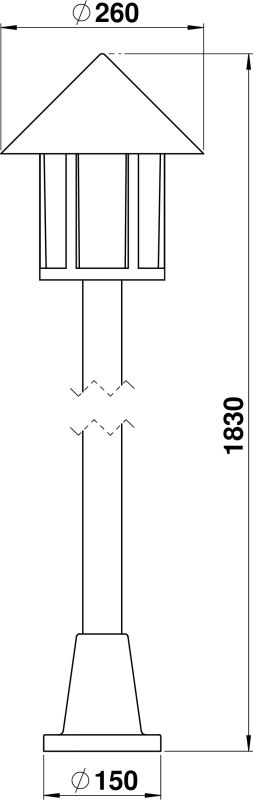

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 654127
Offertext
For: 664127
Offertext
For: 684127
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Colour housing | Black, Brown-Brass, White |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Material cover | Plastic, transparent |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Type of control gear | Not required |
| Lamp type | HV halogen lamp |
| Type of wiring | Suitable for through wiring |
| Dimming phase cut-on | Yes |
| Suitable for lamp power | 1 – 75 W |
| Power factor | 1 |
| Protection class | I |
| Nominal voltage | 230 V |
| Height/depth | 1830 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | > 1700 mm |
| Max. system power | 75 W |
| Cable length | 0 m |
| Connection type | Screwed terminal |
| Diameter | 260 mm |
| Light type | Standleuchte |
| Number of poles | 3 |
| Pole included | Ja |
| Style | Landhaus |
| No dim function | Yes |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Degree of protection (IP) | IP44 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Shape | Eckig |
