Article number Select a color, please

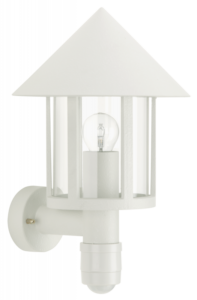

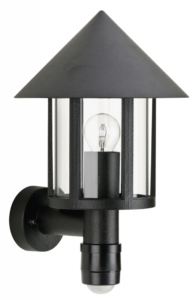

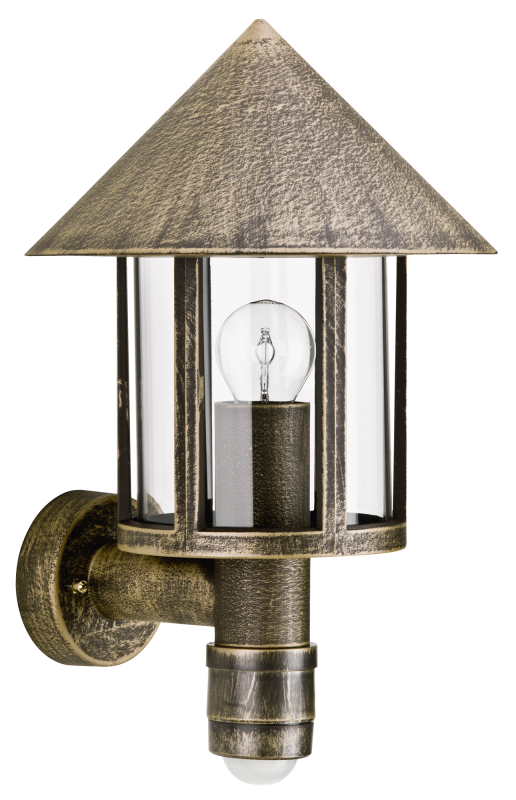

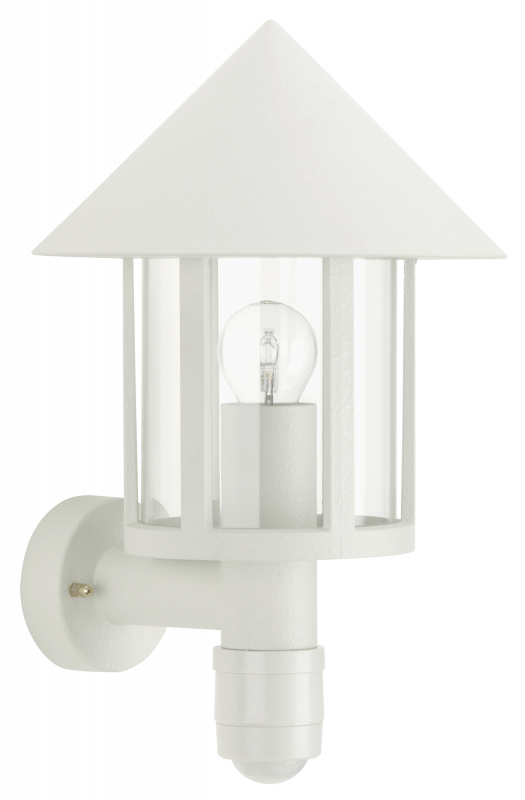

Wall lamp

type ..1825

245,60

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Documents and files
Assembly instruction

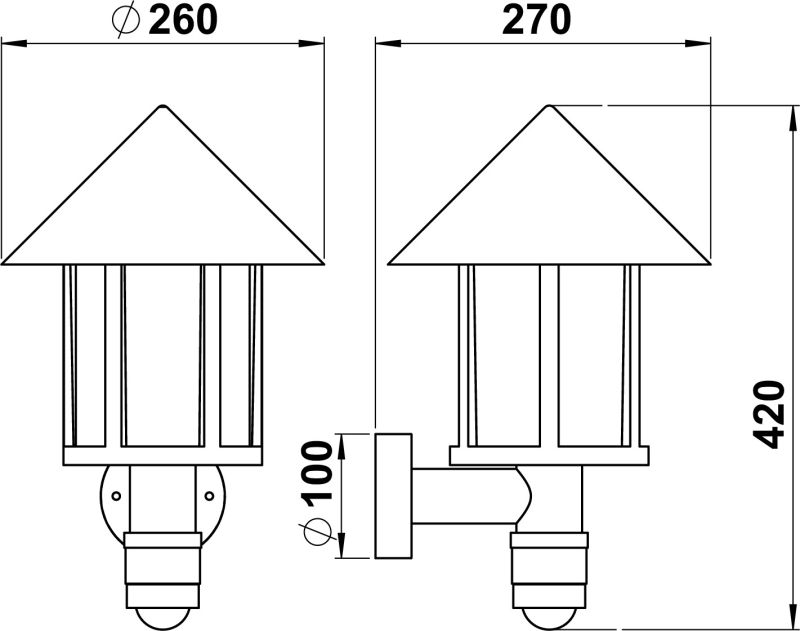

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 651825
Offertext
For: 661825
Offertext
For: 681825
Full catalog 21 / 22
Spare parts
10260373 - G-373, acrylic tube clear 209 mm show
Accessories
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651825
show
661005 - Corner bracket round type ..1005, Black
Für: 661825
show
681005 - Corner bracket round type ..1005, White
Für: 681825
show
90750100 - LED Retrofit Classic show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for number of lamps

1

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

Power factor

1

Type of wiring

Ending

Nominal voltage

230 V

Dimming phase cut-off

Yes

Material housing

Aluminium

Colour housing

Black, Brown-Brass, White

Material cover

Plastic, transparent

Voltage type

AC

Type of control gear

Not required

Length

270 mm

Max. system power

75 W

Dimming manufacturer's proprietary system

Yes

Outer diameter

260 mm

Dimming phase cut-on

Yes

Lamp holder

E27

Height/depth

420 mm

Surface protection housing

Lacquered

Light output

1-seitig

No dim function

Yes

Light sharing

Symmetric

Suitable for lamp power

1 – 75 W

Height

< 700 mm

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Coverage

360 °

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With movement sensor

Yes

Unified Glare Ratio (UGR)

1

Conductor cross section

2.5 mm²

Light type

Wandleuchte

Protection class

I

Mounting Type

Wand

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

With light sensor

Yes

Photobiological safety according to EN 62471

RG1

Number of poles

3

Style

Landhaus

Shape

Eckig
