Article number Select a color, please

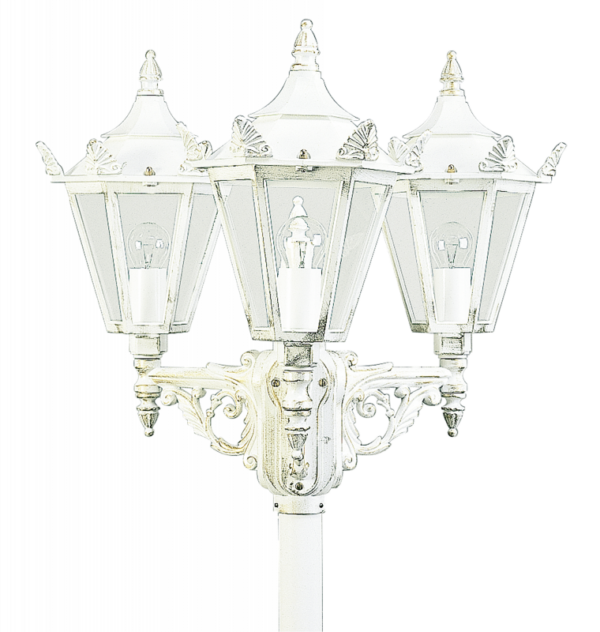

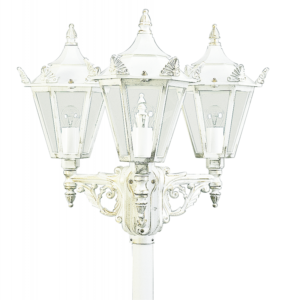

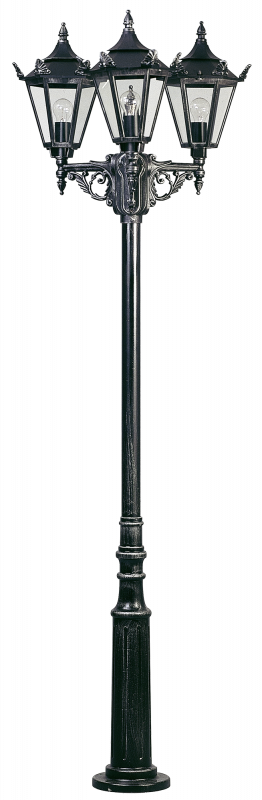

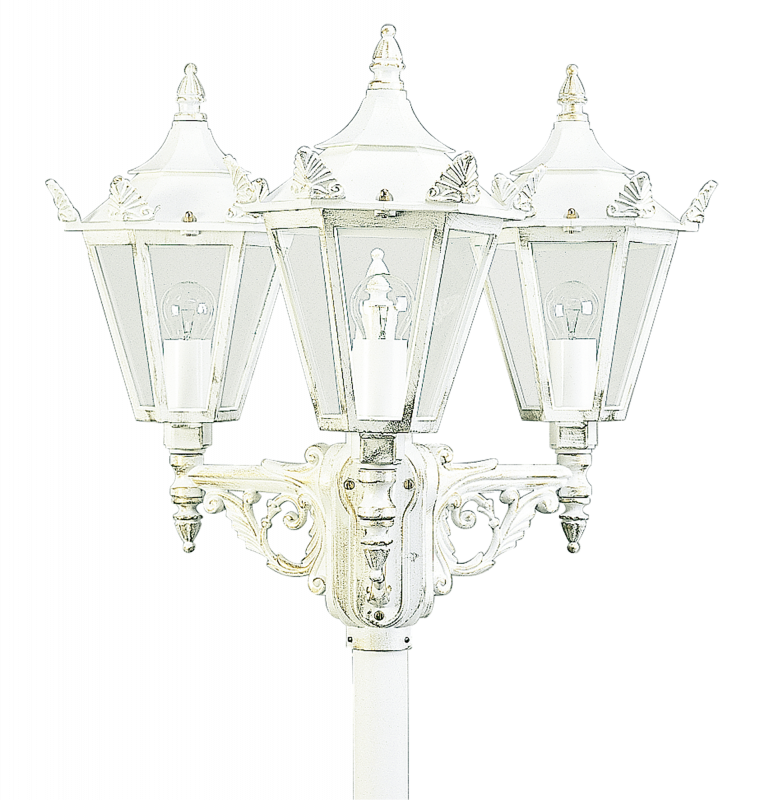

Pole light 3-light

type ..2049

1.132,70

Clear
Features
IP23 Product-Icon Luminaire has IP 23 protection.
Luminaire has IP 23 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, White-Gold
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass transparent
Pole included
Ja
Weight N/A
Mounting Type

Post top

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Light type

Standleuchte

Suitable for number of lamps

3

Dimming phase cut-on

Yes

Dimming phase cut-off

Yes

Power factor

1

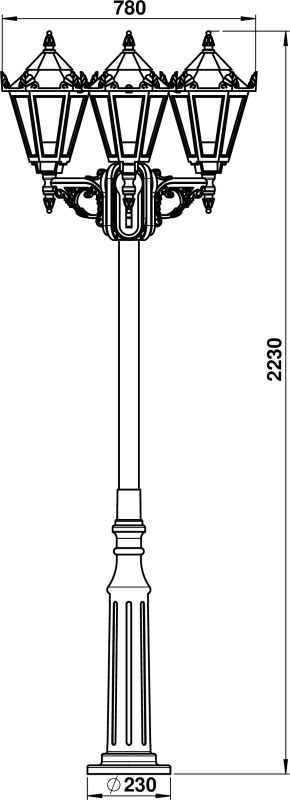

Diameter

780 mm

Height/depth

2230 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Style

Landhaus

Cable length

0 m

Height

> 1700 mm

Max. system power

225 W

Type of wiring

Suitable for through wiring

Number of poles

3

Connection type

Screwed terminal

No dim function

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP23

Surface protection

Lacquered

Protection class

I

Shape

Eckig
