Article number Select a color, please

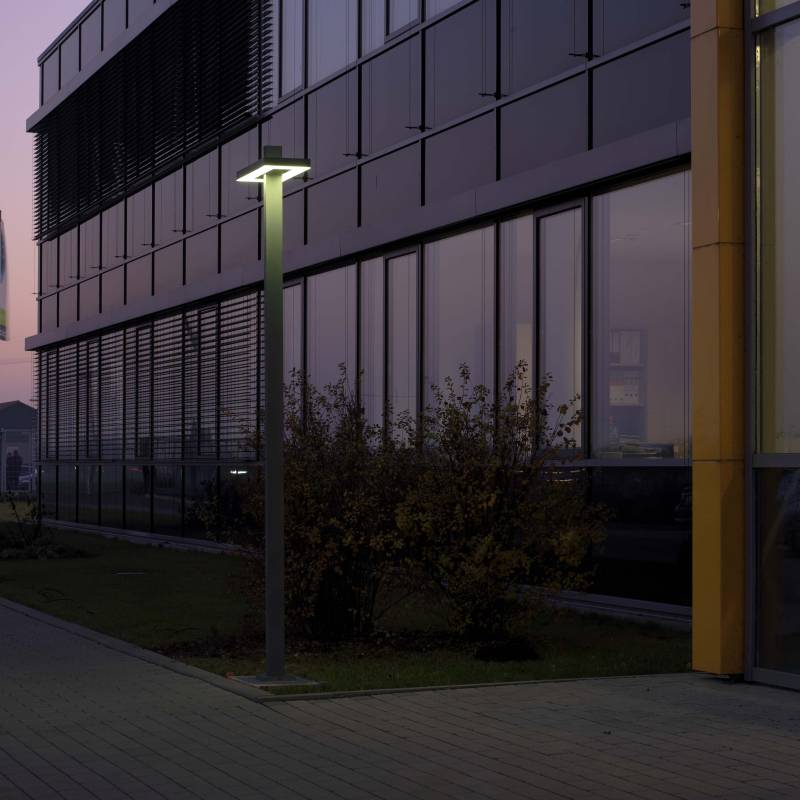

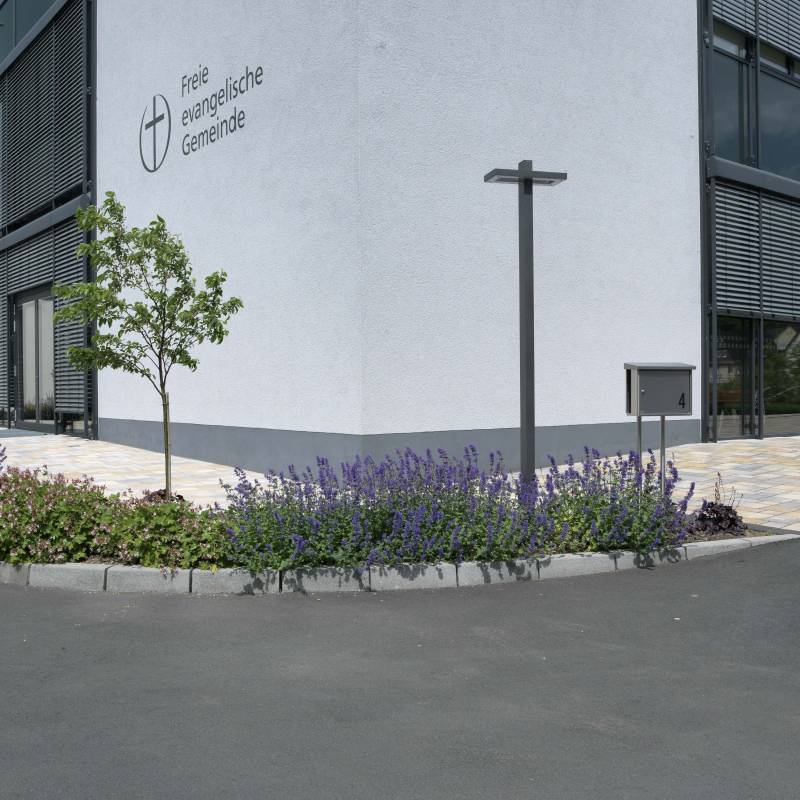

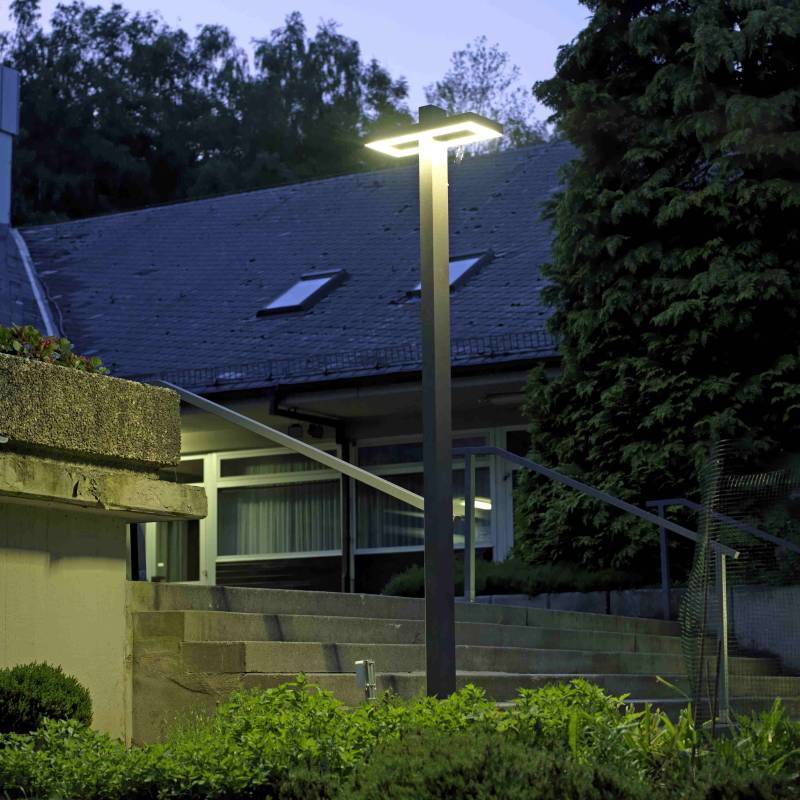

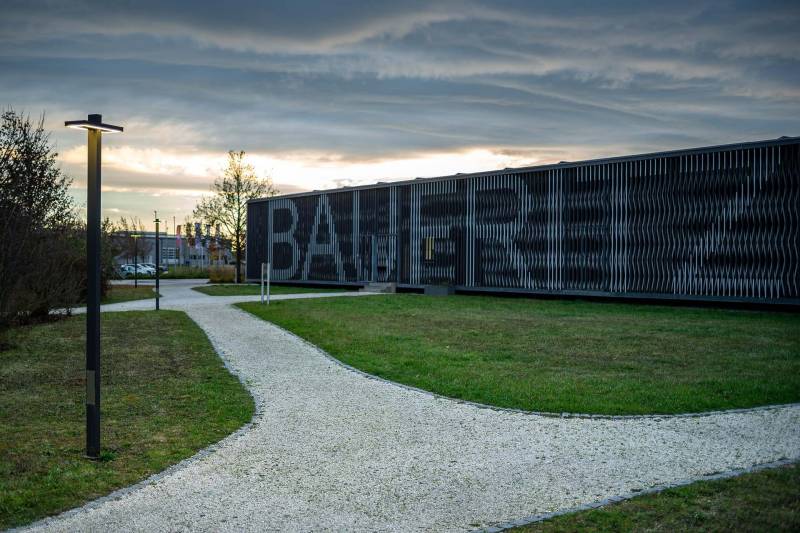

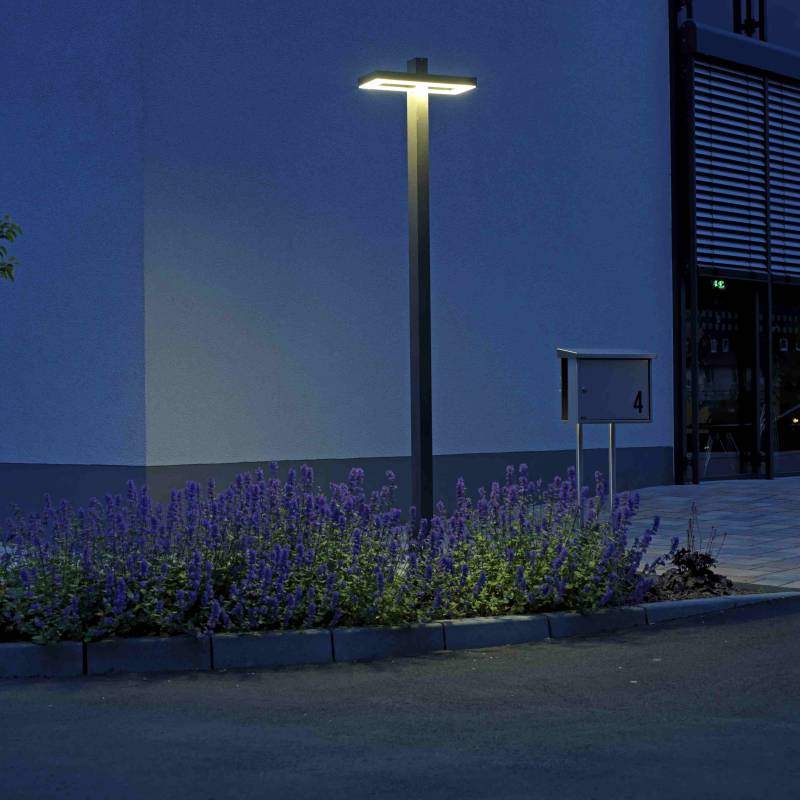

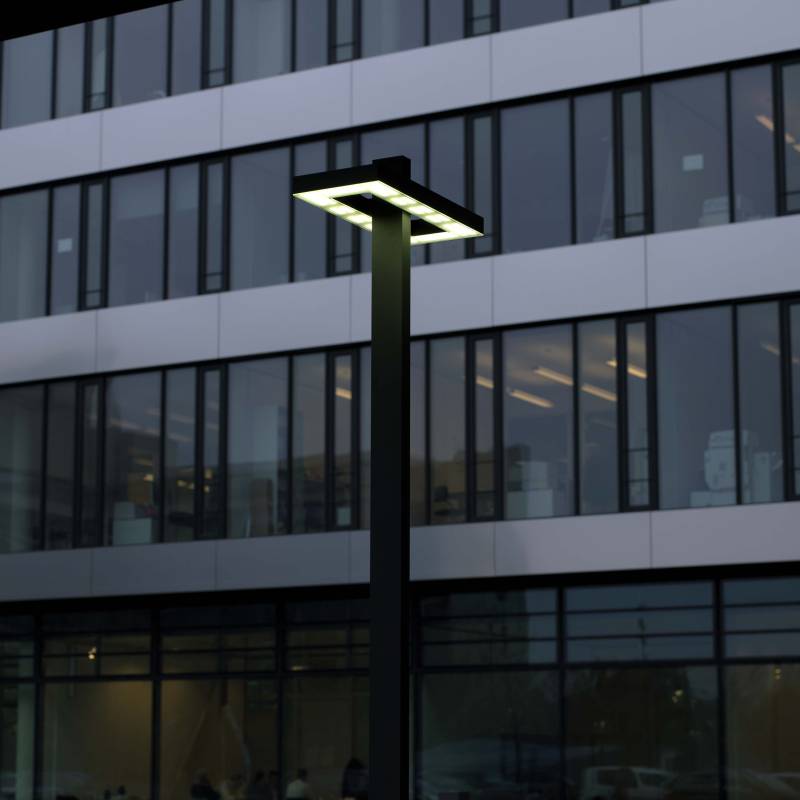

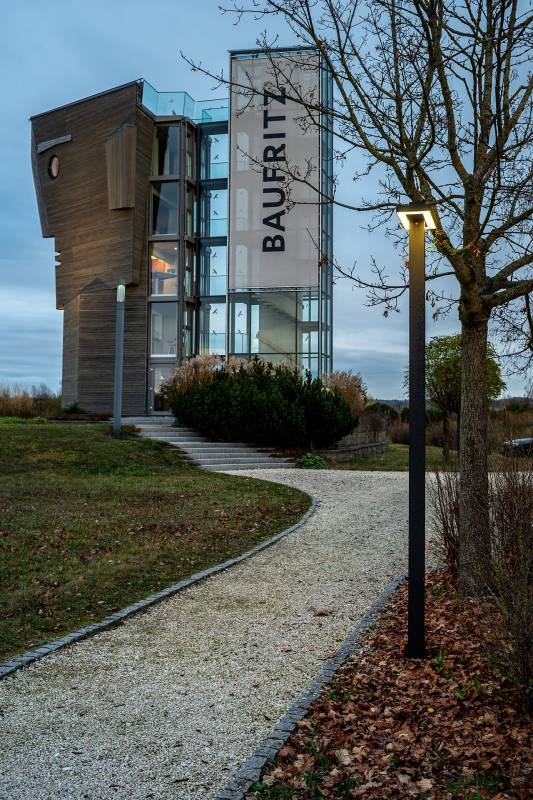

Pole light

type ..0863

1.563,001.797,10

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing

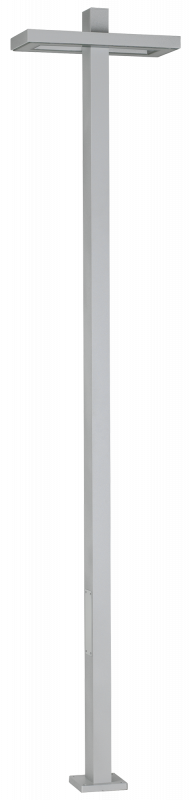

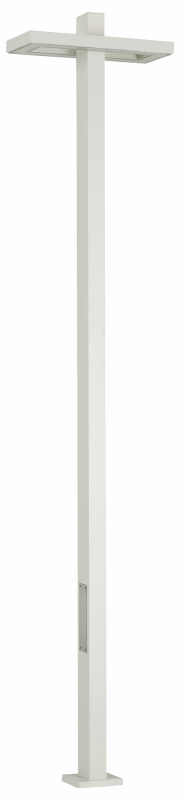

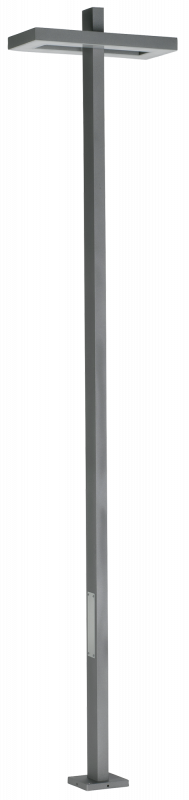

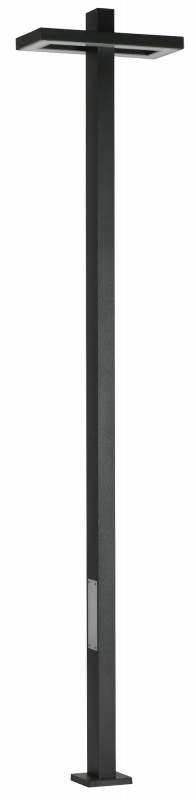

Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
37 W, 38 W
Rated luminous flux according to IEC 62722-2-1
3050 lm
Colour temperature
3000 K
Material cover
Glass structured
Pole included
Ja
Weight N/A
Mounting Type

Post top

Cable length

0 m

With control gear

Yes

Conductor cross section

2.5 mm²

Dimming phase cut-off

Yes

Connection type

Screwed terminal

Suitable for number of lamps

1

Surface protection

Lacquered

Voltage type

AC

Height/depth

2500 mm

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Highest energy efficiency class of the exchangeable lamp

A+

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

37 W, 38 W

Colour of light

White

Colour rendering index CRI

80-89

Lowest energy efficiency class of the exchangeable lamp

E

Length

500 mm

Width

220 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Degree of protection (IP)

IP54

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light type

Standleuchte

Height

> 1700 mm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 24 KB

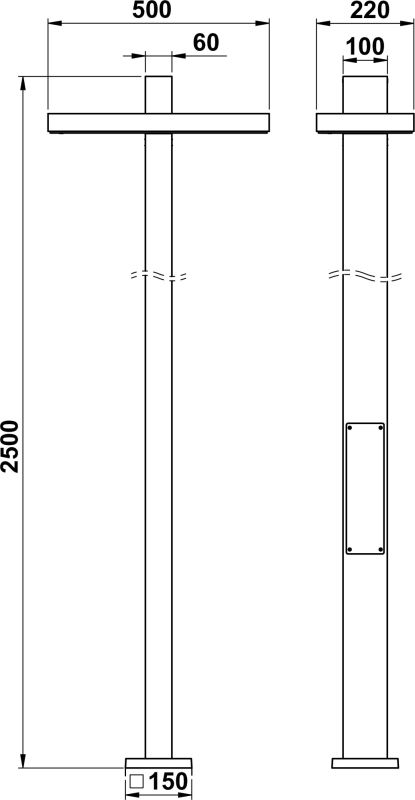

Dimensioned drawing
PDF | 57 KB
Light distribution curve - Eulumdat/LDT
LDT | 11 KB
Offertext
For: 620863
TXT | 306 B
Offertext
For: 660863
TXT | 311 B
Offertext
For: 680863
TXT | 311 B
Offertext
For: 690863
TXT | 399 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220443 - G 443, single-pane safety glass show
Accessories
690011 - Earth mounting base type ..0011 show
