Data sheet

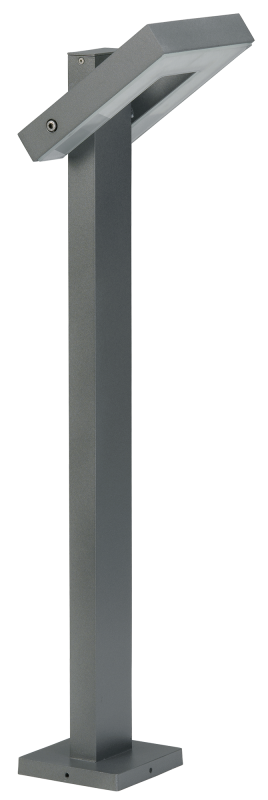

Bollard light Anthracite Product Image Article 622091

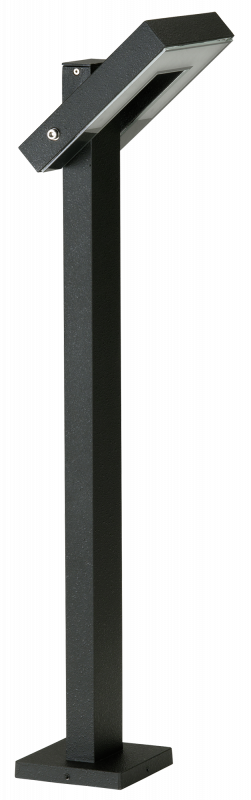

Bollard light Black Product Image Article 662091

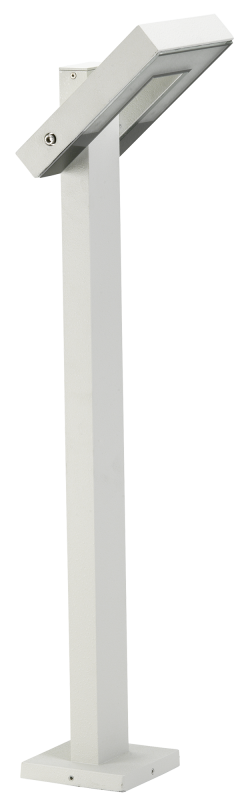

Bollard light White Product Image Article 682091

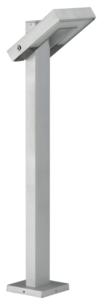

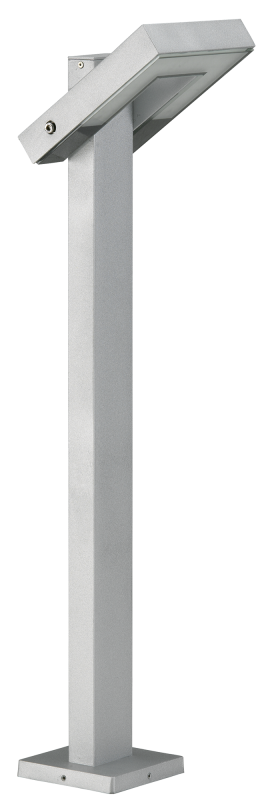

Bollard light Silver Product Image Article 692091

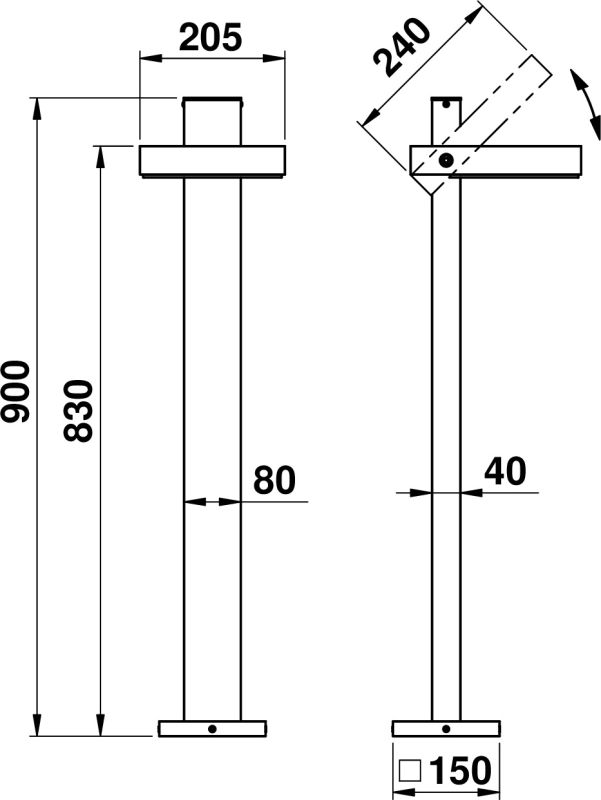

Bollard light Dimensioned drawing Article 622091, 662091, 682091, 692091
Bollard light Anthracite Product Image Article 622091
Bollard light Dimensioned drawing Article 622091, 662091, 682091, 692091
Bollard light Black Product Image Article 662091
Bollard light Dimensioned drawing Article 622091, 662091, 682091, 692091
Bollard light White Product Image Article 682091
Bollard light Dimensioned drawing Article 622091, 662091, 682091, 692091
Bollard light Silver Product Image Article 692091
Bollard light Dimensioned drawing Article 622091, 662091, 682091, 692091
Article number Select a color, please

Bollard light

type ..2091

€661,80 – €761,20

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Colour temperature
3000 K
Material cover
Glass structured
Documents and files
Assembly instruction
download PDF 32.03 KB
Dimensioned drawing
download PDF 19.79 KB
Light distribution curve - Eulumdat/LDT
download LDT 11.23 KB
Offertext
For: 622091
download TXT 310 B
Offertext
For: 662091
download TXT 314 B
Offertext
For: 682091
download TXT 317 B
Offertext
For: 692091
download TXT 315 B
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220441 - G 441, ESG glass pane show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire
Width

205 mm
Degree of protection (IP)

IP54
Surface protection

Lacquered
Highest energy efficiency class of the exchangeable lamp

A+
With base plate

Yes
Power factor

0.9
With control gear

Yes
Height/depth

900 mm
Suitable for lamp power

16 W
Max. system power

16 W
Colour of light

White
Colour temperature

3000 K
Lowest energy efficiency class of the exchangeable lamp

E
Lamp type

LED exchangeable
With light source

Yes
Suitable for number of lamps

1
Material housing

Aluminium
Energy efficiency class of the provided exchangeable built-in lamp

E
Colour rendering index CRI

80-89
Colour housing

Anthracite, Black, Silver, White
Voltage type

AC
Nominal voltage

230 V
Type of control gear

LED operating device voltage-controlled
Length

240 mm
Max. number of luminaires per miniature circuit breaker B16

20
Protection class

I
Beam angle

Open beam/diffuse
Flickering value Pst LM

1
Stroboscope effect value SVM

0.4
Material cover

Glass structured
Light output

Direct/indirect
Max. number of luminaires per miniature circuit breaker C16

30
Beam angle adjustable

Continuously variable
Type of wiring

Suitable for through wiring
Number of poles

3
Conductor cross section

2.5 mm²
Connection type

Screwed terminal
Light type

Standleuchte
Light output

2-seitig
Height

700 – 1000 mm
Exchangeable control gear

Yes
Light sharing

Symmetric
Shape

Eckig
