Article number Select a color, please

Wall light

type ..0801

364,00

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Plastic, structured
Documents and files
Assembly instruction

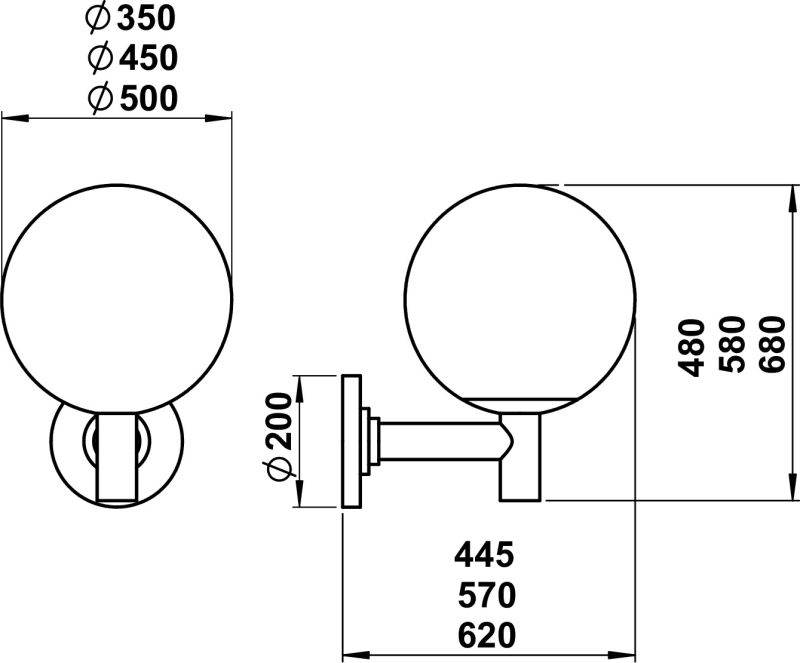

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660801
Offertext
For: 680801
Full catalog 21 / 22
Spare parts
90260075 - G 75, sphere, opal, d = 450 mm PE show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Voltage type

AC

Colour housing

Black, White

Dimming manufacturer's proprietary system

Yes

Lamp holder

E27

Material cover

Plastic, structured

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Protection class

I

Type of control gear

Not required

Nominal voltage

230 V

Material housing

Aluminium

Conductor cross section

2.5 mm²

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

450 mm

Type of wiring

Ending

Number of poles

3

Dimming phase cut-on

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Height/depth

580 mm

Length

570 mm

Degree of protection (IP)

IP44

Mounting Type

Wand

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 150 W

Max. system power

150 W

Connection type

Screwed terminal

Shape

Eckig

Light type

Wandleuchte

No dim function

Yes

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Dimming depending on control gear

Yes

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
