Article number Select a color, please

Pole light

type ..2054

275,30

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Pole included
Ja
Documents and files
Assembly instruction

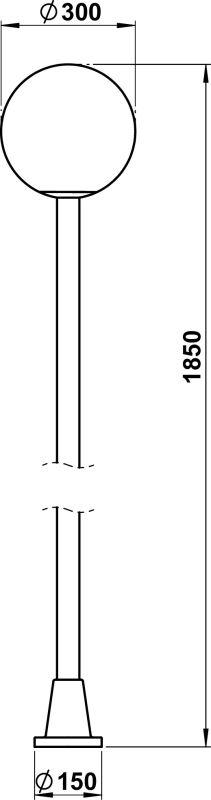

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662054
Offertext
For: 682054
Full catalog 21 / 22
Spare parts
90210070 - G 70, crystal glass ball, clear show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Mounting Type

Post top

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, White

Degree of protection (IP)

IP44

Material cover

Glass transparent

Voltage type

AC

Surface protection

Lacquered

Lamp type

HV halogen lamp

Power factor

1

Nominal voltage

230 V

Type of control gear

Not required

Diameter

300 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

No dim function

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

75 W

Protection class

I

Height/depth

1850 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Cable length

0 m

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Pole included

Ja

Shape

Eckig

Light type

Standleuchte

Height

> 1700 mm
