Data sheet
Article number
Select a color, please
Wall light
type ..0641
€256,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

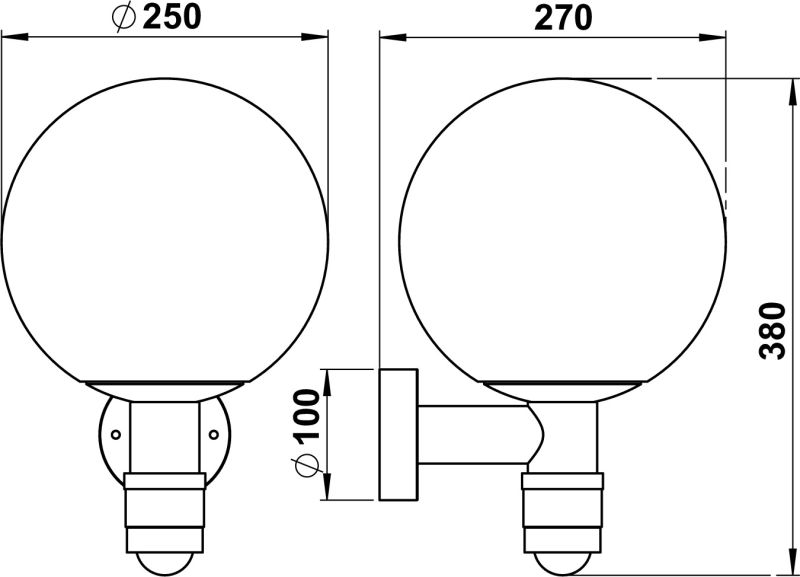

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext

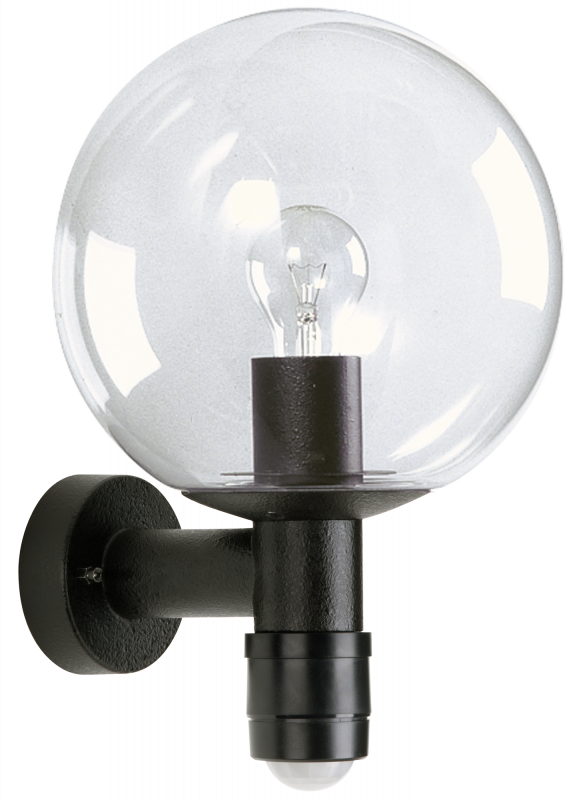

For: 660641
Offertext

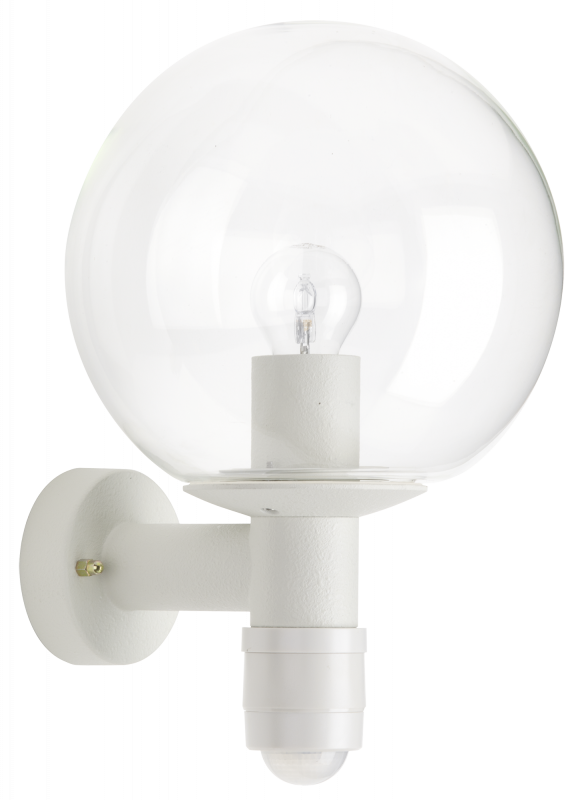

For: 680641
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Light output | Direct |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Material housing | Aluminium |
| Colour housing | Black, White |
| Material cover | Glass transparent |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Nominal voltage | 230 V |
| Dimming depending on control gear | Yes |
| Power factor | 1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| Dimming phase cut-on | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-off | Yes |
| Voltage type | AC |
| Degree of protection (IP) | IP44 |
| Length | 140 mm |
| Type of control gear | Not required |
| Connection type | Screwed terminal |
| Suitable for surface mounting | Yes |
| Suitable for lamp power | 1 – 75 W |
| Surface protection housing | Lacquered |
| Light sharing | Symmetric |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Width | 350 mm |
| Max. system power | 75 W |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| No dim function | Yes |
| Height/depth | 300 mm |
| With light sensor | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Type of wiring | Ending |
| Beam angle | Open beam/diffuse |
| Coverage | 360 ° |
| With movement sensor | Yes |
| Shape | Eckig |
| Photobiological safety according to EN 62471 | RG1 |
| Style | Modern |
