Article number 660808

Post-top luminaire

type ..0808

993,30

Description

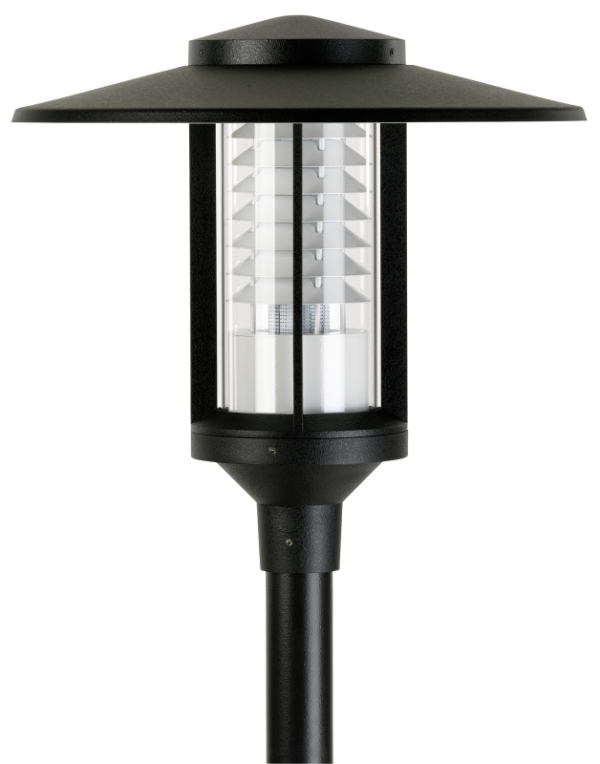

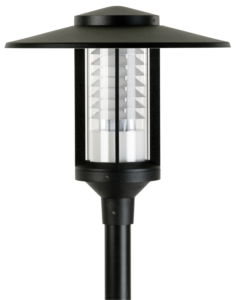

Albert post-top lamp 660808
with sloping roof and skylight attachment, made of corrosion-resistant cast aluminium, with highly transparent clear Plexiglas and reflector of highly specular anodised aluminium. 1 x LED 52 W, warm white 3000 K, 4150lm, for pole spigot diameter 76 mm, insertion depth 130 : black – protection class IP 54 – protection class : d 650 x 695 mm

Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
110 W
Rated luminous flux acc. IEC 62722-2-1
4150 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Suitable for top end size
76 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 76mm.

Documents and files
Assembly instruction

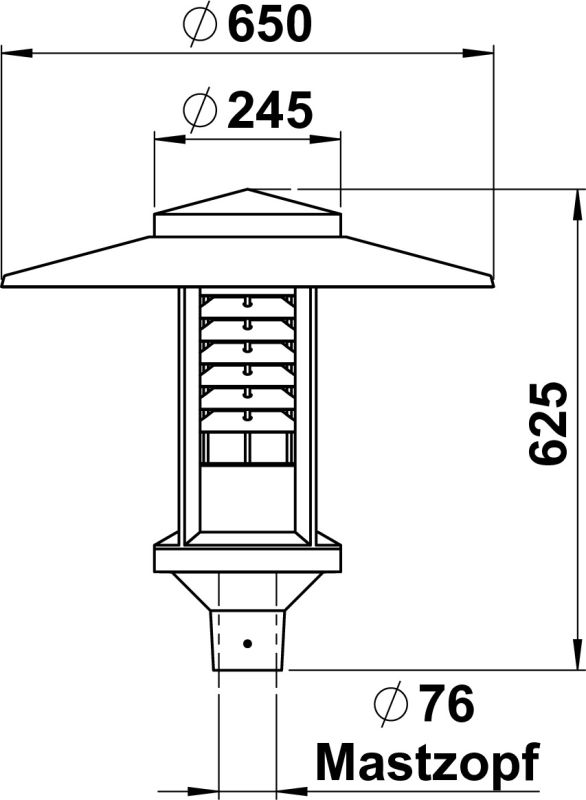

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
10260250 - G-250, acrylic 180 x 4 mm, 463 mm show
Accessories
661008 - Wall bracket black type ..1008 show
661009 - Mast top black type ..1009 show
661010 - Mast top black type ..1010 show

Additional information

Weight 14.60 kg
Mounting Type

Post top

Type of control gear

LED operating device current-controlled

Control gear included

Yes

No dim function

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Black

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

230 V

Power factor

0.9

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Number of poles

3

Conductor cross section

2.5 mm²

Light distributor

Refractor lens

Cable length

0 m

Energy efficiency class of the provided exchangeable built-in lamp

A+

Suitable for lamp power

110 W

Max. system power

110 W

Rated luminous flux acc. IEC 62722-2-1

4150 lm

Colour of light

White

Colour temperature

3000 K

Height/depth

625 mm

Colour rendering index CRI

80-89

Diameter

650 mm

Type of wiring

Suitable for through wiring

Connection type

Screwed terminal

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Degree of protection (IP)

IP54

Suitable for top end size

76 mm

Protection class

I

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Light type

Mastaufsatzleuchte

Height

< 700 mm
