Data sheet

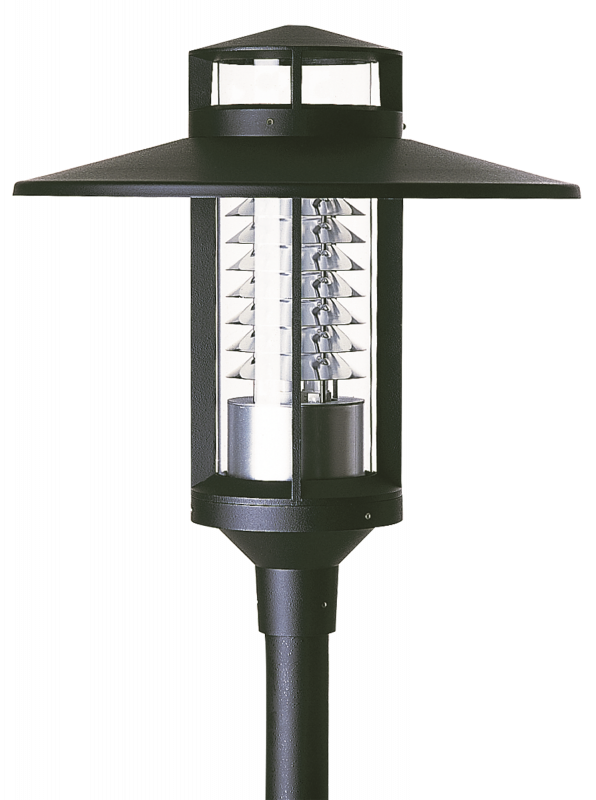

Post-top luminaire Black Product Image Article 660809

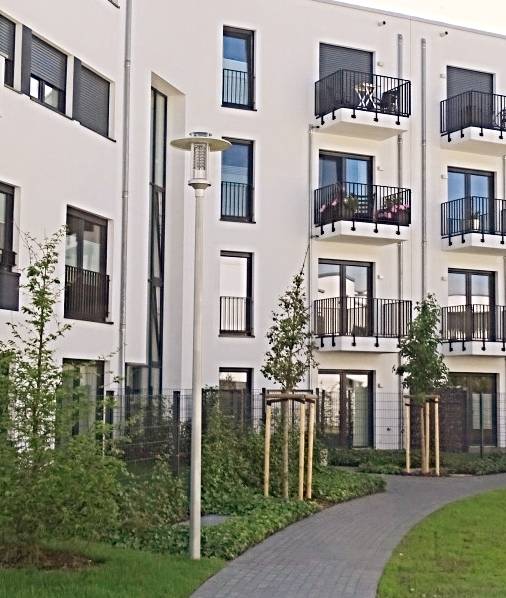

Post-top luminaire Black Milieu picture Article 660809

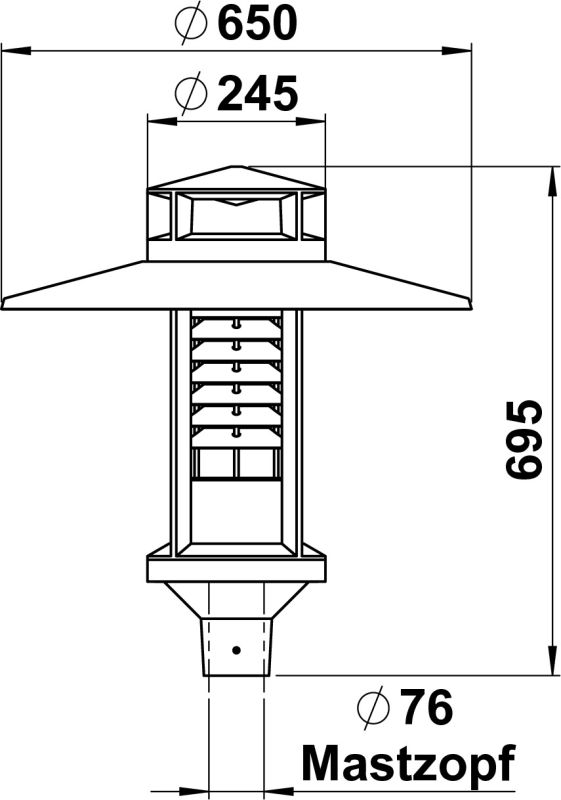

Post-top luminaire Black Dimensioned drawing Article 660809
Post-top luminaire Black Product Image Article 660809
Post-top luminaire Black Milieu picture Article 660809
Post-top luminaire Black Dimensioned drawing Article 660809
Article number 660809

Post-top luminaire

type ..0809

€1.174,50

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert post-top lamp 660809
with sloping roof and skylight attachment, made of corrosion-resistant cast aluminium, with highly transparent clear Plexiglas and reflector of highly specular anodised aluminium. 1 x LED 52 W, warm white 3000 K, 4150lm, for pole spigot diameter 76 mm, insertion depth 130 : black – protection class IP 54 – protection class : d 650 x 695 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
110 W
Rated luminous flux according to IEC 62722-2-1
4150 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Suitable for spigot size
76 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 76mm.

Find suitable light poles now
Documents and files
Assembly instruction
download PDF 75.8 KB
Dimensioned drawing
download PDF 124.23 KB
Light distribution curve - Eulumdat/LDT
download LDT 4.79 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
10260255 - G-255, acrylic,180 x 4 mm, 536 mm show
Accessories
661008 - Wall bracket black type ..1008 show
661009 - Mast top black type ..1009 show
661010 - Mast top black type ..1010 show

Additional information

Weight 15,90 kg
Light distributor

Refractor lens
Power factor

0.9
Material cover

Plastic, transparent
With control gear

Yes
Type of control gear

LED operating device current-controlled
Lamp type

LED exchangeable
No dim function

Yes
With light source

Yes
Suitable for number of lamps

1
Material housing

Aluminium
Number of poles

3
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Voltage type

AC/DC
Nominal voltage

230 V
Colour housing

Black
Surface protection

Lacquered
Height

< 700 mm
Light type

Mastaufsatzleuchte
Energy efficiency class of the provided exchangeable built-in lamp

E
Suitable for lamp power

110 W
Max. system power

110 W
Rated luminous flux according to IEC 62722-2-1

4150 lm
Colour of light

White
Colour temperature

3000 K
Mounting Type

Post top
Colour rendering index CRI

80-89
Diameter

650 mm
Type of wiring

Suitable for through wiring
Connection type

Screwed terminal
Highest energy efficiency class of the exchangeable lamp

A+
Cable length

0 m
Height/depth

625 mm
Degree of protection (IP)

IP54
Suitable for spigot size

76 mm
Protection class

I
Lowest energy efficiency class of the exchangeable lamp

E
Exchangeable control gear

Yes
Colour consistency (McAdam ellipse)

SDCM3
Conductor cross section

2.5 mm²
Shape

Eckig
