Article number Select a color, please

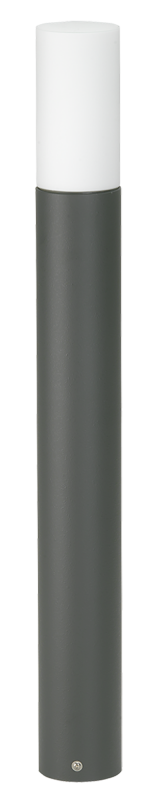

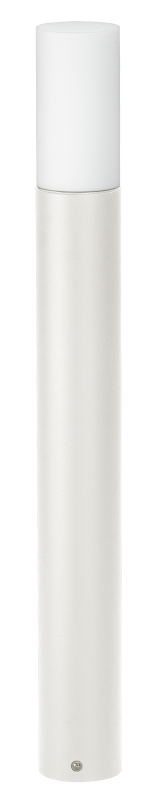

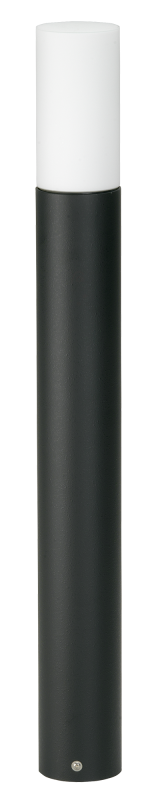

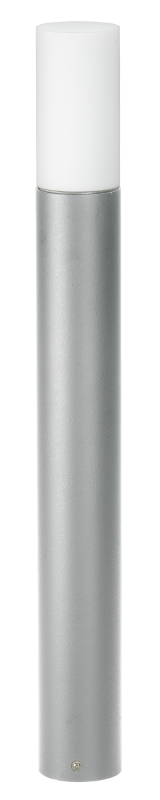

Bollard light

type ..3077

265,00304,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

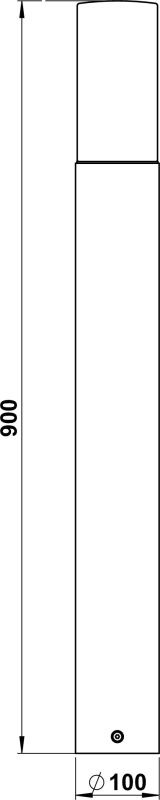

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 623077
Offertext
For: 663077
Offertext
For: 683077
Offertext
For: 693077
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Surface protection

Lacquered

Material cover

Glass opal

Colour housing

Anthracite, Black, Silver, White

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Lamp type

LED exchangeable

With base plate

Yes

Type of wiring

Suitable for through wiring

Connection type

Screwed terminal

Beam angle

Open beam/diffuse

Power factor

1

Height/depth

900 mm

Diameter

100 mm

Suitable for lamp power

1 – 75 W

Number of poles

3

Conductor cross section

2.5 mm²

Protection class

I

Shape

Eckig

Light type

Standleuchte

Light output

2-seitig

Max. system power

75 W

Light sharing

Symmetric

Light output

Direct/indirect

Height

700 – 1000 mm
