Data sheet
Article number 692147

Recessed ceiling spotlight

type ..2147

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

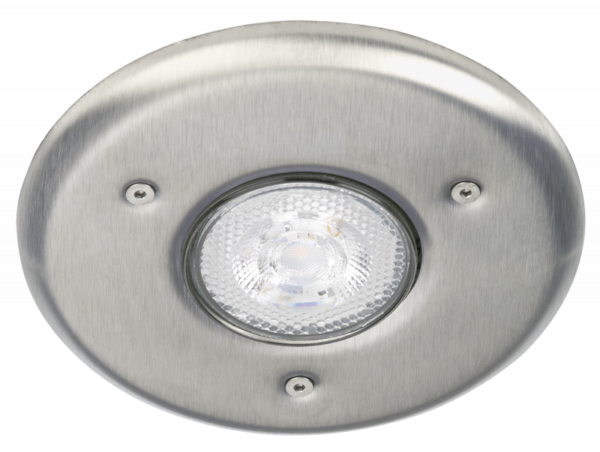

Albert recessed ceiling spotlight 692147 made of corrosion-resistant cast aluminium, cover ring made of stainless steel. 1 x PAR 20 50 W, socket E27, mounting hole d 88 mm, protection class IP 23 – protection class : d 155 x 100 mm.

Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction
download PDF 32.77 KB

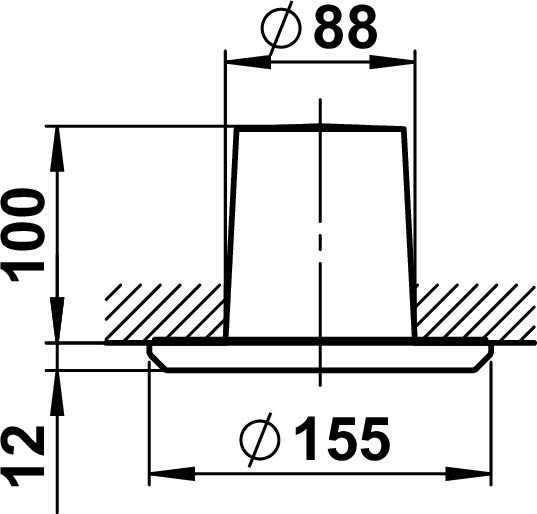

Dimensioned drawing
download PDF 32.66 KB
Light distribution curve
download LDT 2.17 KB
Full catalog 21 / 22
download PDF 38.74 MB

Additional information

Weight 0,70 kg
Nominal voltage

230 V
Suitable for built-in mounting

Yes
Colour housing

Stainless steel
Material housing

Stainless steel
Suitable for ceiling mounting

Yes
Lamp type

HV halogen lamp
Height/depth

12 mm
Beam angle

Medium beam 21-40°
Dimming depending on control gear

Yes
Lamp holder

E27
Voltage type

AC
Type of control gear

Not required
Adjustability

Not adjustable
Suitable for number of lamps

1
Light sharing

Symmetric
Material cover

Glass transparent
Suitable for pedestal/floor mounting

Yes
Suitable for lamp power

50 W
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Number of poles

3
Dimming phase cut-off

Yes
Protection class

I
Light output

Direct
Type of wiring

Ending
Luminous flux

0 – 3000 lm
Degree of protection (IP)

IP23
Power factor

1
Built-in height/depth

100 mm
No dim function

Yes
Max. system power

50 W
Conductor cross section

2.5 mm²
Connectable conductor cross section

0.75 – 2.5 mm²
Connection type

Screwed terminal
Outer diameter

155 mm
Shape

Angular, Eckig
Mounting Type

Decke
Light output

1-seitig
Height

< 700 mm
Built-in diameter

88 mm
Unified Glare Ratio (UGR)

1
