Article number Select a color, please

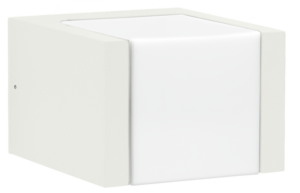

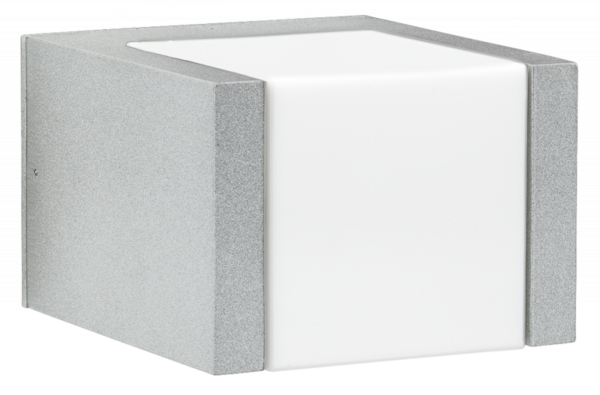

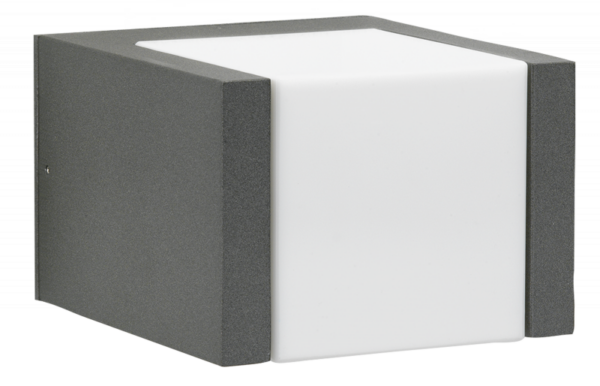

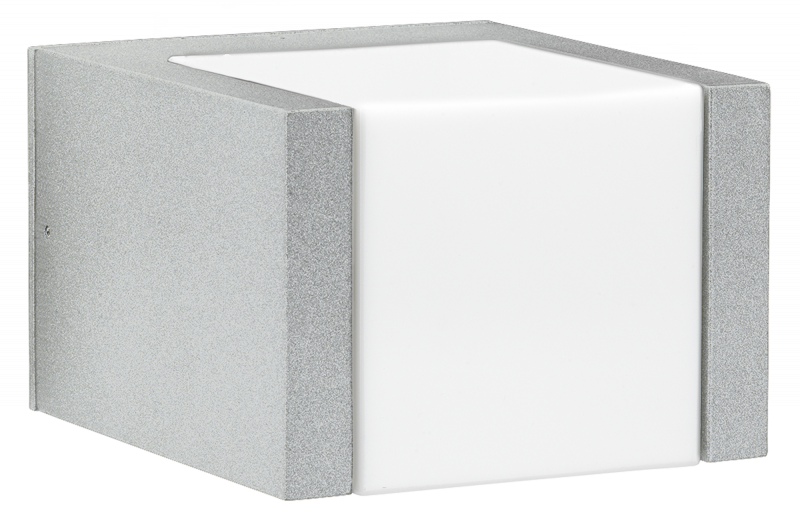

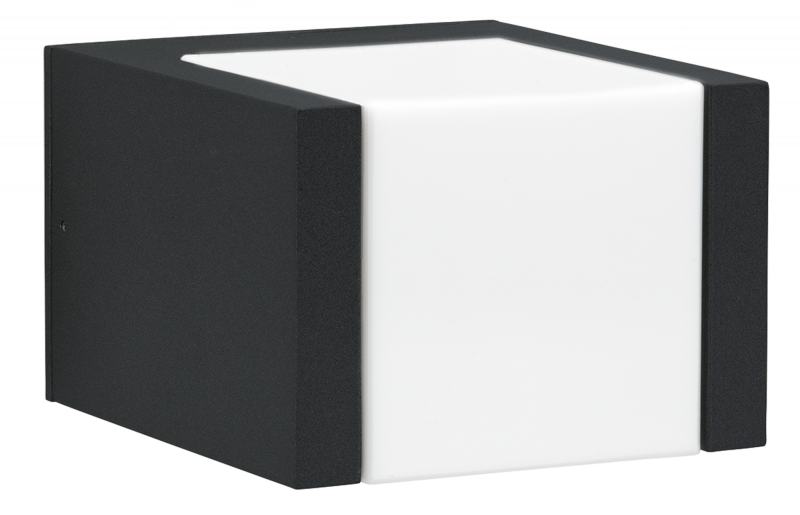

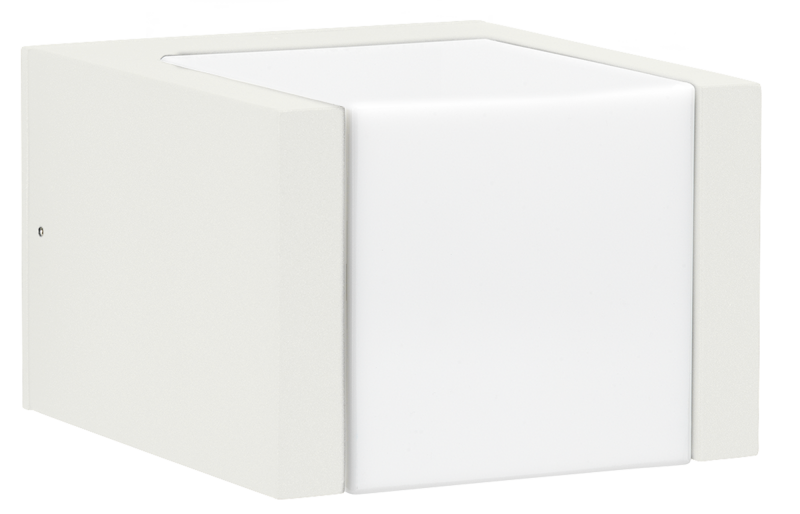

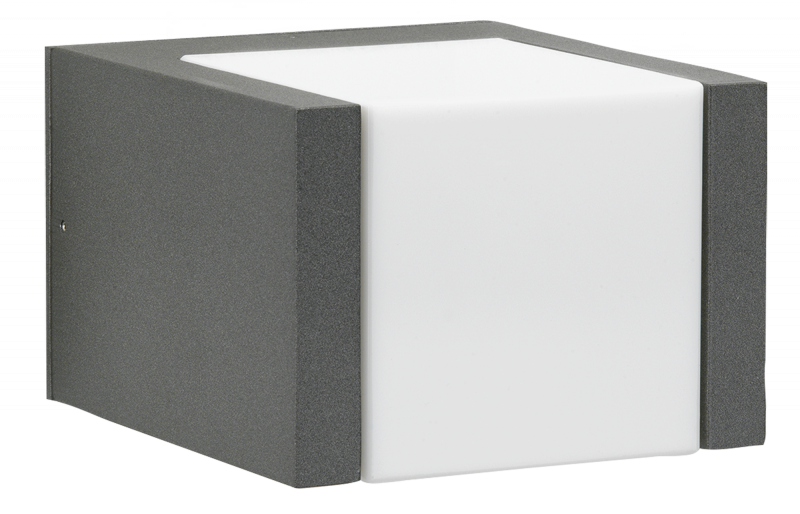

Wall and ceiling light

type ..0332

243,90280,60

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Suitable for ceiling mounting

Yes

Colour rendering index CRI

80-89

Suitable for number of lamps

1

Suitable for surface mounting

Yes

Max. system power

5 W

Colour of light

White

Width

140 mm

Dimming depending on control gear

Yes

Dimming phase cut-off

Yes

Style

Modern

Height/depth

100 mm

Length

155 mm

Light sharing

Symmetric

No dim function

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Number of poles

3

Conductor cross section

2.5 mm²

Stroboscope effect value SVM

0.4

Connection type

Screwed terminal

Protection class

I

Degree of protection (IP)

IP54

Beam angle

Open beam/diffuse

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Light output

Direct

Power factor

0.9

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 75 KB

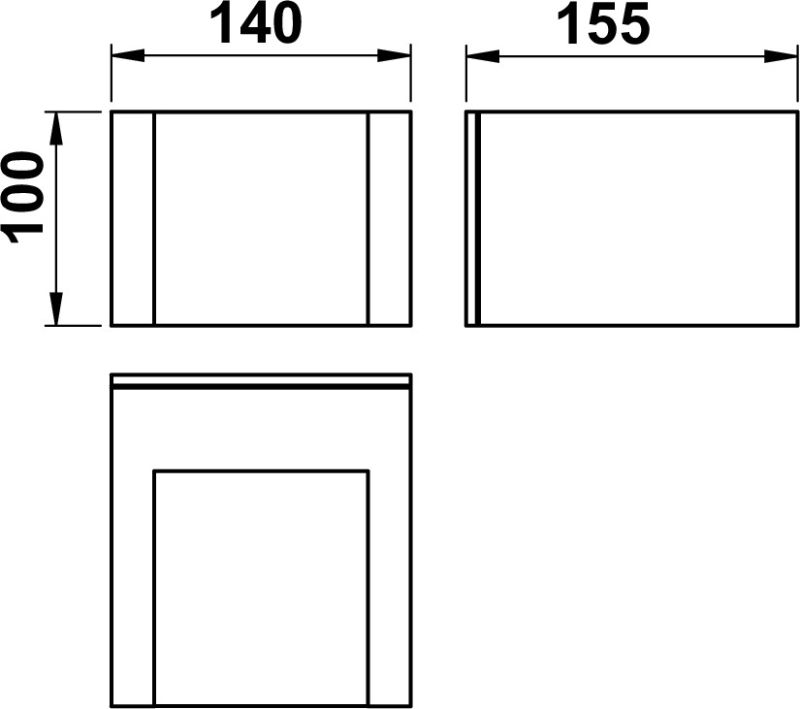

Dimensioned drawing
PDF | 92 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 620332
TXT | 268 B
Offertext
For: 660332
TXT | 263 B
Offertext
For: 680332
TXT | 263 B
Offertext
For: 690332
TXT | 247 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90260088 - G 88, PMMA square tube opal L = 112 mm show
