Article number Select a color, please

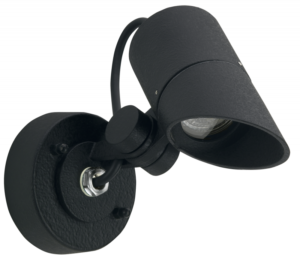

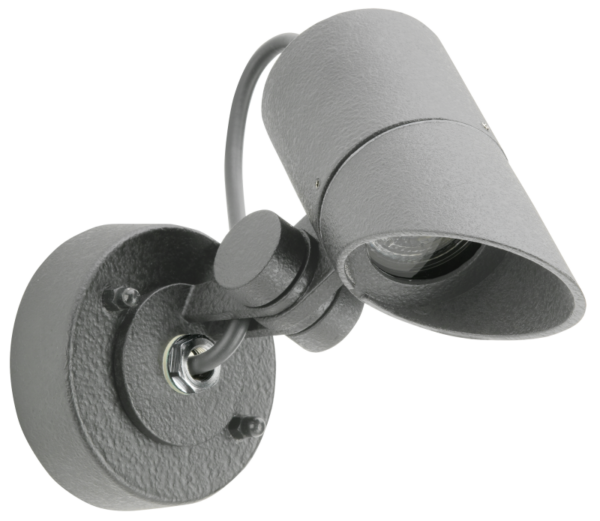

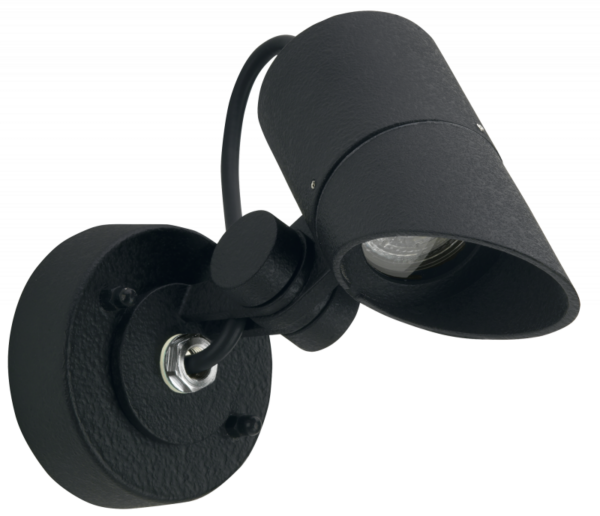

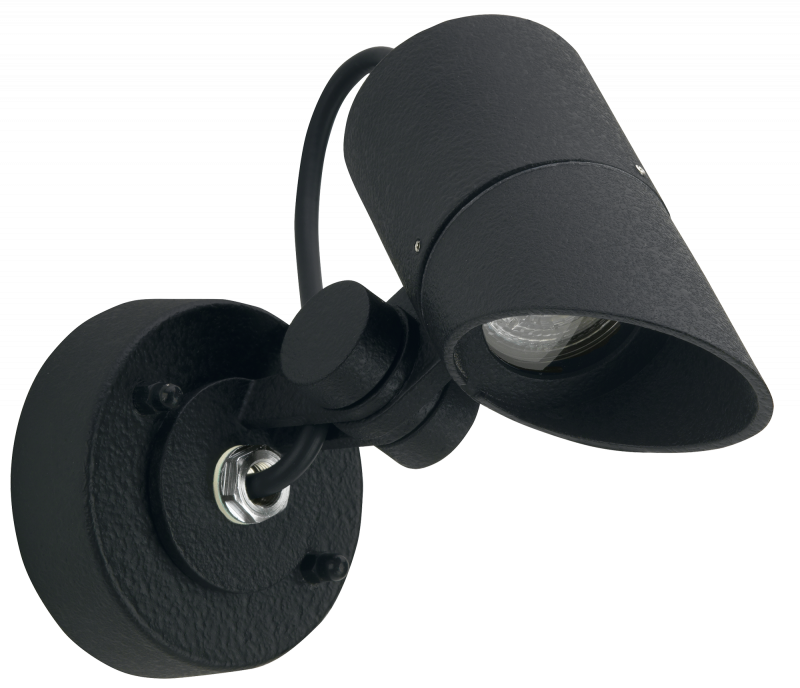

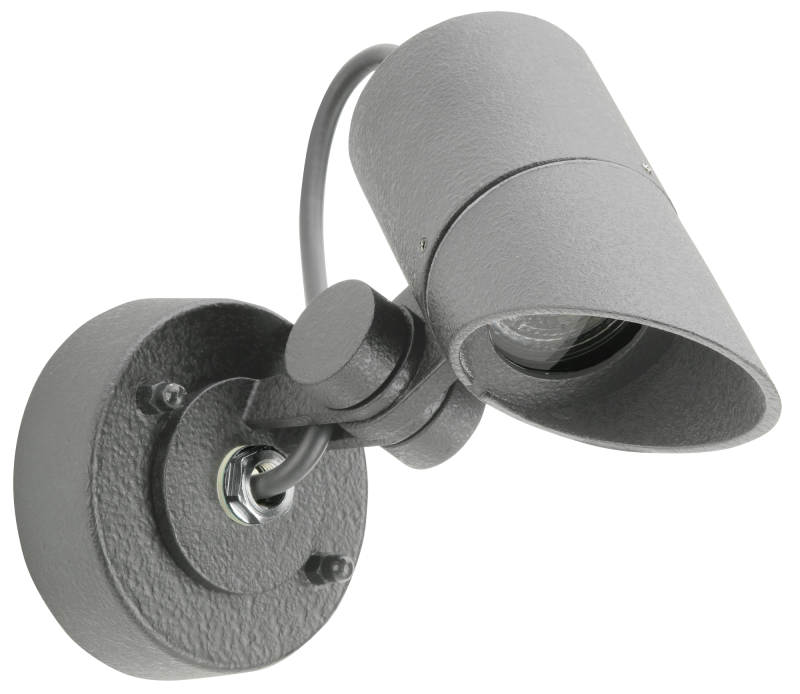

Wall floodlight

type ..2391

163,60187,80

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Suitable for number of lamps

1

Max. system power

50 W

Nominal voltage

230 V

Suitable for pedestal/floor mounting

Yes

Degree of protection (IP)

IP54

Beam angle

Medium beam 21-40°

Dimming depending on control gear

Yes

Type of control gear

Not required

Adjustability

Rotating and swivelling

Suitable for ceiling mounting

Yes

Surface protection

Lacquered

Length

155 mm

Outer diameter

70 mm

Voltage type

AC

Power factor

1

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

Dimming phase cut-off

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light sharing

Symmetric

Number of poles

3

Light output

Direct

Luminous flux

0 – 1000 lm, 0 – 3000 lm

Type of wiring

Ending

Conductor cross section

2.5 mm²

No dim function

Yes

Height/depth

130 mm

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Protection class

I

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 91 KB

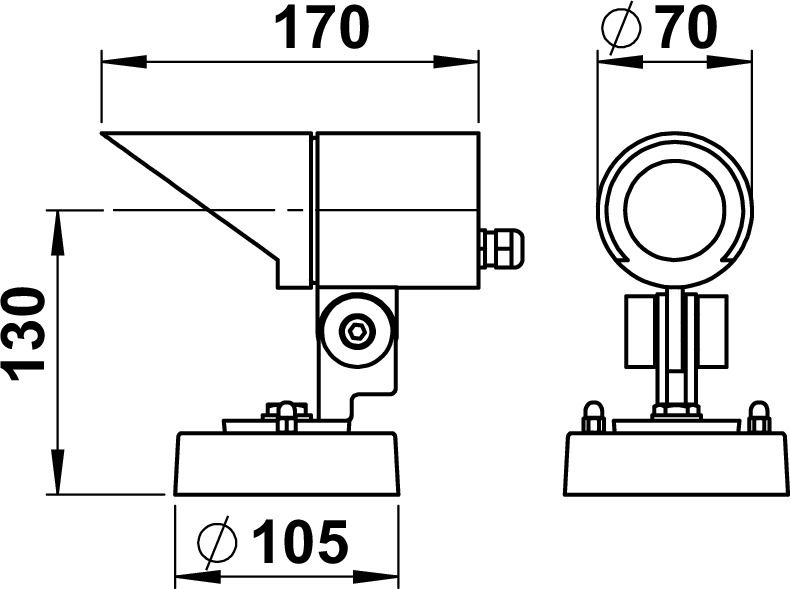

Dimensioned drawing
PDF | 111 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 622391
TXT | 273 B
Offertext
For: 662391
TXT | 268 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220165 - G 165, borosilicate round discs show
Accessories
621005 - Corner bracket round type ..1005, Anthracite
Für: 622391
show
661005 - Corner bracket round type ..1005, Black
Für: 662391
show
