Data sheet
Article number 662103
Socket spike
type ..2103
€164,90
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

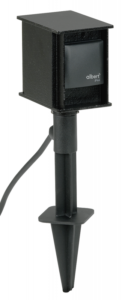

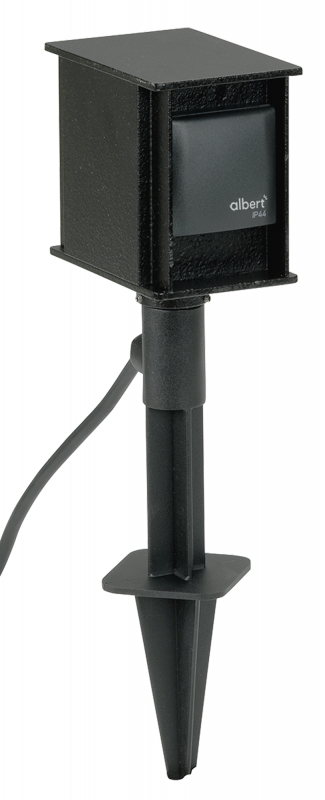

Albert socket spike 662103 with 2 protective contact sockets 16 A / 250 Volt as well as ground spike and2,500 mm connection cable incl. plug. Made of corrosion-resistant cast aluminium, colour: black Protection class IP 44, mains plug IP X4 – Protection class : 80 x 405 x 120 mm
Colour
Black
Documents and files
Assembly instruction

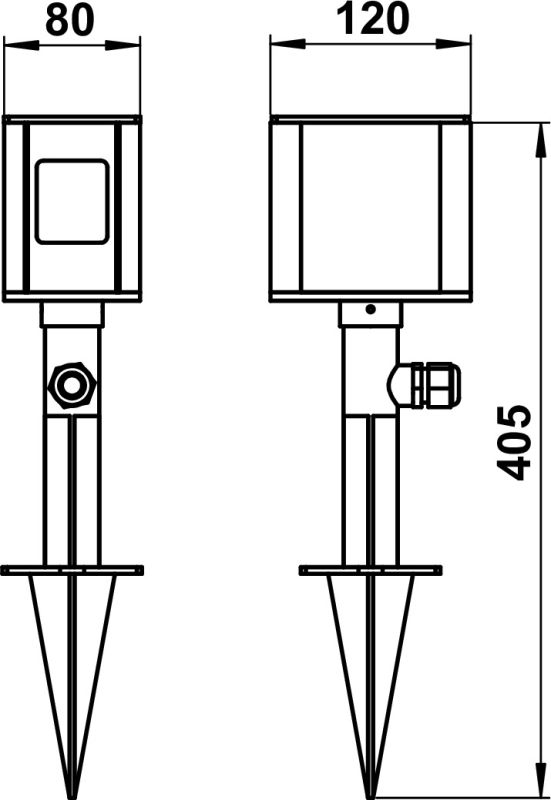

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 1,10 kg |
|---|---|
| Colour | Black |
| Number of installation boxes | 0 |
| Suitable for degree of protection (IP) | IP44 |
| Depth | 120 mm |
| Height | 405 mm |
| Width | 80 mm |
| Surface finishing | Matt |
| Assembly | Bestückt |
| Number of socket outlets | 2 |
| Surface protection | Lacquered |
| Material quality | Aluminium |
| Material | Metal |
| RAL-number (similar) | 9005 |
| Shape | Eckig |
Related products
-
Socket spike type ..2104excl. 19% VAT
-

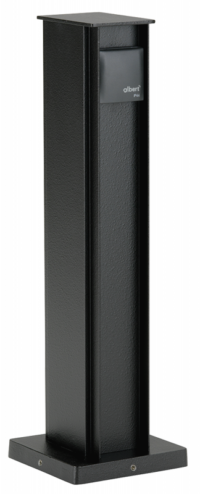

Socket column type ..2105excl. 19% VAT
-
