Data sheet

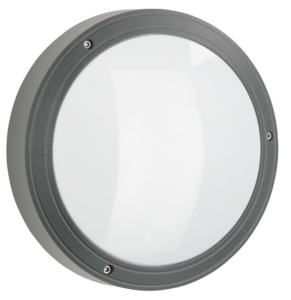

Wall and ceiling luminaire, with HF presence detector Anthracite Product Image Article 626438

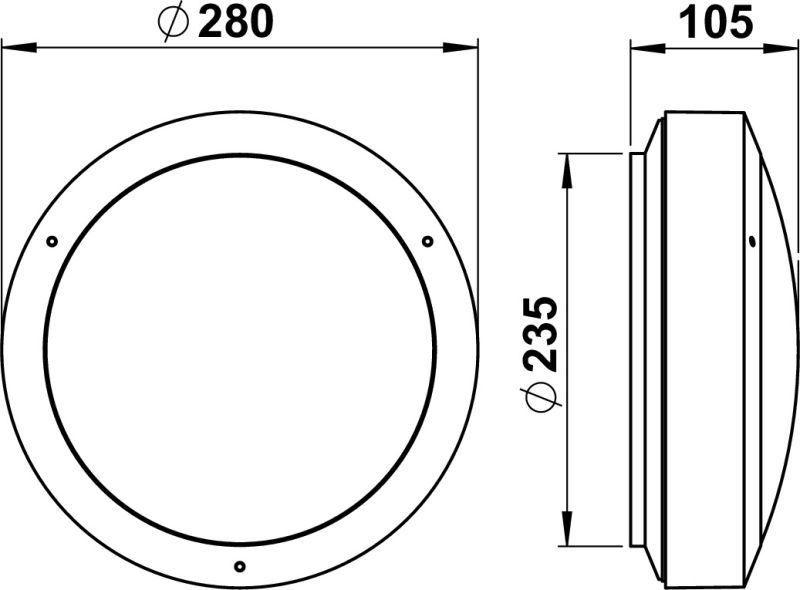

Wall and ceiling luminaire, with HF presence detector Anthracite Dimensioned drawing Article 626438

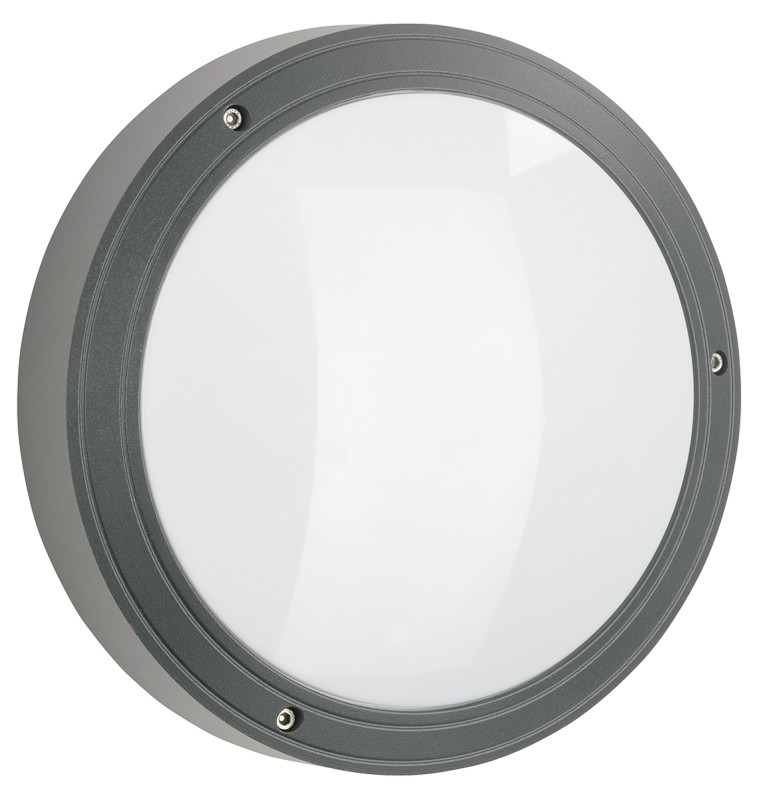

Wall and ceiling luminaire, with HF presence detector Anthracite Product Image Article 626438
Wall and ceiling luminaire, with HF presence detector Anthracite Dimensioned drawing Article 626438
Article number 626438

Wall and ceiling luminaire, with HF presence detector

type ..6438

€424,50

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Colour: anthracite, 1 x LED 13 W, 1500 lm, aluminium casting, light colour warm white, 3000 K, acrylic glass opal

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Impact resistant luminaire cover Product-Icon The luminaire cover is impact resistant IK 10.
The luminaire cover is impact resistant IK 10.
Material housing
Aluminium
Colour housing
Anthracite
With movement sensor
Yes
With HF presence detector
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
14 W
Rated luminous flux according to IEC 62722-2-1
1500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction
download PDF 119.3 KB
Dimensioned drawing
download PDF 116.5 KB
Instruction manual
download PDF 454.22 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.28 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90270417 - G 417, plexiglass opal show

Additional information

Weight 3,00 kg
With light source

Yes
Height/depth

105 mm
Power factor

0.9
Number of poles

3
Suitable for ceiling mounting

Yes
Material cover

Plastic, opal
Voltage type

AC
Height

< 700 mm
Material housing

Aluminium
Suitable for surface mounting

Yes
Type of control gear

LED operating device voltage-controlled
Protection class

I
Outer diameter

280 mm
Nominal voltage

230 V
Colour rendering index CRI

80-89
With control gear

Yes
Type of wiring

Suitable for through wiring
With light sensor

Yes
Dimming depending on control gear

Yes
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Lamp type

LED exchangeable
Colour housing

Anthracite
Suitable for number of lamps

1
Rated luminous flux according to IEC 62722-2-1

1500 lm
Suitable for wall mounting

Yes
Exchangeable control gear

Yes
Suitable for lamp power

14 W
Energy efficiency class of the provided exchangeable built-in lamp

E
Colour temperature

3000 K
Degree of protection (IP)

IP65
Impact strength

IK10
Colour consistency (McAdam ellipse)

SDCM3
Photobiological safety according to EN 62471

RG1
Light sharing

Symmetric
Light output

Direct
With movement sensor

Yes
Mounting Type

Decke, Wand
Light output

1-seitig
Surface protection housing

Lacquered
No dim function

Yes
Stroboscope effect value SVM

0.4
Connection type

Screwed terminal
Beam angle

Open beam/diffuse
Max. number of luminaires per miniature circuit breaker C16

30
Max. system power

14 W
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Conductor cross section

2.5 mm²
Flickering value Pst LM

1
Coverage

360 °
Max. number of luminaires per miniature circuit breaker B16

20
Colour of light

White
Unified Glare Ratio (UGR)

1
With HF presence detector

Yes
Shape

Eckig
