Data sheet
Article number 626338
Wall and ceiling light
type ..6338
€318,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

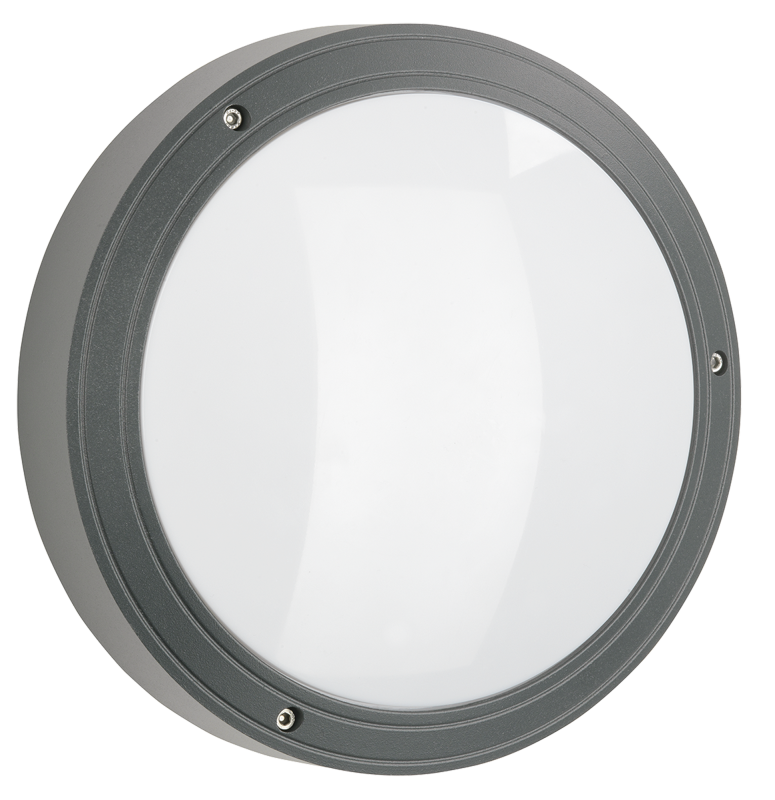

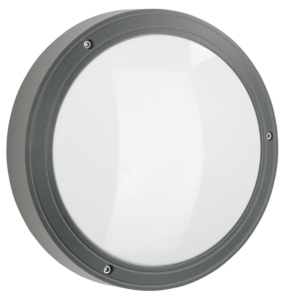

Wall and ceiling light, type no. 6338
Colour: anthracite, 1 x LED 13 W, 1500 lm, aluminium casting, light colour warm white, 3000 K, acrylic glass opal
Features
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire cover is impact resistant IK 10.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
13 W
Rated luminous flux according to IEC 62722-2-1
1500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

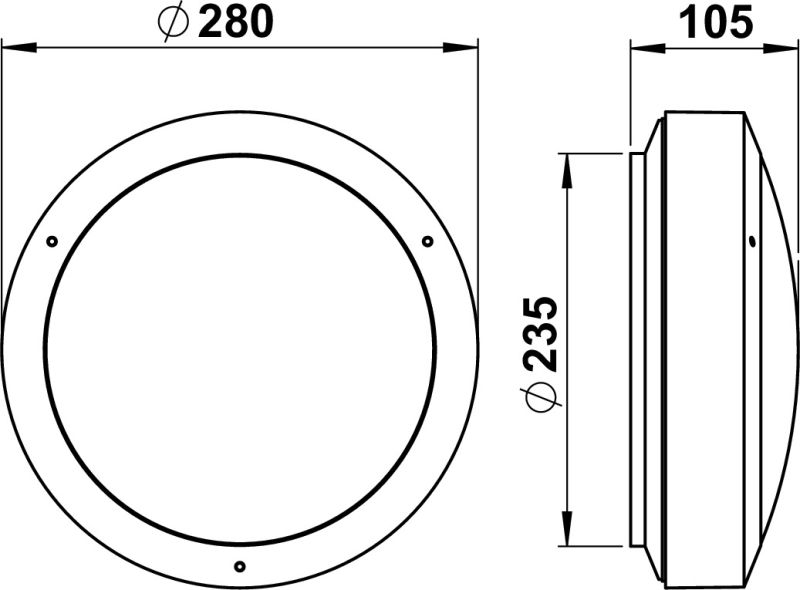

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90270417 - G 417, plexiglass opal | show |
Additional information
| Weight | 3,00 kg |
|---|---|
| Voltage type | AC |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Light output | Direct |
| Type of control gear | LED operating device voltage-controlled |
| Suitable for number of lamps | 1 |
| Protection class | I |
| Material housing | Aluminium |
| With light source | Yes |
| Suitable for ceiling mounting | Yes |
| Material cover | Plastic, opal |
| Lamp type | LED exchangeable |
| Beam angle | Open beam/diffuse |
| Light sharing | Symmetric |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Colour housing | Anthracite |
| With control gear | Yes |
| Outer diameter | 280 mm |
| Colour rendering index CRI | 80-89 |
| Suitable for lamp power | 13 W |
| Nominal voltage | 230 V |
| Photobiological safety according to EN 62471 | RG1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Impact strength | IK10 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light output | 1-seitig |
| Height/depth | 105 mm |
| Height | < 700 mm |
| Degree of protection (IP) | IP65 |
| Exchangeable control gear | Yes |
| Max. system power | 13 W |
| Surface protection housing | Lacquered |
| Rated luminous flux according to IEC 62722-2-1 | 1500 lm |
| Connection type | Screwed terminal |
| Colour temperature | 3000 K |
| Suitable for wall mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Suitable for through wiring |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Unified Glare Ratio (UGR) | 1 |
| Power factor | 0.9 |
| Mounting Type | Decke, Wand |
| Shape | Eckig |
