Article number Select a color, please

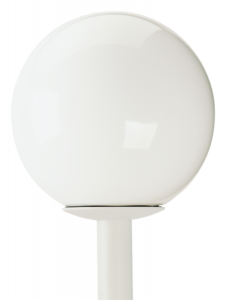

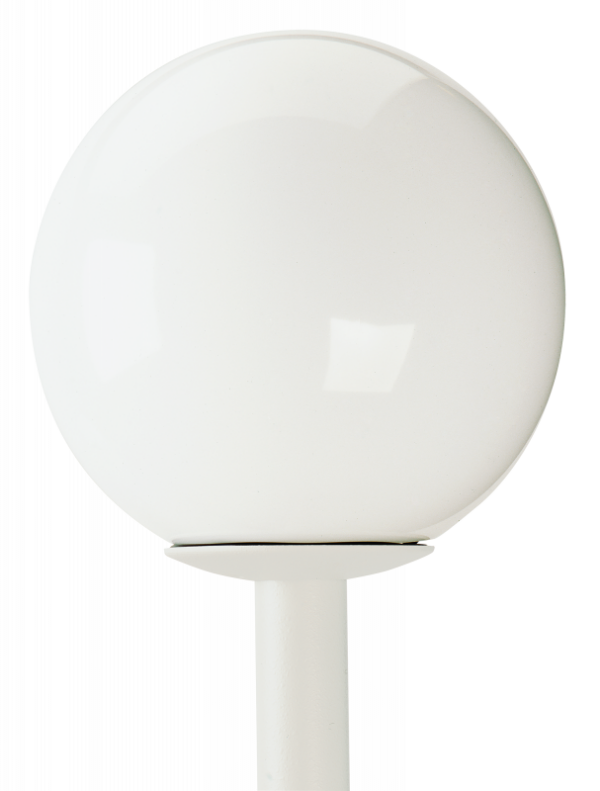

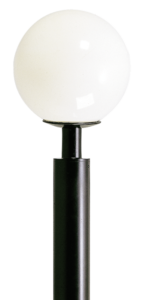

Spherical top light

type ..0858

421,40425,50

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Plastic, opal
Suitable for spigot size
60 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Documents and files
Assembly instruction

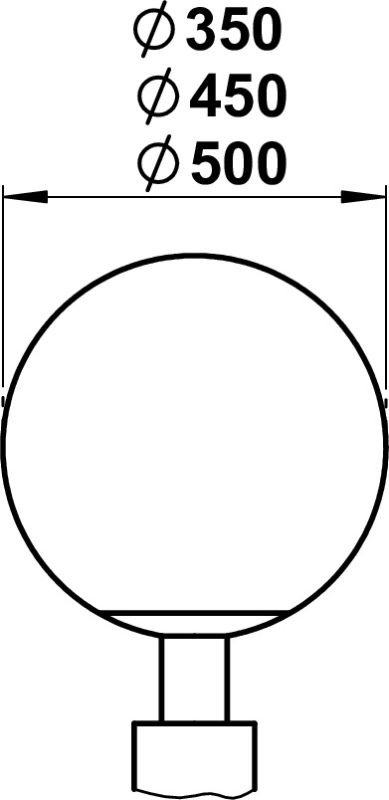

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660858
Offertext
For: 680858
Full catalog 21 / 22
Spare parts
90260076 - G76, sphere, opal, d = 500 mm PE show
Accessories
661015 - Pole attachment 2-fold type ..1015
Für: 660858
show
661016 - Pole attachment 3-fold type ..1016
Für: 660858
show
681015 - Pole attachment 2-fold type ..1015
Für: 680858
show
681016 - Pole attachment 3-fold type ..1016
Für: 680858
show
690012 - Aluminium mast type ..0012 show
690013 - Aluminium mast type ..0013 show
690014 - Aluminium mast type ..0014 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Dimming phase cut-off

Yes

Lamp type

HV halogen lamp

Dimming phase cut-on

Yes

Nominal voltage

230 V

Height/depth

500 mm

Type of control gear

Not required

Voltage type

AC

Material cover

Plastic, opal

Colour housing

Black, White

Surface protection

Lacquered

Material housing

Aluminium

Lamp holder

E27

Suitable for number of lamps

1

Power factor

1

Degree of protection (IP)

IP44

Diameter

500 mm

Protection class

I

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Type of wiring

Suitable for through wiring

Highest energy efficiency class of the exchangeable lamp

A++

No dim function

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Suitable for spigot size

60 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig

Light type

Mastaufsatzleuchte

Cable length

0 m

Suitable for lamp power

1 – 150 W

Max. system power

150 W
