Data sheet
Article number 690012
Aluminium mast
type ..0012
€694,50
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

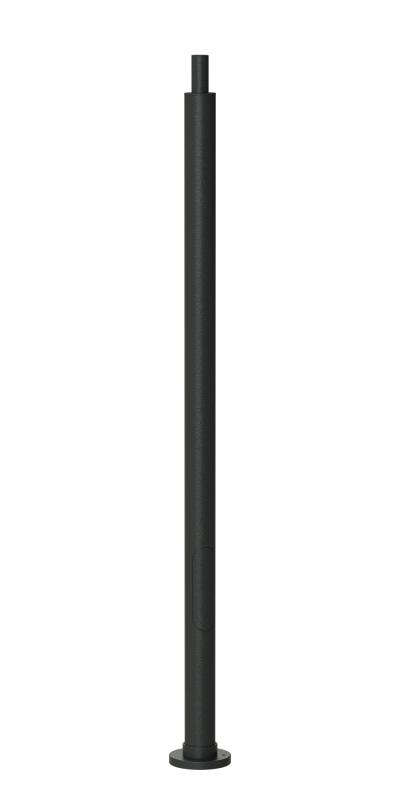

Albert aluminium mast for spherical top lights 690012
cylindrical, d 110 with masthead made of aluminium and cast aluminium. Colour: black Pole height 2000 mm above floor, pole spigot diameter 60 Mounting base d 220 for three-screw mounting on a foundation or the ground mounting base type no. 690011.With door and C-rail for cable junction box 690036.
Colour
Black
Top end diameter
60 mm
Documents and files

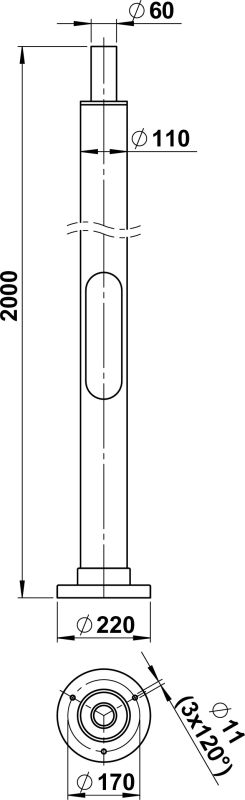

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 6,00 kg |
|---|---|
| Model | Cylindrical |
| Top end diameter | 60 mm |
| Diameter at base | 220 mm |
| Wall thickness | 2.5 mm |
| Material | Aluminium |
| Surface protection | Lacquered |
| Colour | Black |
| Light centre height | 2 m |
| Total length | 2 m |
| With base plate | Yes |
| Shape | Eckig |
