Article number 690014

Aluminium mast

type ..0014

449,90

Description

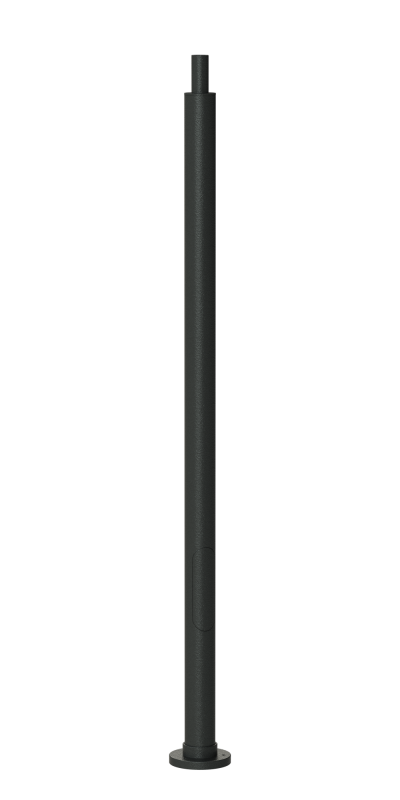

Albert aluminium mast for spherical top lights 690014
cylindrical, d 110 with masthead made of aluminium and cast aluminium. Colour: 3000 mm above floor, masthead diameter 60 Mounting base d 300 for three-screw mounting on a foundation or the ground mounting base type no. 690011.With door and C-rail for cable junction box 690036.

Colour
Stainless steel
Top end diameter
60 mm
Documents and files

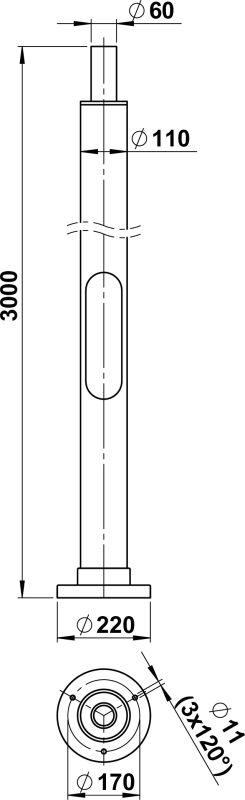

Dimensioned drawing
Full catalog 21 / 22
Accessories
690011 - Earth mounting base type ..0011 show
690036 - KÜK Type No. 690036 show

Additional information

Weight 11.60 kg
Model

Cylindrical

Top end diameter

60 mm

Diameter at base

220 mm

Wall thickness

2.5 mm

Material

Aluminium

Surface protection

Lacquered

Colour

Stainless steel

Light centre height

3 m

Total length

3 m

With base plate

Yes

Shape

Eckig

Total length

3000 – 3500 mm
