Data sheet
Article number
Select a color, please

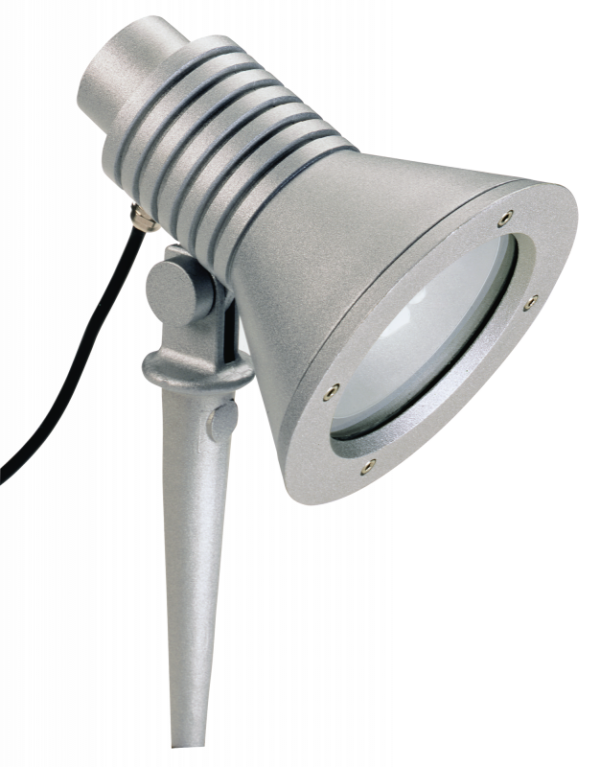

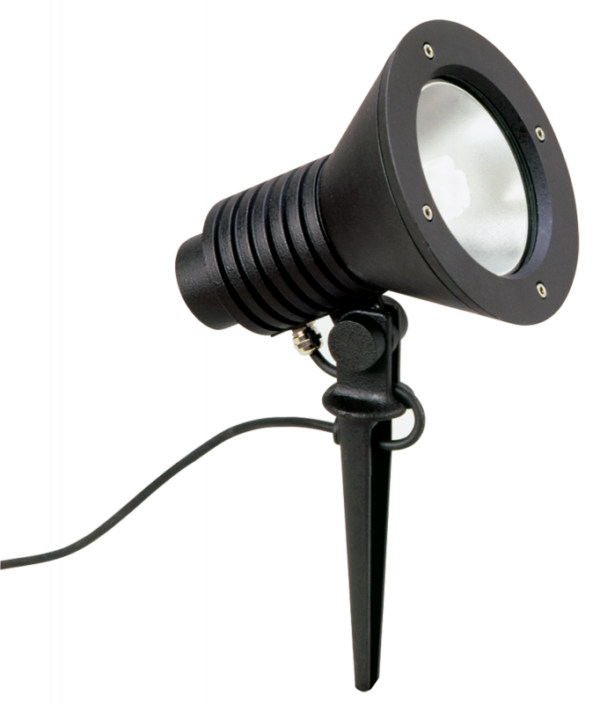

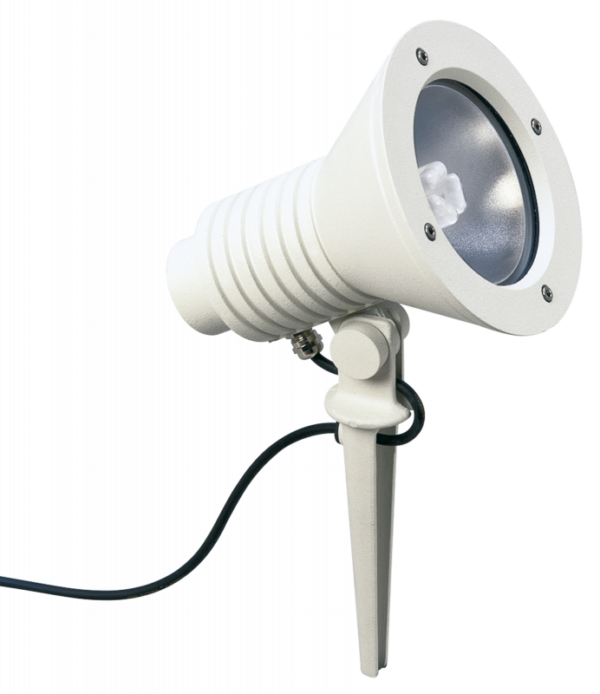

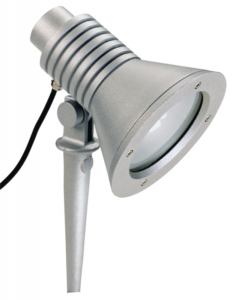

Spit lamp
type ..2183
€202,80 – €231,90
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
The luminaire body can be rotated.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
15 W
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Protection class | I |
| No dim function | Yes |
| Connectable conductor cross section | 0 mm² |
| Number of poles | 3 |

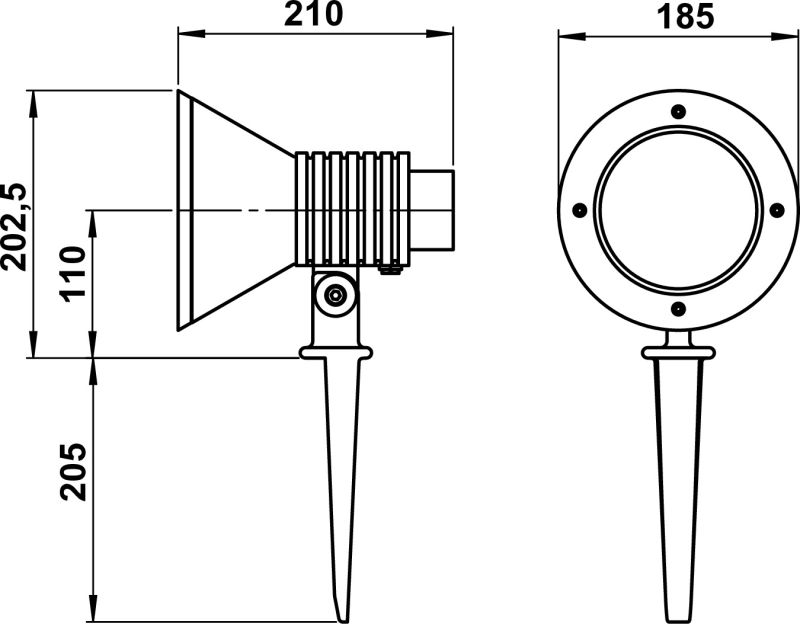

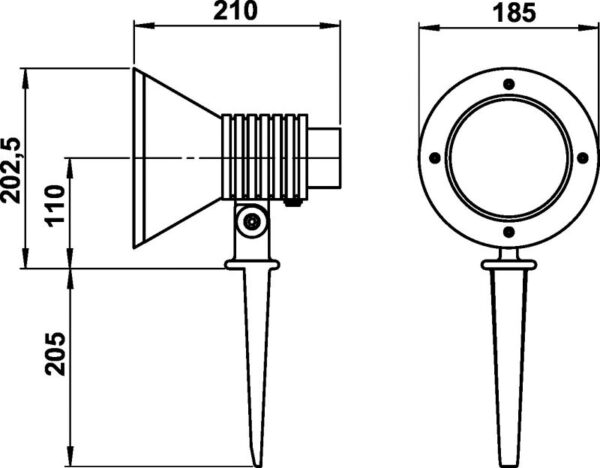

| Outer diameter | 185 mm |
| Degree of protection (IP) | IP54 |
| Light sharing | Symmetric |
| Length | 210 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Mounting method | Spieß |
| Shape | Angular, Eckig |
| Luminous flux | 0 – 3000 lm |
| Conductor cross section | 0 mm² |
| Max. system power | 15 W |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Power factor | 1 |
| Adjustability | Rotating and swivelling |
| Light outlet | Direct |
| Suitable for pedestal/floor mounting | Yes |
| Nominal voltage | 230 V |
| Height/depth | 202.2 mm, 202.5 mm |
| Dimming phase cut-off | Yes |
| Beam angle | Medium beam 21-40° |
| Type of control gear | Not required |
| Dimming depending on control gear | Yes |
| Style | Country House |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Protection class | I |
| No dim function | Yes |
| Connectable conductor cross section | 0 mm² |
| Number of poles | 3 |
| Outer diameter | 185 mm |
| Degree of protection (IP) | IP54 |
| Light sharing | Symmetric |
| Length | 210 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Mounting method | Spieß |
| Shape | Angular, Eckig |
| Luminous flux | 0 – 3000 lm |
| Conductor cross section | 0 mm² |
| Max. system power | 15 W |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Power factor | 1 |
| Adjustability | Rotating and swivelling |
| Light outlet | Direct |
| Suitable for pedestal/floor mounting | Yes |
| Nominal voltage | 230 V |
| Height/depth | 202.2 mm, 202.5 mm |
| Dimming phase cut-off | Yes |
| Beam angle | Medium beam 21-40° |
| Type of control gear | Not required |
| Dimming depending on control gear | Yes |
| Style | Country House |
