Wall floodlight

type ..2182

186,20213,60

Clear
Features
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Replaceable Albert Product-Icon LED components can be replaced by Albert luminaires.
LED components can be replaced by Albert luminaires.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
15 W
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Nominal voltage

230 V

Suitable for pedestal/floor mounting

Yes

Light output

Direct

Adjustability

Rotating and swivelling

Power factor

1

Voltage type

AC

Suitable for number of lamps

1

Surface protection

Lacquered

Height/depth

232.5 mm

Dimming depending on control gear

Yes

Type of control gear

Not required

Beam angle

Medium beam 21-40°

Suitable for ceiling mounting

Yes

Dimming phase cut-off

Yes

Max. system power

15 W

Outer diameter

185 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light sharing

Symmetric

Degree of protection (IP)

IP54

Type of wiring

Ending

Number of poles

3

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Protection class

I

Length

210 mm

Conductor cross section

2.5 mm²

Luminous flux

0 – 3000 lm

Shape

Angular, Eckig

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Style

Country House

Documents and files
Data sheet
Assembly instruction
PDF | 23 KB

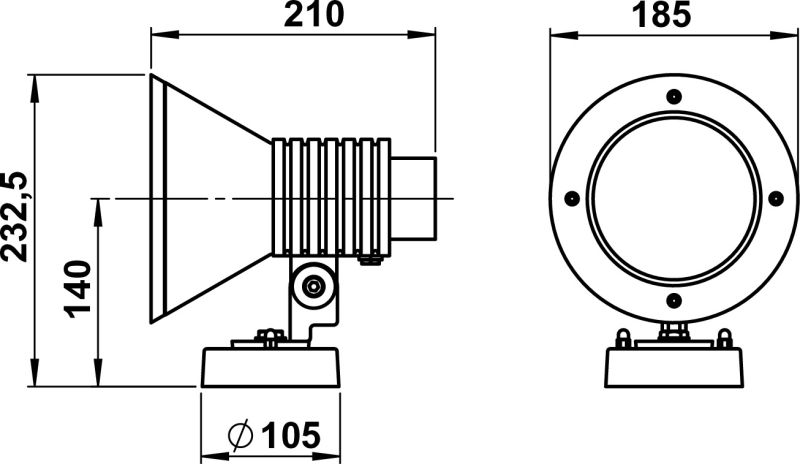

Dimensioned drawing
PDF | 115 KB
Light distribution curve
LDT | 4 KB
Offertext
For: 662182
TXT | 248 B
Offertext
For: 682182
TXT | 247 B
Offertext
For: 692182
TXT | 226 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220338 - G 338, single-pane safety glass show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 662182
show
681005 - Corner bracket round type ..1005, White
Für: 682182
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 692182
show
90750106 - LED PAR 30 show
