Article number Select a color, please

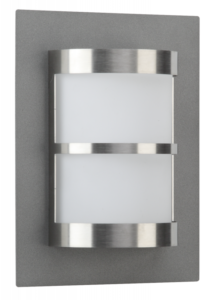

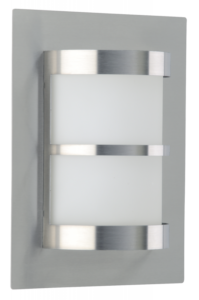

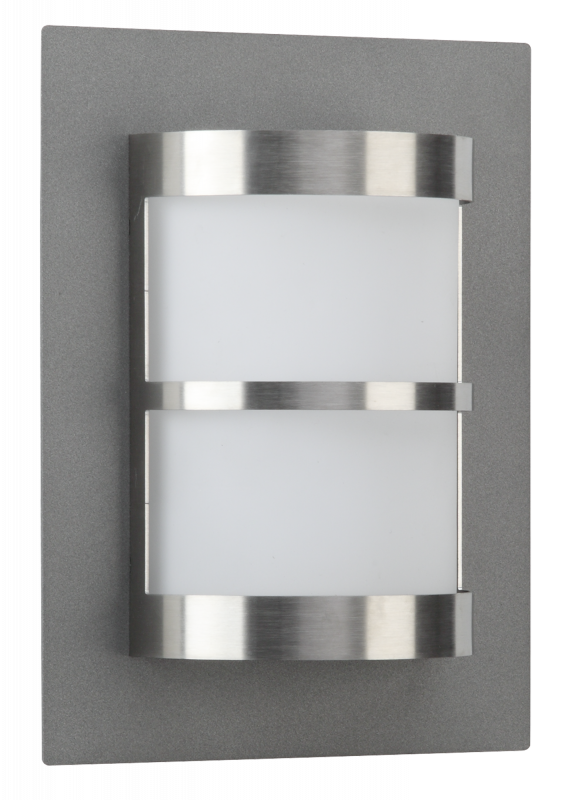

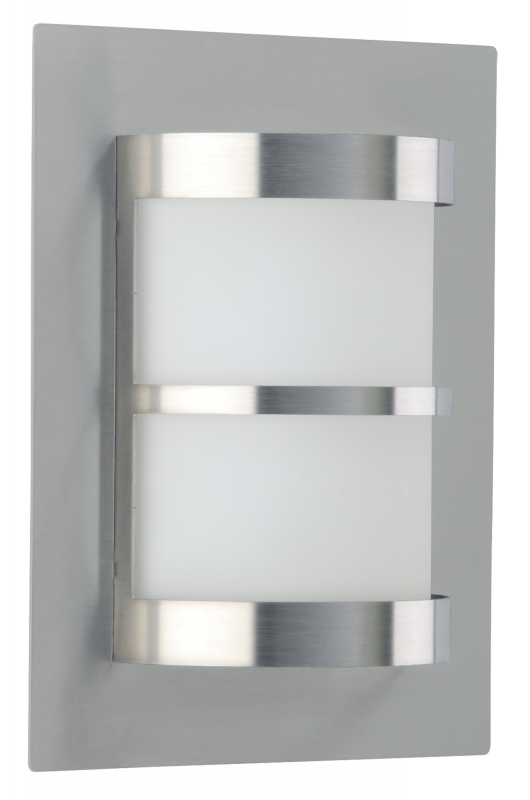

Wall lamp

type ..6224

204,00249,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

Not required

Nominal voltage

230 V

Max. system power

75 W

Height/depth

260 mm

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A++

Voltage type

AC

Dimming manufacturer's proprietary system

Yes

Number of poles

3

Power factor

1

Shape

Eckig

Length

95 mm

Style

Bicolor, Edelstahl, Modern

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Conductor cross section

2.5 mm²

Width

200 mm

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Height

< 700 mm

Surface protection housing

Untreated

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 82 KB

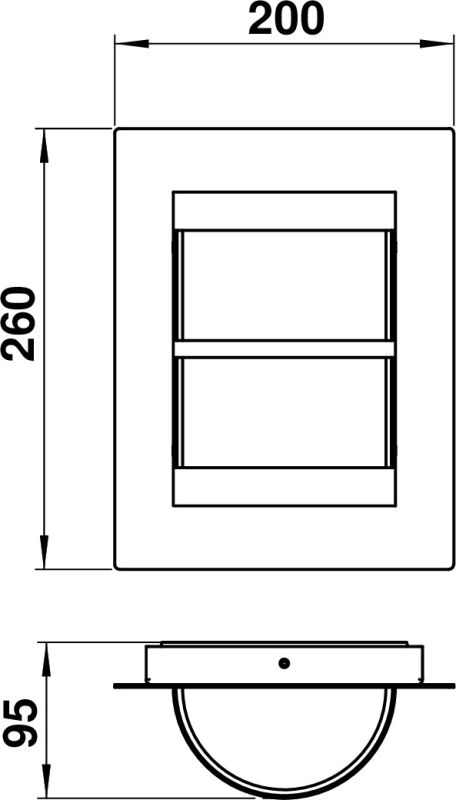

Dimensioned drawing
PDF | 16 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 626224
TXT | 263 B
Offertext
For: 696224
TXT | 211 B
Full catalog 21 / 22
For: 626224
PDF | 39 MB
Full catalog 21 / 22
For: 696224
PDF | 39 MB
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
