Article number Select a color, please

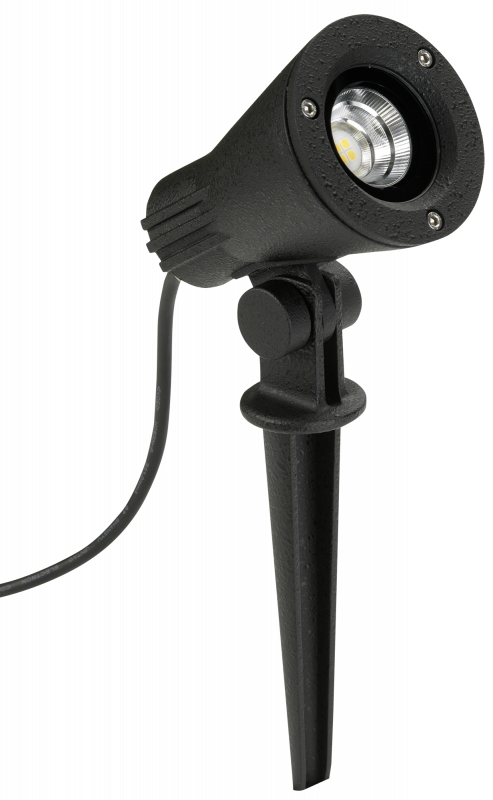

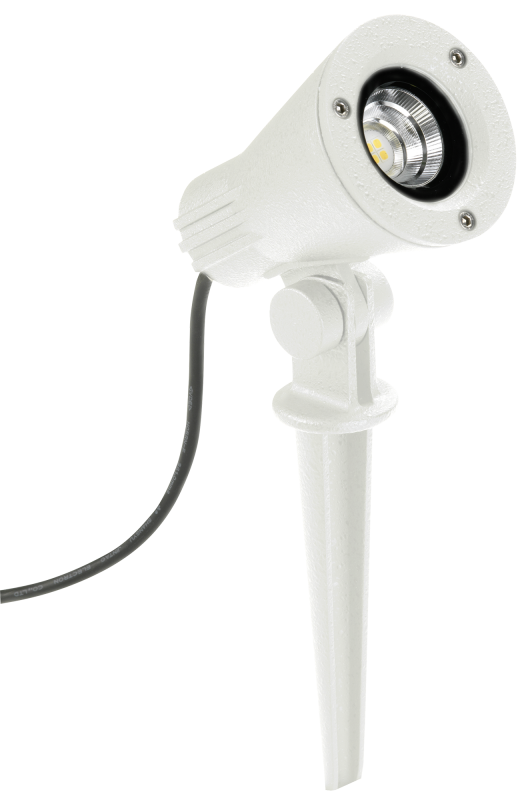

Spit lamp

type ..2354

206,70

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

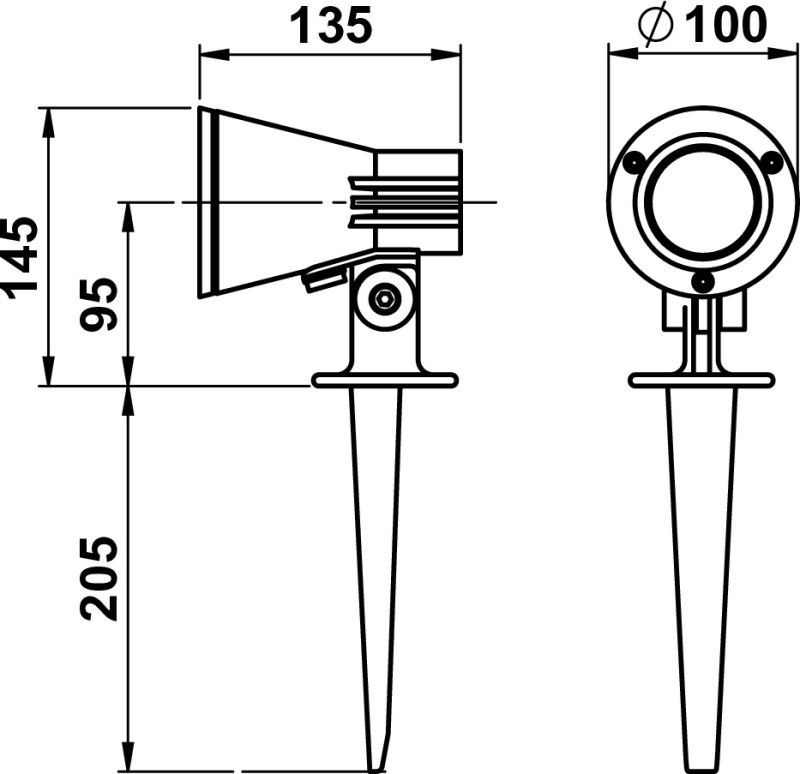

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662354
Offertext
For: 682354
Full catalog 21 / 22
Spare parts
90220480 - G 480, round with black edge ESG show

Additional information

Weight N/A
Surface protection

Lacquered

Voltage type

AC

Suitable for pedestal/floor mounting

Yes

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Energy efficiency class of the provided exchangeable built-in lamp

E

Adjustability

Rotating and swivelling

Degree of protection (IP)

IP54

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, White

Material housing

Aluminium

Protection class

I

Outer diameter

100 mm

Light sharing

Symmetric

Colour temperature

3000 K

Beam angle

Medium beam 21-40°

With control gear

Yes

Type of wiring

Ending

Length

135 mm

Colour rendering index CRI

80-89

Max. system power

8 W

Light output

Direct

Luminous flux

800 lm

Rated luminous flux according to IEC 62722-2-1

800 lm

Power factor

0.9

Height/depth

145 mm

Colour of light

White

Light distributor

Reflector

Number of poles

3

Conductor cross section

0 mm²

Connectable conductor cross section

0 mm²

No dim function

Yes

Suitable for lamp power

8 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Mounting Type

Spieß

Light output

1-seitig

Height

< 700 mm

Exchangeable control gear

Yes

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1
