Article number 692412

Wall floodlight

type ..2412

464,80

Description

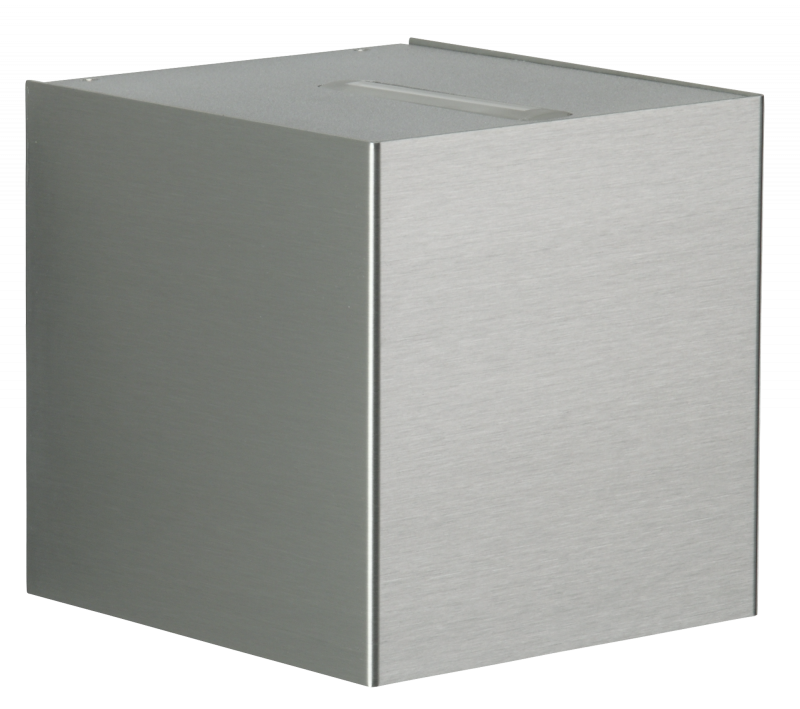

Albert wall spotlight 692412
with 2-sided light emission, narrow at the top and bottom, made of stainless steel with lens optics. Cast aluminium mounting plate Fitted for 2 x LED 6.7 W, 600 lm each, 3000 IP 44 – protection class : 140 x 155 x 150 Energy efficiency class light source: A+.

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

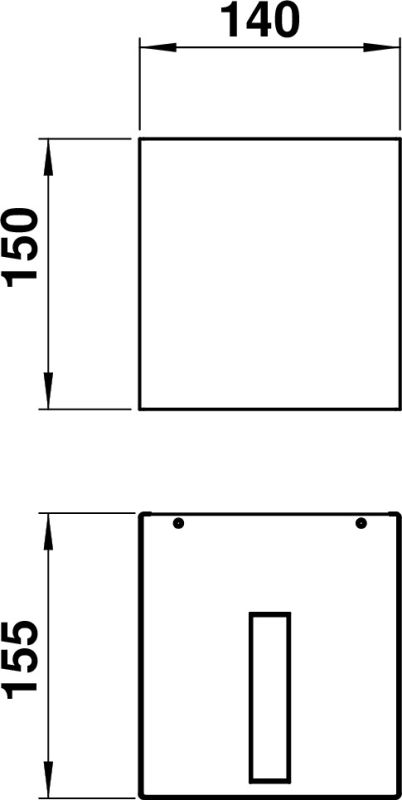

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220337 - G 337, prism glass, borosilicate show

Additional information

Weight 3,30 kg
Light output

2-seitig

Voltage type

AC/DC

Surface brushed

Yes

Suitable for pedestal/floor mounting

Yes

Material housing

Stainless steel

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

2

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

6.7 W

Protection class

I

Beam angle

Medium beam 21-40°

Max. system power

13.4 W

With control gear

Yes

Colour temperature

3000 K

Colour rendering index CRI

80-89

Adjustability

Not adjustable

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Stainless steel

Suitable for surface mounting

Yes

Type of wiring

Ending

Light distributor

Focal lens

Length

155 mm

Colour of light

White

Luminous flux

1200 lm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Flickering value Pst LM

1

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Light sharing

Symmetric

Light output

Direct/indirect

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker B16

20

Beam angle adjustable

Continuously variable

Height

< 700 mm

Power factor

0.9

Max. number of luminaires per miniature circuit breaker C16

30

Width

140 mm

Unified Glare Ratio (UGR)

1

Height/depth

150 mm

Degree of protection (IP)

IP44

No dim function

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Stroboscope effect value SVM

0.4

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig
