Article number Select a color, please

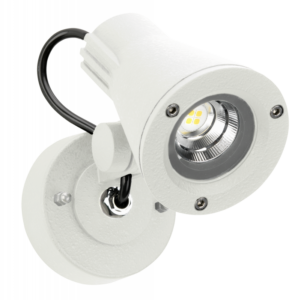

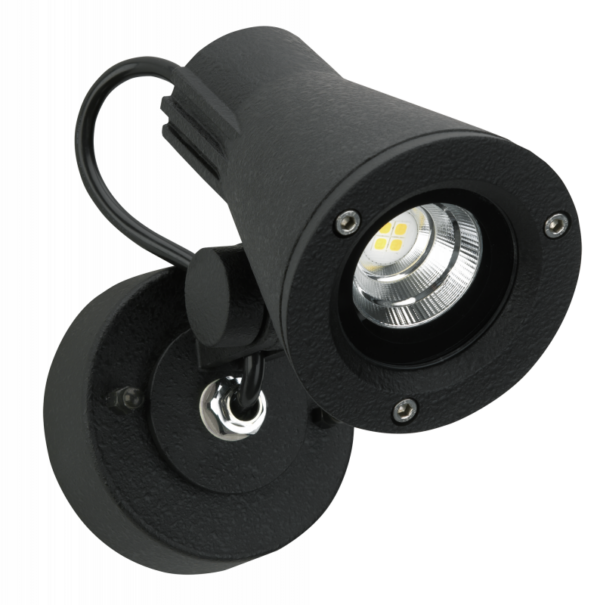

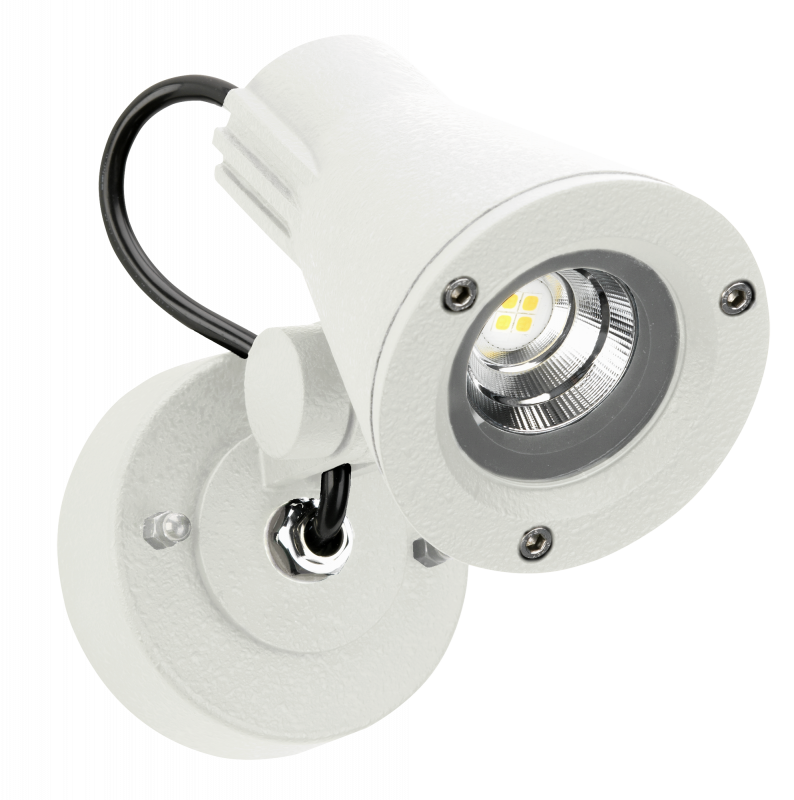

Wall floodlight

type ..2353

229,20

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

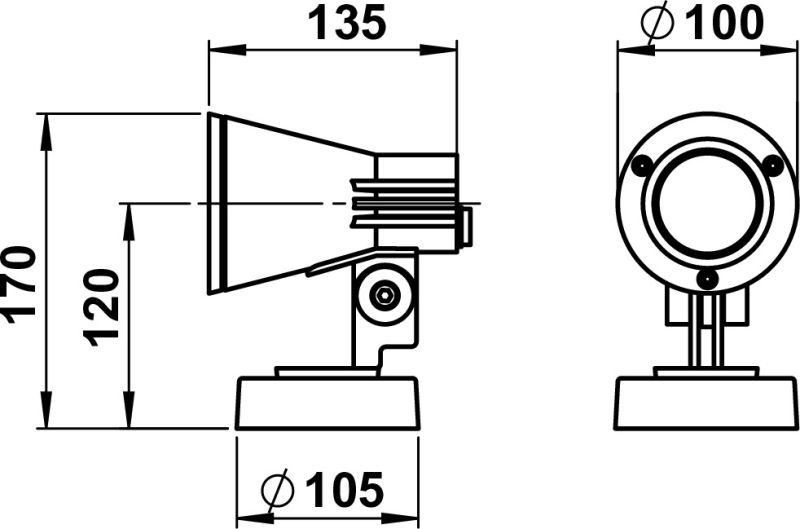

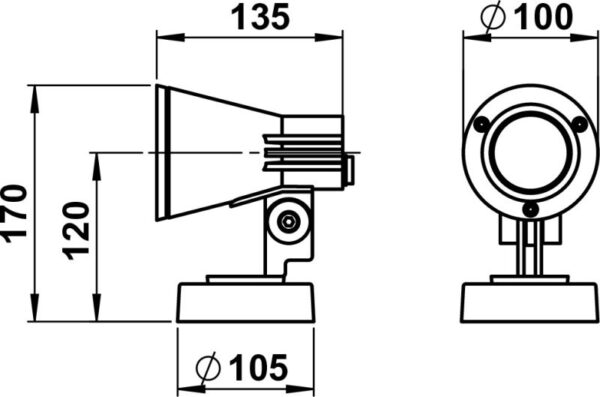

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662353
Offertext
For: 682353
Full catalog 21 / 22
Spare parts
90220480 - G 480, round with black edge ESG show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 662353
show
681005 - Corner bracket round type ..1005, White
Für: 682353
show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Voltage type

AC

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

With control gear

Yes

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Energy efficiency class of the provided exchangeable built-in lamp

E

Adjustability

Rotating and swivelling

Degree of protection (IP)

IP54

Surface protection

Lacquered

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, White

Material housing

Aluminium

Protection class

I

Outer diameter

100 mm

Light sharing

Symmetric

Colour temperature

3000 K

Beam angle

Medium beam 21-40°

Suitable for lamp power

8 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

135 mm

Colour rendering index CRI

80-89

Max. system power

8 W

Light output

Direct

Luminous flux

800 lm

Rated luminous flux according to IEC 62722-2-1

800 lm

Power factor

0.9

Colour of light

White

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

No dim function

Yes

Type of wiring

Ending

Height/depth

170 mm

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1
