Article number 622398

Spit lamp

type ..2398

222,30

Description

Albert small radiator 622398
120 degree swivelling, with ground spike and 2.500 mm connection cable incl. plug, made of corrosion-resistant cast aluminium and clear borosilicate glass. Equipped for 1 x lamp G 9. colour: anthracite protection class: IP 55 – protection class : d 110 x 120 x 360 mm

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

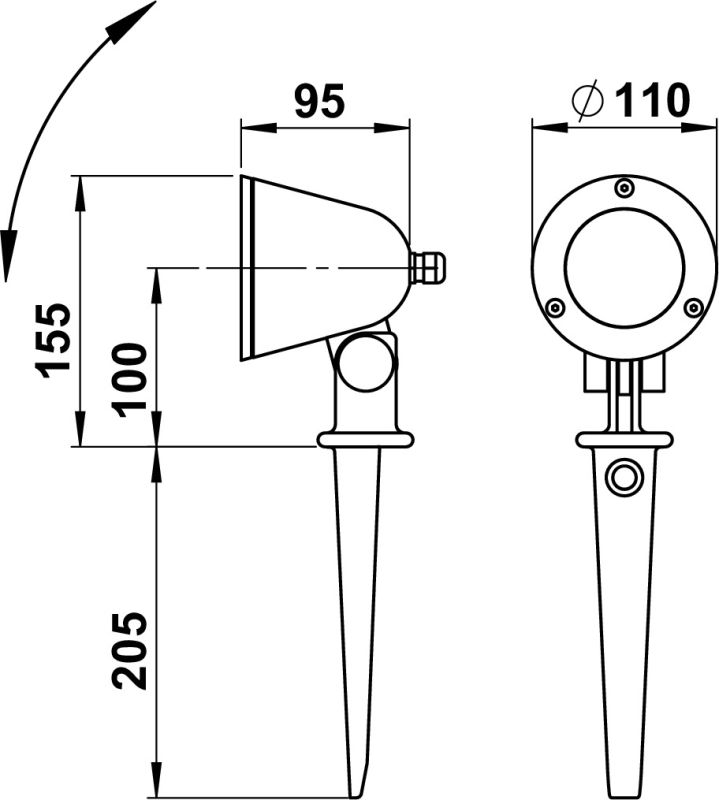

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220358 - G 358, borosilicate glass show
Accessories
90750103 - LED Pin show

Additional information

Weight 1,30 kg
Light output

1-seitig

Suitable for number of lamps

1

Lamp type

HV halogen lamp

Colour housing

Anthracite

Nominal voltage

230 V

Adjustability

Rotating and swivelling

Conductor cross section

0 mm²

Type of control gear

Not required

Surface protection

Lacquered

Material cover

Glass transparent

Dimming depending on control gear

Yes

Reflector

High-gloss

No dim function

Yes

Suitable for pedestal/floor mounting

Yes

Light sharing

Symmetric

Light distributor

Reflector

Material housing

Aluminium

Max. system power

50 W

Voltage type

AC

Height

< 700 mm

Beam angle adjustable

Continuously variable

Beam angle

Medium beam 21-40°

Unified Glare Ratio (UGR)

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light output

Direct

Connectable conductor cross section

0 mm²

Type of wiring

Ending

Dimming phase cut-off

Yes

Lamp holder

G9

Number of poles

3

Suitable for lamp power

50 W

Protection class

I

Degree of protection (IP)

IP54

Power factor

1

Length

95 mm

Height/depth

155 mm

Mounting Type

Spieß

Shape

Eckig
