Data sheet
Article number 622399
Spit lamp
type ..2399
€168,50
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

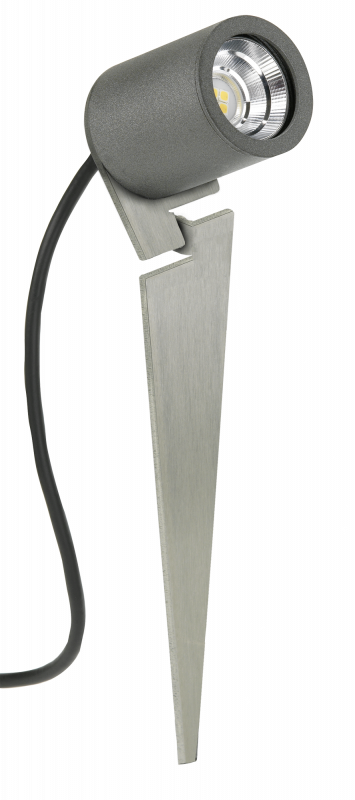

Spike spotlight type no. 2399, colour: anthracite, 1 x LED PAR 16, GU10, aluminium casting, swivelling 120 degrees, with 2,5 m cable and plug, borosilicate glass clear
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
Lamp holder
GU10
Suitable for lamp power
12.5 W
Material cover
Glass transparent
Documents and files
Assembly instruction

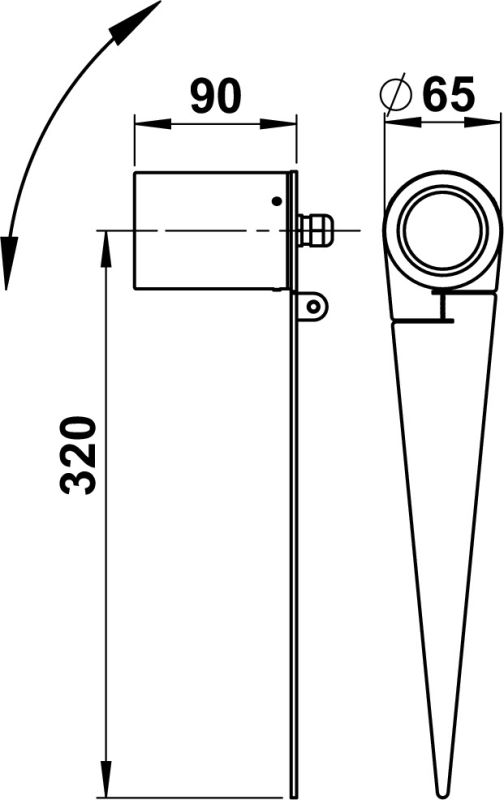

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 0,80 kg |
|---|---|
| Suitable for pedestal/floor mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Adjustability | Swivelling |
| Suitable for number of lamps | 1 |
| Lamp holder | GU10 |
| Material housing | Aluminium |
| Voltage type | DC |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Dimming depending on control gear | Yes |
| Connectable conductor cross section | 0 mm² |
| Surface protection | Lacquered |
| Suitable for lamp power | 12.5 W |
| Material cover | Glass transparent |
| Colour housing | Anthracite |
| Lamp type | LED exchangeable |
| Max. system power | 12.5 W |
| Power factor | 0.9 |
| Conductor cross section | 0 mm² |
| Protection class | II |
| Type of wiring | Ending |
| Number of poles | 3 |
| Mounting Type | Spieß |
| Light output | 1-seitig |
| Height/depth | 320 mm |
| Beam angle adjustable | Continuously variable |
| Degree of protection (IP) | IP44 |
| Unified Glare Ratio (UGR) | 1 |
| Light sharing | Symmetric |
| Length | 75 mm |
| No dim function | Yes |
| Light output | Direct |
| Beam angle | Medium beam 21-40° |
| Outer diameter | 60 mm |
| Height | < 700 mm |
| Dimming phase cut-off | Yes |
| Shape | Eckig |
