Article number 692112

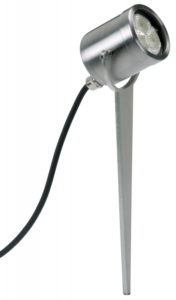

Spit spotlight

type ..2112

278,10

Description

Albert-Small floodlight 692112 120 degree swivelling, with ground spike and 2.500 mm connection cable incl. plug, made of stainless steel and borosilicate glass clear. Equipped with 1 x LED 4,5W – light colour white -incl. converter for connection to 230V/50Hz.protection class: IP 55 – protection class : d 95 x 100 x 340 mm Albert-pathway lamp 692112made of cast aluminium with borosilicate glass. Equipped for 1 halogen bulb QT-DE 12 60-150W, socket R7s. Ready for connectionwith mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : silver Dimensions: d 210 x 220 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
4.5 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

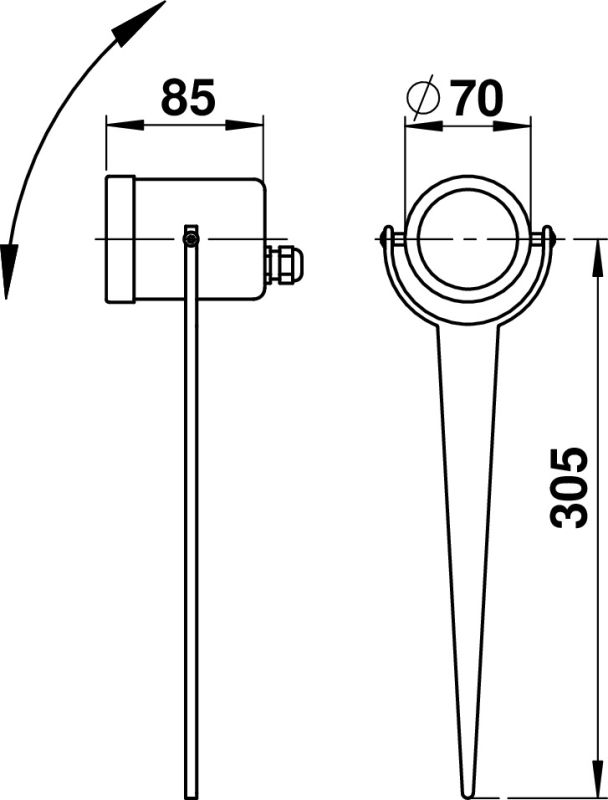

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220448 - G 448, glass clear ESG show

Additional information

Weight 3,00 kg
Colour housing

Stainless steel

Voltage type

AC/DC

Suitable for pedestal/floor mounting

Yes

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

4.5 W

Dimming phase cut-off

Yes

Type of control gear

LED operating device voltage-controlled

Material housing

Stainless steel

Protection class

I

Colour rendering index CRI

80-89

Max. system power

4.5 W

Colour temperature

3000 K

Beam angle

Medium beam 21-40°

Degree of protection (IP)

IP54

With control gear

Yes

Adjustability

Swivelling

Nominal voltage

230 V

Type of wiring

Ending

Mounting Type

Spieß

Light distributor

Reflector

Outer diameter

70 mm

Colour of light

White

Luminous flux

330 lm

Rated luminous flux according to IEC 62722-2-1

330 lm

Light sharing

Symmetric

Light output

Direct

Number of poles

3

Conductor cross section

0 mm²

Connectable conductor cross section

0 mm²

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Length

85 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes

Height/depth

305 mm

Colour consistency (McAdam ellipse)

SDCM3

Light output

1-seitig

Max. number of luminaires per miniature circuit breaker B16

20

Height

< 700 mm

Exchangeable control gear

Yes

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Power factor

0.9

Shape

Eckig
