Article number Select a color, please

Spit lamp

type ..2197

157,50181,00

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

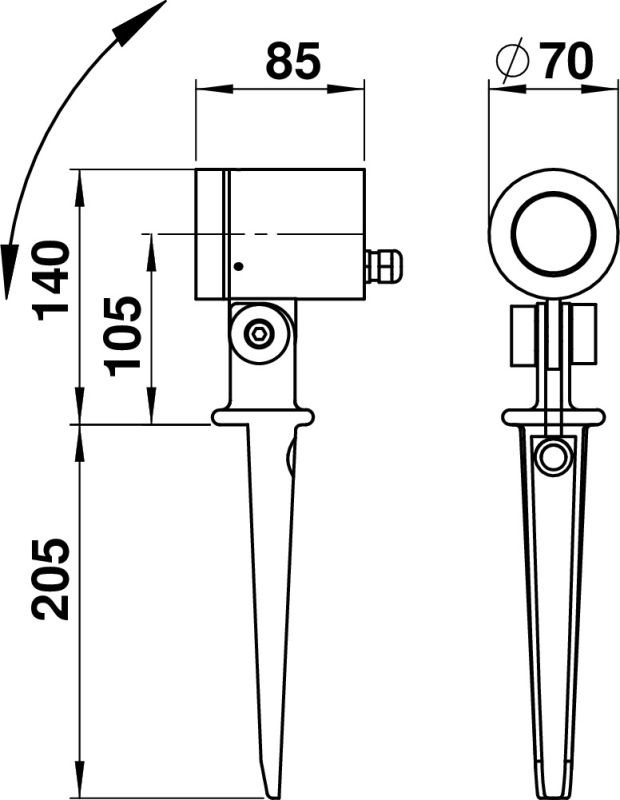

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662197
Offertext
For: 682197
Offertext
For: 692197
Full catalog 21 / 22
Spare parts
90220165 - G 165, borosilicate round discs show
Accessories

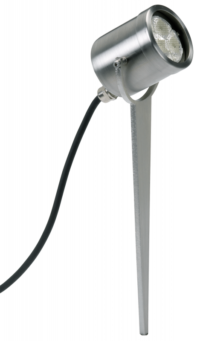

90750105 - LED PAR 16 show

Additional information

Weight N/A
Lamp holder

GU10

Material housing

Aluminium

Height/depth

140 mm

Nominal voltage

230 V

Suitable for pedestal/floor mounting

Yes

Light output

Direct

Adjustability

Swivelling

Beam angle

Medium beam 21-40°

Power factor

1

Voltage type

AC

Dimming phase cut-off

Yes

Dimming depending on control gear

Yes

Material cover

Glass transparent

Lamp type

HV halogen lamp

Type of control gear

Not required

Surface protection

Lacquered

Suitable for number of lamps

1

Type of wiring

Ending

Max. system power

50 W

Degree of protection (IP)

IP54

Outer diameter

70 mm

Suitable for lamp power

50 W

Connectable conductor cross section

0 mm²

No dim function

Yes

Protection class

I

Colour housing

Black, Silver, White

Length

85 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Number of poles

3

Conductor cross section

0 mm²

Luminous flux

0 – 3000 lm

Mounting Type

Spieß

Light output

1-seitig

Height

< 700 mm

Light sharing

Symmetric

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Shape

Eckig
