Article number 690241

Wall light

type ..0241

278,30

Description

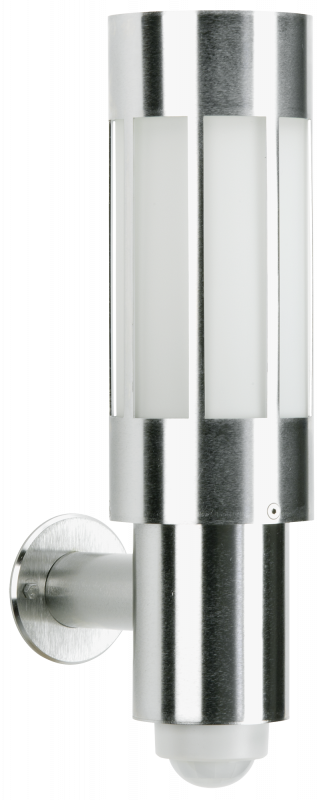

Albert wall lamp 690241 – with integrated motion detector – made of stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W, socket E27.protection class IP 44 – protection class : d 103 x 380 x 170 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

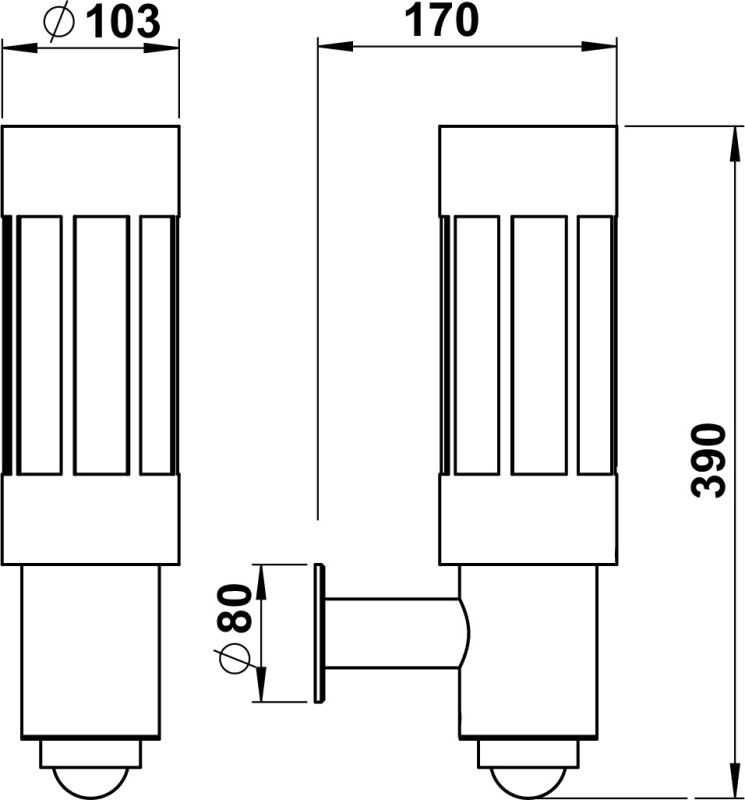

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
691003 - Corner bracket type ..1003 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,00 kg
Max. system power

75 W

Suitable for lamp power

1 – 75 W

Power factor

1

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Degree of protection (IP)

IP44

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Type of control gear

Not required

Nominal voltage

230 V

Lamp holder

E27

Length

170 mm

Colour housing

Stainless steel

Material cover

Glass opal

Height/depth

390 mm

Voltage type

AC

Suitable for surface mounting

Yes

Light sharing

Symmetric

Material housing

Stainless steel

With movement sensor

Yes

Height

< 700 mm

Protection class

I

Number of poles

3

Dimming depending on control gear

Yes

No dim function

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for wall mounting

Yes

Type of wiring

Ending

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Coverage

360 °

Mounting Type

Wand

With light sensor

Yes

Light output

Direct

Unified Glare Ratio (UGR)

1

Beam angle

Open beam/diffuse

Outer diameter

103 mm

Photobiological safety according to EN 62471

RG1

Surface protection housing

Untreated

Light type

Wandleuchte

Light output

1-seitig

Style

Edelstahl, Modern

Conductor cross section

2.5 mm²

Shape

Eckig
