Data sheet
Article number 690020
Steel pole, 3000 mm, spigot 76
type ..0020
€1.466,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert steel pole 690020
hot-dip galvanised and painted, conical. For post-top luminaires and 3,000 mm above floor level, with ground piece 700 76 door, to accommodate a cable junction box 690036.Colour of choice, according to RAL colour chart.
Top end diameter
76 mm
Documents and files

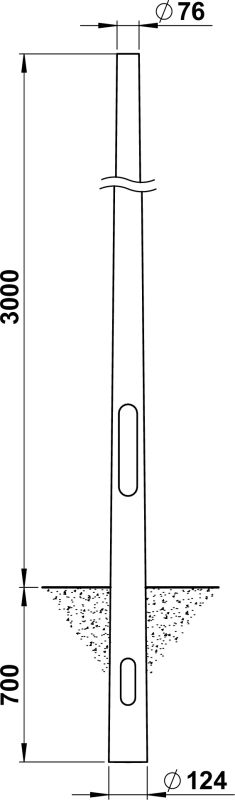

Dimensioned drawing
Full catalog 21 / 22
Accessories
| 690036 - KÜK Type No. 690036 | show |
Additional information
| Weight | 22,60 kg |
|---|---|
| Model | Cylindrical |
| Conical tapering | Yes |
| Top end diameter | 76 mm |
| Diameter at base | 124 mm |
| Wall thickness | 3 mm |
| Material | Steel |
| Surface protection | Lacquered |
| Light centre height | 3 m |
| Total length | 3.7 m |
| Total length | 3000 – 3500 mm |
| Shape | Eckig |
