Article number 690066

Steel pole, 4000 mm, spigot 76

type ..0066

1.492,60

Description

Albert steel pole 690066 hot-dip galvanised and painted, Cylindrically stepped. For post-top luminaires and 4,000 mm above floor level, with ground piece 800 76 door, to accommodate a cable transition box 690036.Colour of choice, according to RAL colour chart.

Top end diameter
76 mm
Documents and files

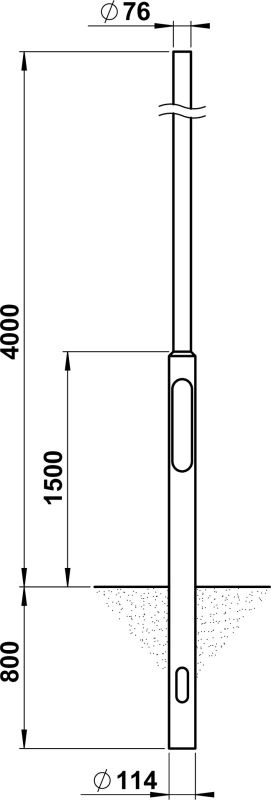

Dimensioned drawing
Full catalog 21 / 22
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 27,60 kg
Model

Cylindrical

Stepped shape

Yes

Top end diameter

76 mm

Diameter at base

114 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Lacquered

Light centre height

4 m

Total length

4.8 m

Total length

3501 – 4500 mm

Shape

Eckig
