Data sheet
Article number 690025
Steel pole, 3500 mm, spigot 76
type ..0025
€1.376,20
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert steel pole 690025
hot-dip galvanised and painted, cylindrically stepped. For post-top luminaires and 3,500 mm above floor level, with ground piece 600 76 door, to accommodate a cable junction box 690036.Colour to choice, according to RAL colour chart.
Top end diameter
76 mm
Documents and files

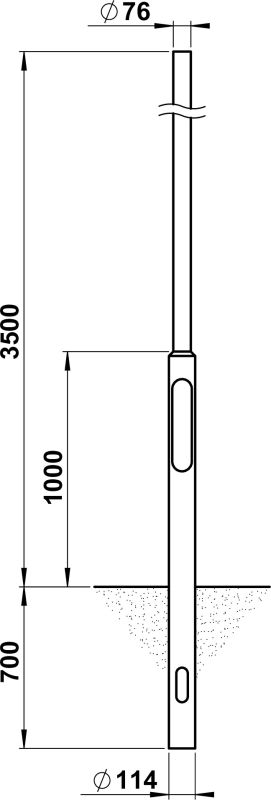

Dimensioned drawing
Full catalog 21 / 22
Accessories
| 690036 - KÜK Type No. 690036 | show |
Additional information
| Weight | 24,10 kg |
|---|---|
| Model | Cylindrical |
| Stepped shape | Yes |
| Top end diameter | 76 mm |
| Diameter at base | 114 mm |
| Wall thickness | 3 mm |
| Material | Steel |
| Surface protection | Lacquered |
| Light centre height | 3.5 m |
| Total length | 4.2 m |
| Shape | Eckig |
