Data sheet
Article number 690061
Steel pole, 4500 mm, spigot 76
type ..0061
€1.258,00
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert steel pole 690061 hot-dip galvanized and unpainted, cylindrical stepped, for pole-top luminaires and 4,500 mm above floor level, with ground piece 800 76 door to accommodate a cable junction box 690036
Top end diameter
76 mm
Documents and files

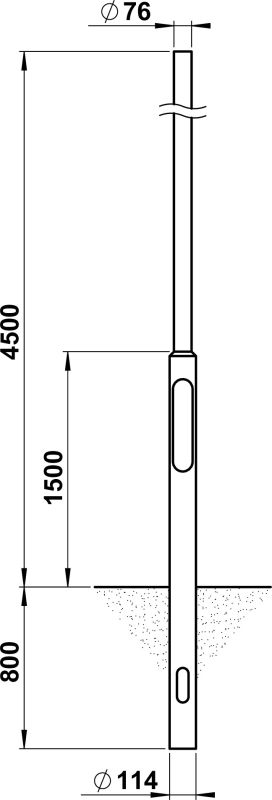

Dimensioned drawing
Full catalog 21 / 22
Accessories
| 690036 - KÜK Type No. 690036 | show |
Additional information
| Weight | 28,50 kg |
|---|---|
| Model | Cylindrical |
| Stepped shape | Yes |
| Top end diameter | 76 mm |
| Diameter at base | 114 mm |
| Wall thickness | 3 mm |
| Material | Steel |
| Surface protection | Galvanized |
| Light centre height | 4.5 m |
| Total length | 5.3 m |
| Shape | Eckig |
