Article number 690043

Steel pole,6000 mm, spigot 76

type ..0043

952,20

Description

Albert steel pole 690043 hot-dip galvanised and unpainted, conical. For post-top luminaires and 6,000 mm above ground, with ground piece 1,000 76 door, to accommodate a cable transition box 690036

Colour
Stainless steel
Top end diameter
76 mm
Documents and files

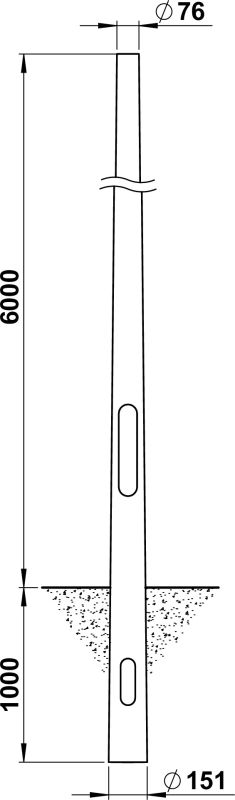

Dimensioned drawing
Full catalog 21 / 22
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 46.80 kg
Model

Cylindrical

Conical tapering

Yes

Top end diameter

76 mm

Diameter at base

151 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Colour

Stainless steel

Light centre height

6 m

Total length

7 m

Shape

Eckig
