Article number 690226

Wall light

type ..0226

188,10

Specifications

Albert wall lamp 690226
made of stainless steel with clear bubble glass sphere d 200 for 1 x incandescent lamp A60 max. 75 Watt, socket E27.protection class IP 44 – protection class : d 200 x 315 x 250 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 1,60 kg
Connection type

Screwed terminal

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Conductor cross section

2.5 mm²

Dimming manufacturer's proprietary system

Yes

Number of poles

3

Protection class

I

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Suitable for surface mounting

Yes

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Length

250 mm

Outer diameter

200 mm

Type of wiring

Ending

Dimming phase cut-on

Yes

Beam angle

Open beam/diffuse

Light output

1-seitig

Mounting Type

Wand

Light type

Wandleuchte

Dimming depending on control gear

Yes

Max. system power

75 W

Degree of protection (IP)

IP44

Suitable for wall mounting

Yes

No dim function

Yes

Power factor

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Surface protection housing

Untreated

Height/depth

315 mm

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Shape

Eckig

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 35 KB

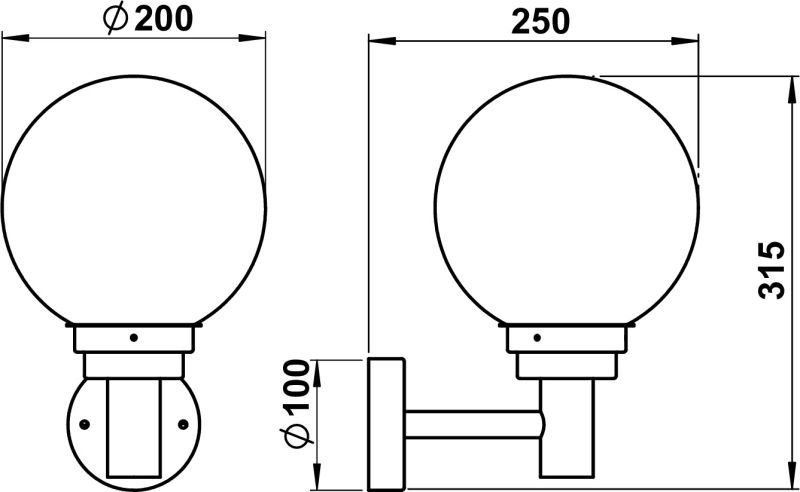

Dimensioned drawing
PDF | 25 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210042 - G-42, bubble glass sphere, clear show
Accessories
691004 - Corner bracket type ..1004 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
