Data sheet
Article number
Select a color, please

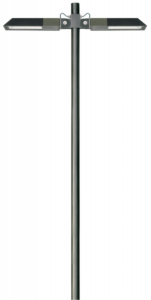

Vario post-top luminaire
type ..0844
€1.959,60
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
115 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
Recommendations
This product is suitable for light poles with a pole top end diameter of 76mm.
Documents and files
Assembly instruction

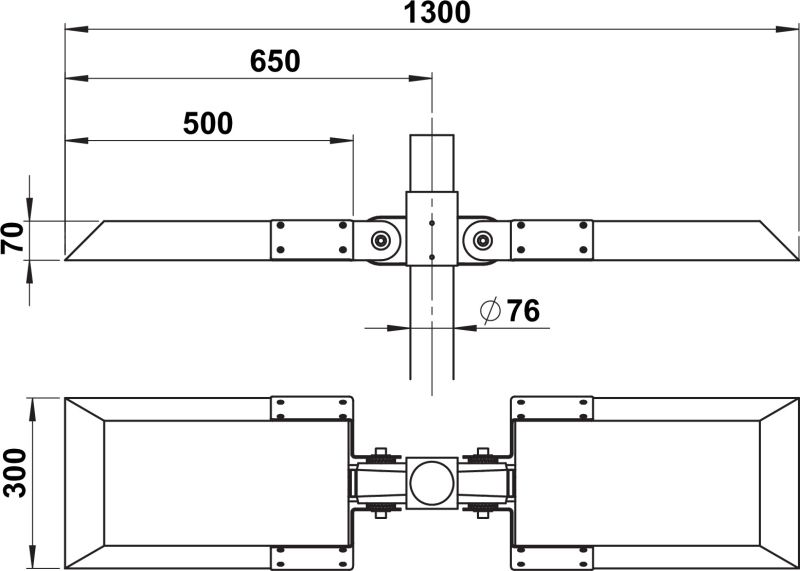

Dimensioned drawing
Offertext
For: 620844
Offertext
For: 660844
Full catalog 21 / 22
Spare parts
| 90220465 - G 465, rectangular pane ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Colour of light | White |
| Mounting Type | Post top |
| Colour housing | Anthracite, Black |
| Lamp type | LED exchangeable |
| No dim function | Yes |
| Type of control gear | LED operating device current-controlled |
| Surface protection | Lacquered |
| Voltage type | AC/DC |
| Protection class | I |
| Width | 300 mm |
| Suitable for number of lamps | 2 |
| With light source | Yes |
| Light distributor | Refractor lens |
| Nominal voltage | 230 V |
| Material housing | Aluminium |
| With control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Power factor | 0.9 |
| Material cover | Glass transparent |
| Colour temperature | 3000 K |
| Type of wiring | Suitable for through wiring |
| Suitable for lamp power | 115 W |
| Height/depth | 70 mm |
| Light type | Mastaufsatzleuchte |
| Degree of protection (IP) | IP65 |
| Length | 1300 mm |
| Suitable for spigot size | 76 mm |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. system power | 115 W |
| Cable length | 0 m |
| Colour rendering index CRI | 80-89 |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Rated luminous flux according to IEC 62722-2-1 | 3800 lm |
| Adjustable optics | Yes |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Connection type | Screwed terminal |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Shape | Eckig |
