Article number Select a color, please

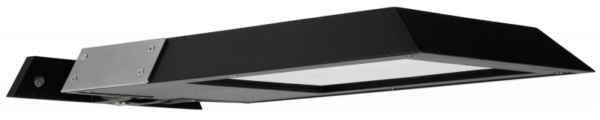

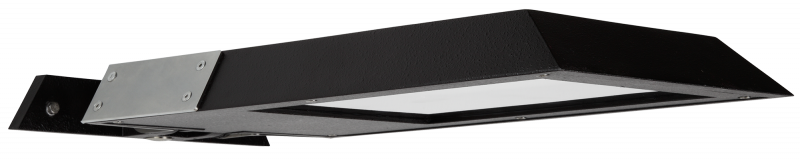

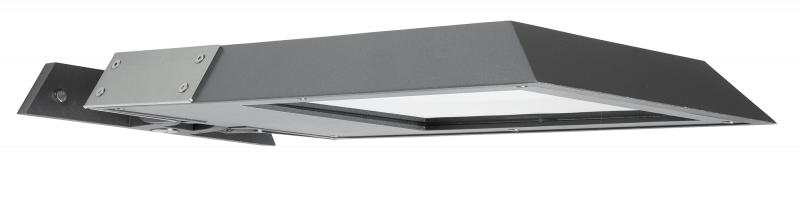

Vario wall floodlight

type ..0308

745,20

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W, 6 W
Rated luminous flux according to IEC 62722-2-1
490 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

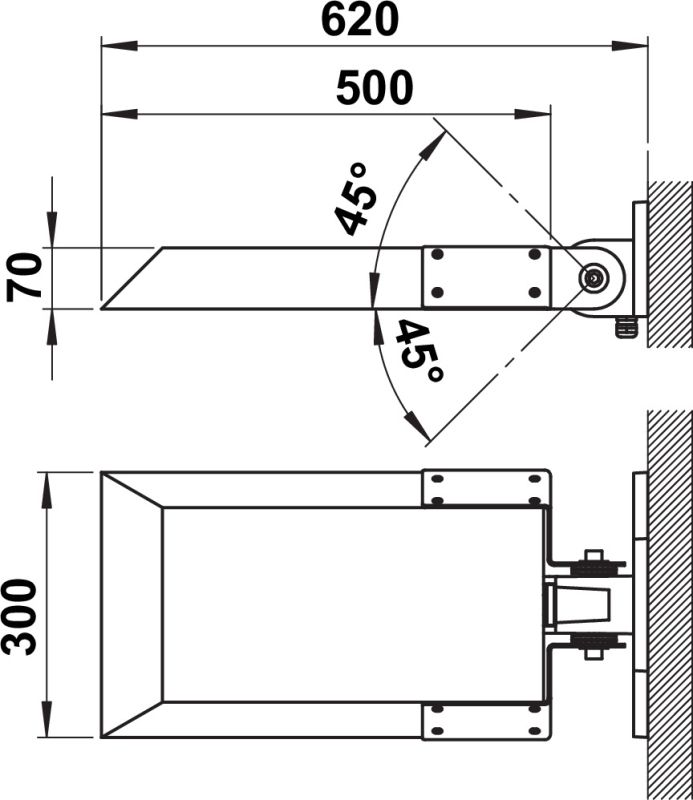

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620308
Offertext
For: 660308
Full catalog 21 / 22
Spare parts
90220361 - G 361, rectangular pane ESG show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Material housing

Aluminium

With control gear

No, Yes

Colour housing

Anthracite, Black

Material cover

Glass transparent

Voltage type

AC

Type of control gear

LED operating device voltage-controlled, Not required

Degree of protection (IP)

IP65

Light output

Direct

Nominal voltage

230 V

With light source

Yes

Suitable for number of lamps

1

Colour rendering index CRI

80-89

Beam angle

Open beam/diffuse

Suitable for lamp power

16 W, 6 W

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Lamp type

LED exchangeable

Power factor

0.9

Number of poles

3

Conductor cross section

2.5 mm²

Max. system power

16 W, 6 W

Rated luminous flux according to IEC 62722-2-1

490 lm

Colour of light

White

Colour temperature

3000 K

Exchangeable control gear

No, Yes

Stroboscope effect value SVM

0.4

Width

300 mm

Height/depth

70 mm

Length

620 mm

Type of wiring

Ending

Shape

Eckig

Mounting Type

Wand

Light output

1-seitig

Height

< 700 mm

Protection class

I

Surface protection housing

Lacquered

Connection type

Screwed terminal

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
