Article number Select a color, please

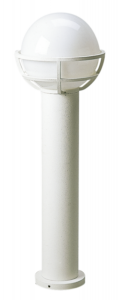

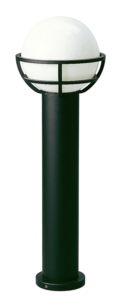

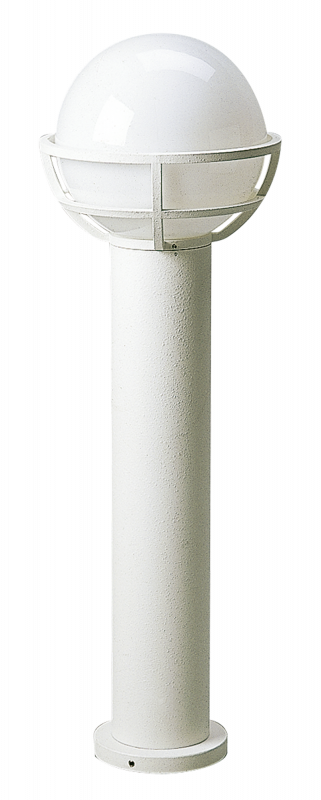

Bollard light

type ..2030

304,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Beam angle

Open beam/diffuse

Type of wiring

Suitable for through wiring

Light type

Standleuchte

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Diameter

260 mm

Surface protection

Lacquered

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Type of luminaire

Bollard luminaire

Degree of protection (IP)

IP44

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

75 W

Protection class

I

Light output

2-seitig

Power factor

1

Height

700 – 1000 mm

Height/depth

800 mm

Light sharing

Symmetric

Light output

Direct/indirect

Shape

Eckig

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

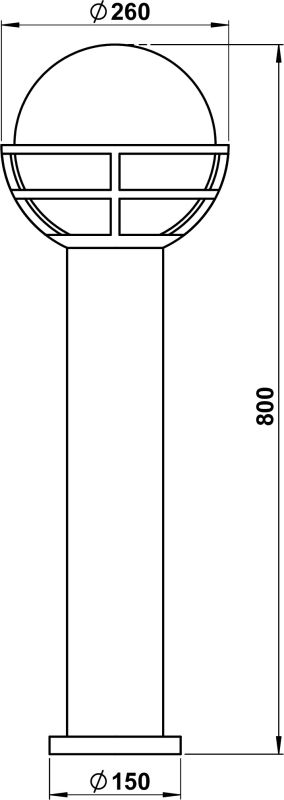

Dimensioned drawing
PDF | 22 KB
Light distribution curve - Eulumdat/LDT
LDT | 177 KB
Offertext
For: 662030
TXT | 303 B
Offertext
For: 682030
TXT | 303 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210116 - G 116, opal glass glossy show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
