Article number Select a color, please

Vario post-top luminaire

type ..0843

921,00

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
58 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 76mm.

Documents and files
Assembly instruction

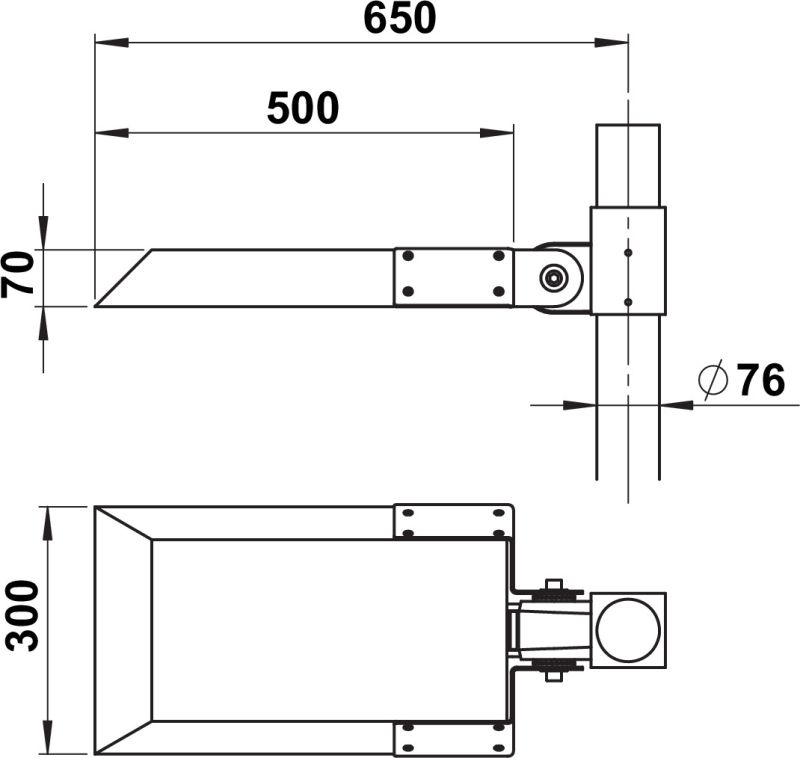

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

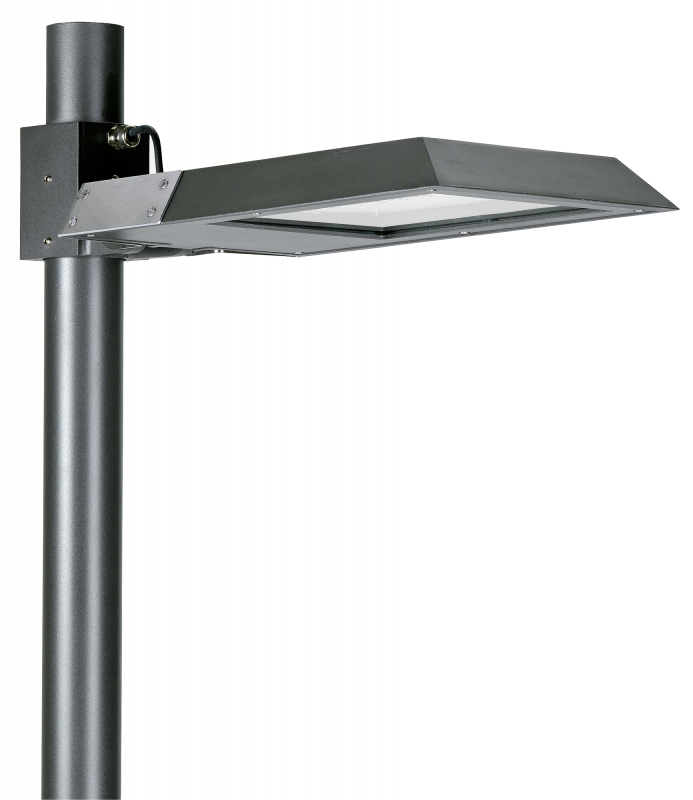

For: 620843
Offertext

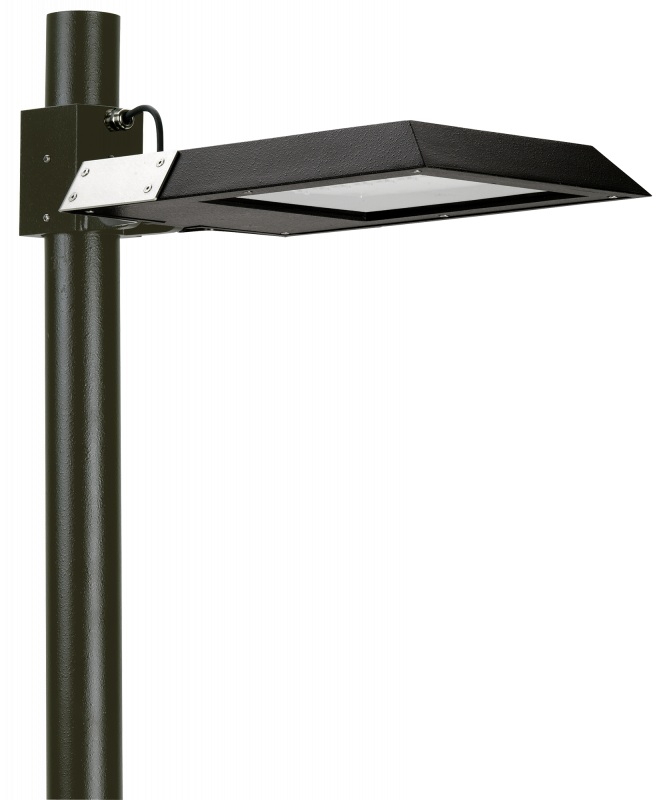

For: 660843
Full catalog 21 / 22
Spare parts
90220465 - G 465, rectangular pane ESG show

Additional information

Weight N/A
Light type

Mastaufsatzleuchte

No dim function

Yes

Colour of light

White

Material cover

Glass transparent

Nominal voltage

230 V

With control gear

Yes

Light distributor

Refractor lens

Colour housing

Anthracite, Black

Protection class

I

Lamp type

LED exchangeable

Type of control gear

LED operating device current-controlled

Adjustable optics

Yes

Suitable for lamp power

58 W

Material housing

Aluminium

Suitable for number of lamps

1

With light source

Yes

Surface protection

Lacquered

Power factor

0.9

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Voltage type

AC/DC

Energy efficiency class of the provided exchangeable built-in lamp

E

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

3800 lm

Suitable for spigot size

76 mm

Type of wiring

Suitable for through wiring

Cable length

0 m

Mounting Type

Post top

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Width

300 mm

Max. system power

58 W

Length

650 mm

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP65

Highest energy efficiency class of the exchangeable lamp

A+

Connection type

Screwed terminal

Height/depth

70 mm

Colour temperature

3000 K

Height

< 700 mm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig
