Data sheet

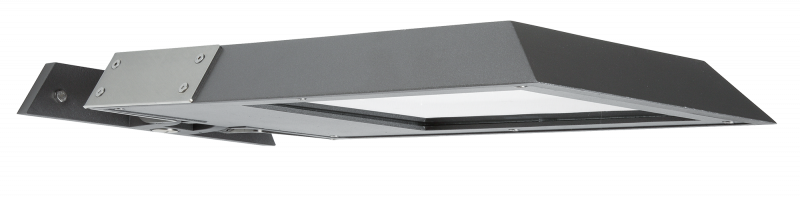

Vario wall floodlight Anthracite Product Image Article 620310

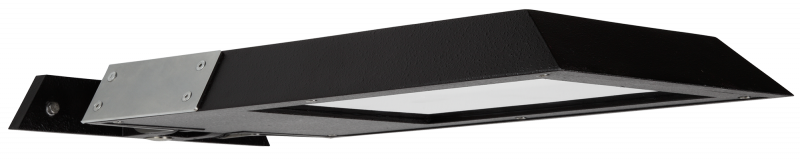

Vario wall floodlight Black Product Image Article 660310

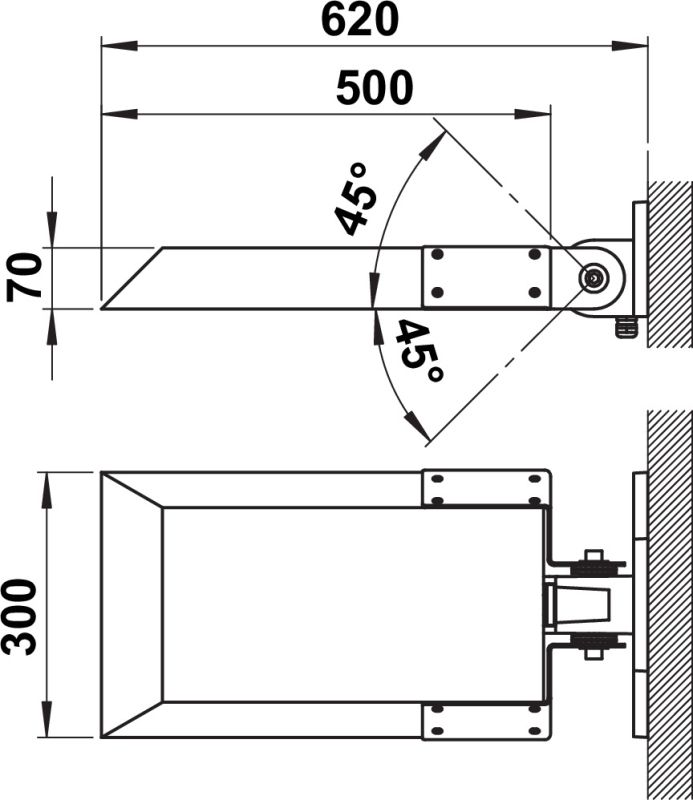

Vario wall floodlight Dimensioned drawing Article 620310, 660310
Vario wall floodlight Anthracite Product Image Article 620310
Vario wall floodlight Dimensioned drawing Article 620310, 660310
Vario wall floodlight Black Product Image Article 660310
Vario wall floodlight Dimensioned drawing Article 620310, 660310
Article number Select a color, please

Vario wall floodlight

type ..0310

€893,10

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction
download PDF 91.71 KB
Dimensioned drawing
download PDF 127.17 KB
Light distribution curve - Eulumdat/LDT
download LDT 87.83 KB
Offertext
For: 620310
download TXT 384 B
Offertext
For: 660310
download TXT 379 B
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220465 - G 465, rectangular pane ESG show

Additional information

Weight N/A
Rated luminous flux according to IEC 62722-2-1

3800 lm
Suitable for surface mounting

Yes
Lamp type

LED exchangeable
Colour housing

Anthracite, Black
Material cover

Glass transparent
Voltage type

AC
Type of control gear

LED operating device current-controlled
Degree of protection (IP)

IP65
Light output

Direct
Beam angle

Open beam/diffuse
With control gear

Yes
Colour rendering index CRI

80-89
With light source

Yes
Suitable for number of lamps

1
Nominal voltage

230 V
Material housing

Aluminium
Suitable for lamp power

16 W
Dimming depending on control gear

Yes
No dim function

Yes
Light sharing

Asymmetric, Symmetric
Energy efficiency class of the provided exchangeable built-in lamp

E
Surface protection housing

Lacquered
Height

< 700 mm
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Number of poles

3
Conductor cross section

2.5 mm²
Max. system power

16 W
Photobiological safety according to EN 62471

RG1
Colour of light

White
Connection type

Screwed terminal
Power factor

0.9
Width

300 mm
Height/depth

70 mm
Type of wiring

Ending
Suitable for wall mounting

Yes
Mounting Type

Wand
Light output

1-seitig
Protection class

I
Colour temperature

3000 K
Stroboscope effect value SVM

0.4
Colour consistency (McAdam ellipse)

SDCM3
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Flickering value Pst LM

1
Exchangeable control gear

Yes
Length

620 mm
Unified Glare Ratio (UGR)

1
Shape

Eckig
