Data sheet
Article number
Select a color, please

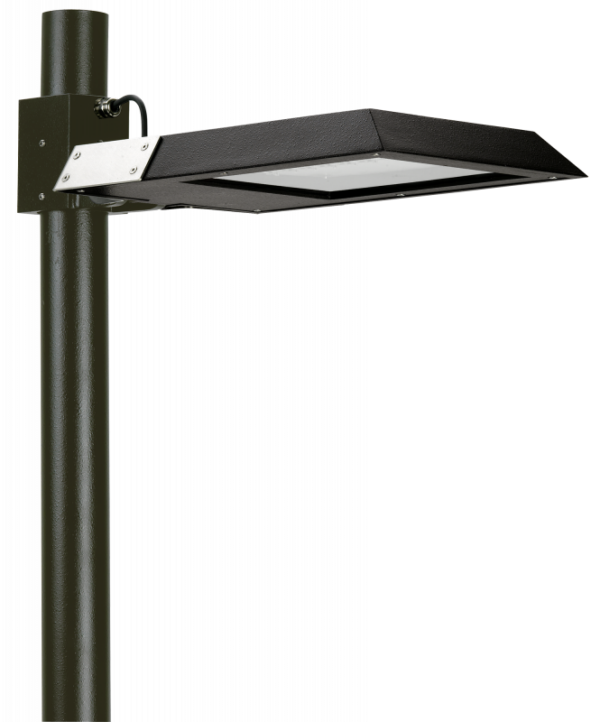

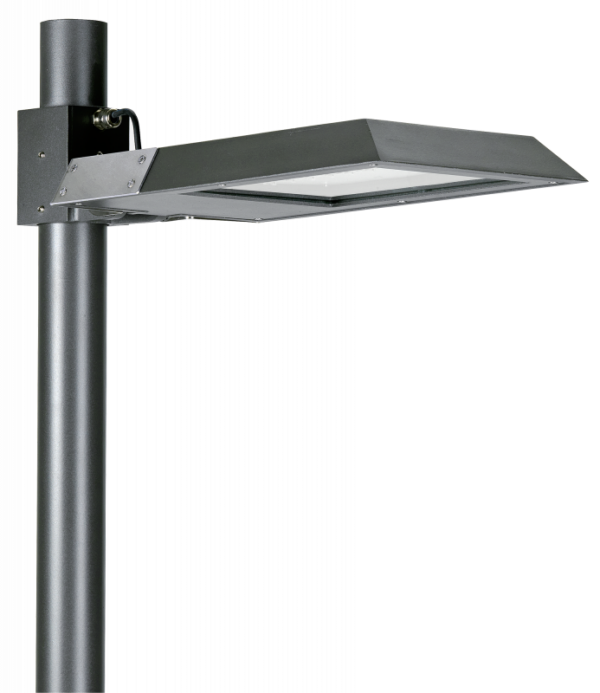

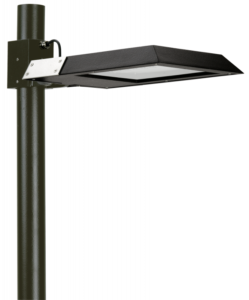

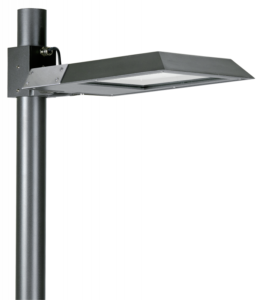

Vario post-top luminaire
type ..0880
€921,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
58 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
Recommendations
This product is suitable for light poles with a pole top end diameter of 76mm.
Documents and files
Assembly instruction

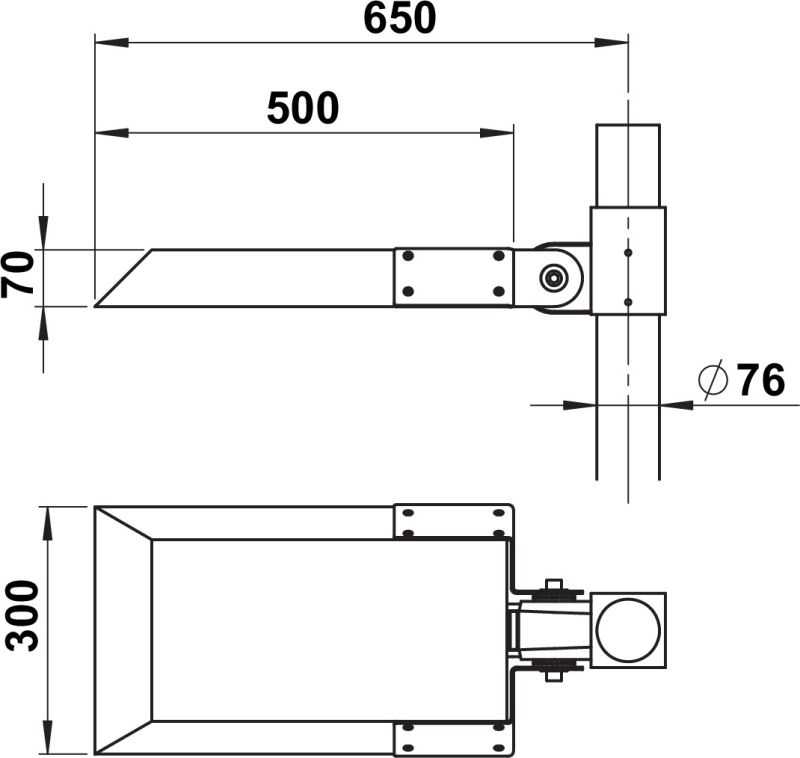

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620880
Offertext
For: 660880
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Colour of light | White |
| Material cover | Glass transparent |
| With control gear | Yes |
| Nominal voltage | 230 V |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP65 |
| Surface protection | Lacquered |
| Material housing | Aluminium |
| Suitable for number of lamps | 1 |
| With light source | Yes |
| No dim function | Yes |
| Colour housing | Anthracite, Black |
| Type of control gear | LED operating device current-controlled |
| Lamp type | LED exchangeable |
| Width | 300 mm |
| Light distributor | Refractor lens |
| Voltage type | AC/DC |
| Suitable for lamp power | 58 W |
| Connection type | Screwed terminal |
| Suitable for spigot size | 76 mm |
| Height/depth | 70 mm |
| Max. system power | 58 W |
| Conductor cross section | 2.5 mm² |
| Cable length | 0 m |
| Length | 650 mm |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour rendering index CRI | 80-89 |
| Mounting Type | Post top |
| Adjustable optics | Yes |
| Light type | Mastaufsatzleuchte |
| Number of poles | 3 |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Rated luminous flux according to IEC 62722-2-1 | 3800 lm |
| Colour temperature | 3000 K |
| Power factor | 0.9 |
| Type of wiring | Suitable for through wiring |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Shape | Eckig |
