Article number Select a color, please

Vario wall floodlight

type ..0310

688,20

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux acc. IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

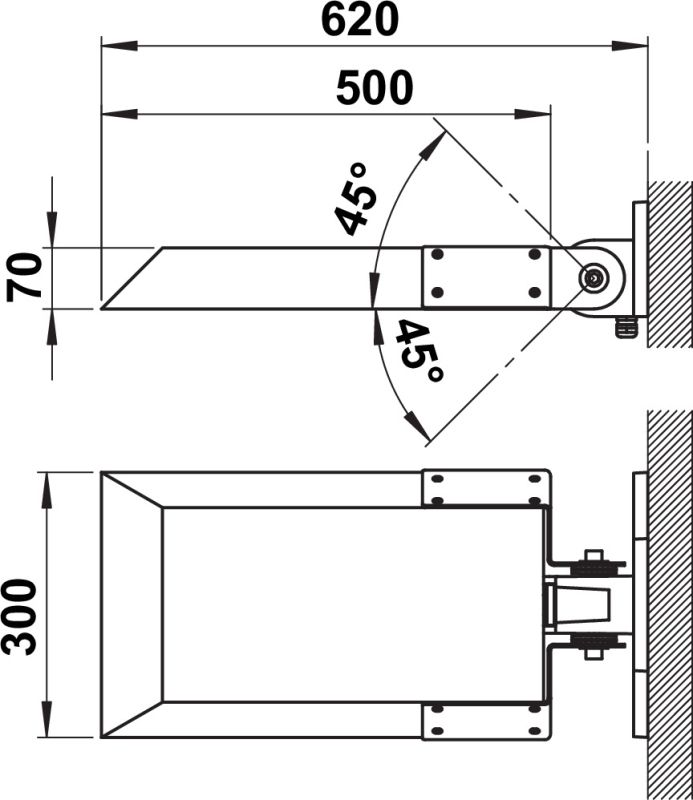

Dimensioned drawing
Light distribution curve
Offertext
For: 620310
Offertext
For: 660310
Full catalog 21 / 22
Spare parts
90220465 - G 465, rectangular pane ESG show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Material housing

Aluminium

Control gear included

Yes

Colour housing

Anthracite, Black

Material cover

Glass transparent

Voltage type

AC

Type of control gear

LED operating device current-controlled

Degree of protection (IP)

IP65

Light output

Direct

With light source

Yes

Suitable for number of lamps

1

Nominal voltage

230 V

Suitable for lamp power

16 W

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Asymmetric, Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

A+

Beam angle

Open beam/diffuse

Colour rendering index CRI

80-89

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Number of poles

3

Conductor cross section

2.5 mm²

Max. system power

16 W

Rated luminous flux acc. IEC 62722-2-1

3800 lm

Colour of light

White

Colour temperature

3000 K

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Power factor

0.9

Width

300 mm

Height/depth

70 mm

Length

620 mm

Type of wiring

Ending

Shape

Eckig

Mounting Type

Wand

Light output

1-seitig

Height

< 700 mm
