Wall and ceiling light
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT

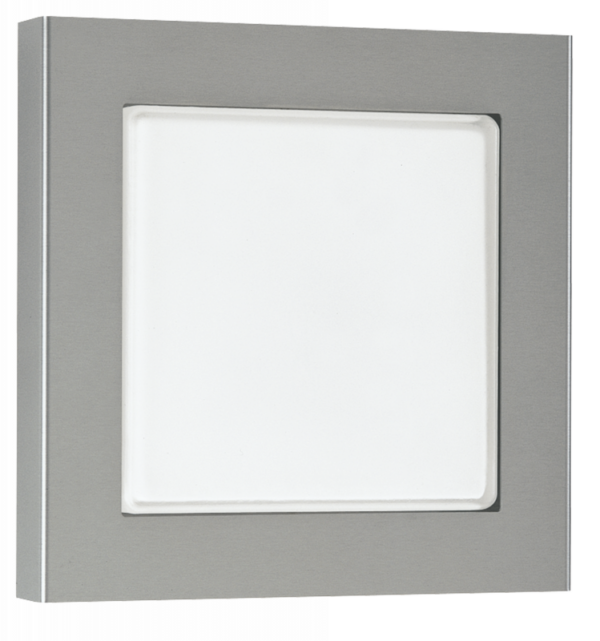

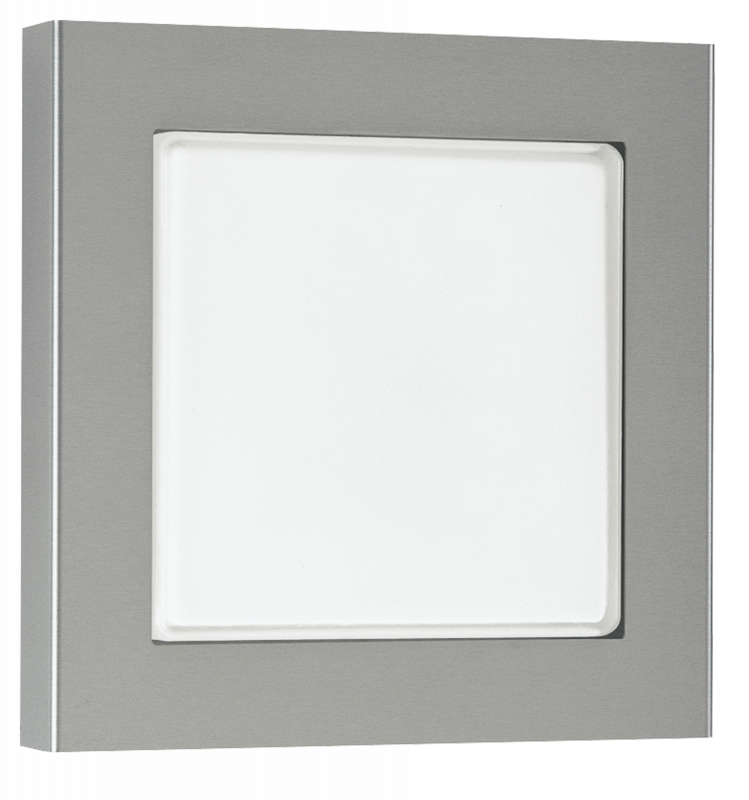

Albert wall and ceiling light 696115

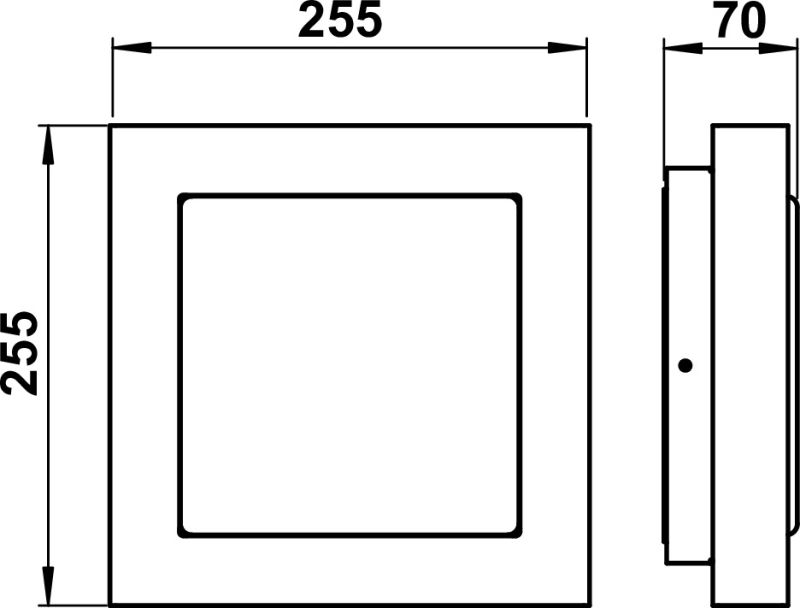

made of stainless steel with opal glass, with separate mounting plate made of cast aluminium. Fitted for 1 x halogen bulb QT-DE 12 60 W, socket R7s.protection class IP 44 – protection class : 255 x 255 x 70 mm
| Weight | 3,20 kg |
|---|---|
| Light outlet | 1-seitig |
| Height | < 700 mm |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Mounting method | Decke, Wand |
| Connection type | Screwed terminal |
| Unified Glare Ratio (UGR) | 1 |
| Power factor | 1 |
| Surface protection housing | Untreated |
| Height/depth | 255 mm |
| Width | 255 mm |
| No dim function | Yes |
| Dimming depending on control gear | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Number of poles | 3 |
| Length | 70 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Type of wiring | Ending |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| Nominal voltage | 230 V |
| Suitable for ceiling mounting | Yes |
| Dimming phase cut-on | Yes |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Light outlet | Direct |
| Type of control gear | Not required |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Suitable for surface mounting | Yes |
| Light sharing | Symmetric |
| Max. system power | 60 W |
| Shape | Eckig |
| 90210126 - G 126, clear glass matt | show |
Additional information
| Weight | 3,20 kg |
|---|---|
| Light outlet | 1-seitig |
| Height | < 700 mm |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Mounting method | Decke, Wand |
| Connection type | Screwed terminal |
| Unified Glare Ratio (UGR) | 1 |
| Power factor | 1 |
| Surface protection housing | Untreated |
| Height/depth | 255 mm |
| Width | 255 mm |
| No dim function | Yes |
| Dimming depending on control gear | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Number of poles | 3 |
| Length | 70 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Type of wiring | Ending |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| Nominal voltage | 230 V |
| Suitable for ceiling mounting | Yes |
| Dimming phase cut-on | Yes |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Light outlet | Direct |
| Type of control gear | Not required |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Suitable for surface mounting | Yes |
| Light sharing | Symmetric |
| Max. system power | 60 W |
| Shape | Eckig |
