Article number 696132

Wall and ceiling light

type ..6132

205,80

Specifications

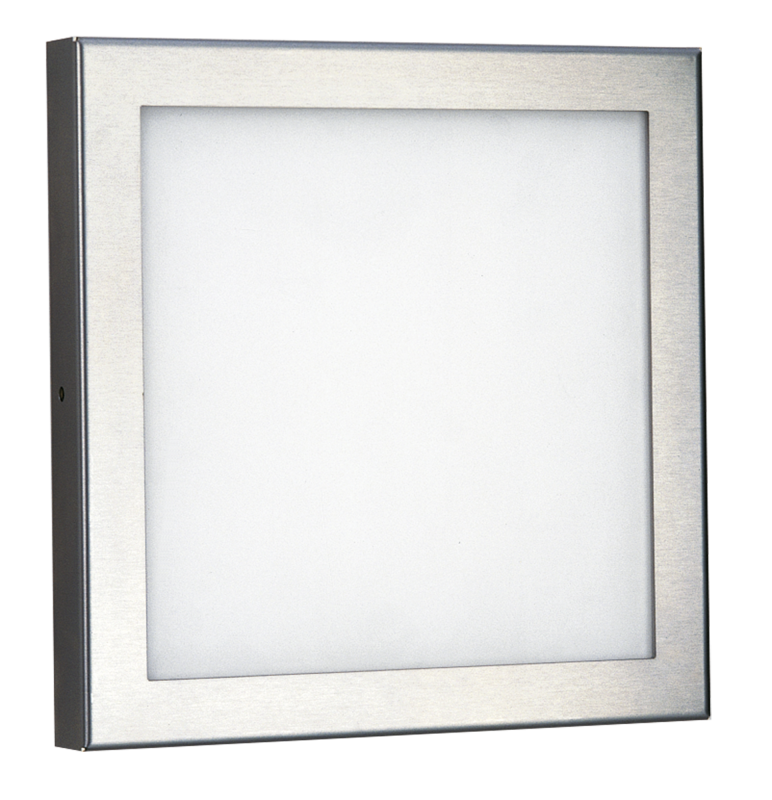

Albert wall and ceiling light 696132
made of stainless steel with opal pane glass. Equipped for 2 x fluorescent lamps TC 9W, socket G23.protection class IP 54 – protection class : 260 x 260 x 60 mm.

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
18 W
Material cover
Glass structured
Weight 3,10 kg
Light output

1-seitig

Suitable for number of lamps

2

Suitable for ceiling mounting

Yes

Nominal voltage

230 V

With control gear

Yes

Voltage type

AC

Suitable for surface mounting

Yes

Max. system power

18 W

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP54

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of control gear

Low-loss ballast inductive

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Dimming depending on control gear

Yes

No dim function

Yes

Width

260 mm

Height/depth

260 mm

Surface protection housing

Untreated

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Power factor

1

Type of wiring

Suitable for through wiring

Exchangeable control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Length

60 mm

Number of poles

3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

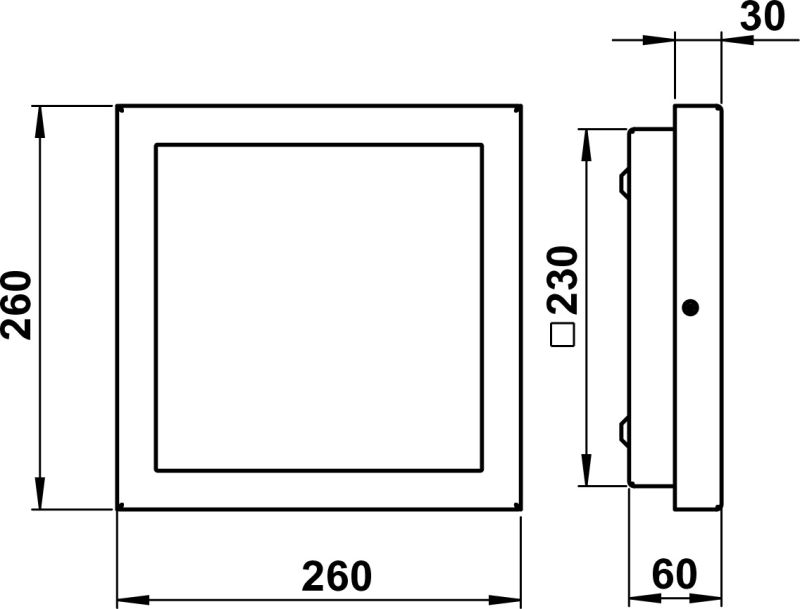

Dimensioned drawing
PDF | 90 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220301 - G 301, milk flashed glass show
