Data sheet
Article number
Select a color, please
Wall light
type ..0609
€179,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

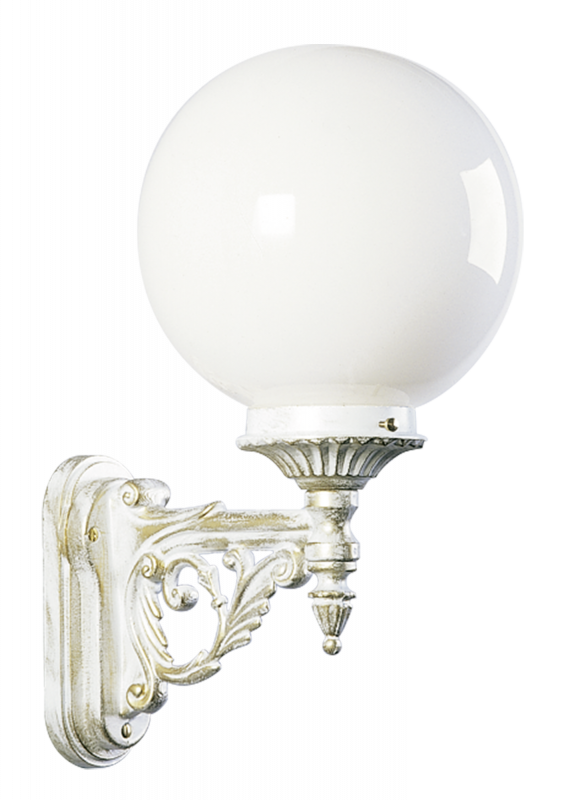

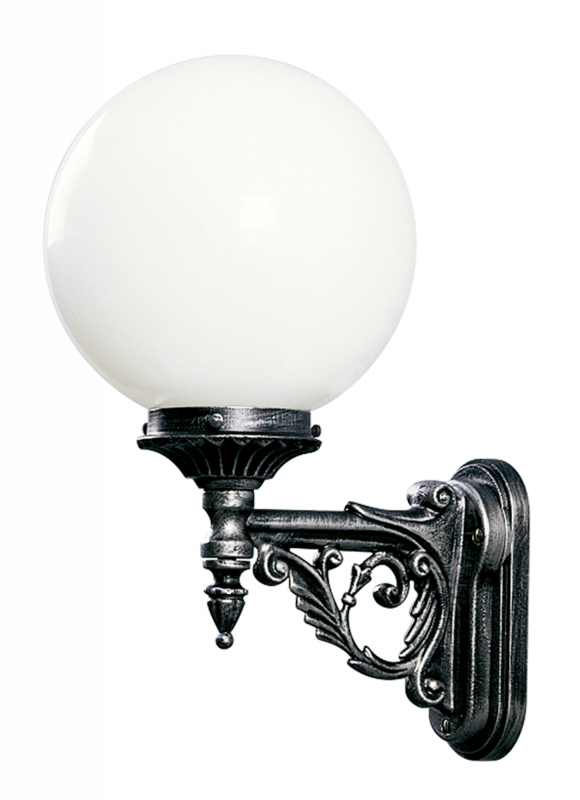

Black-Silver, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

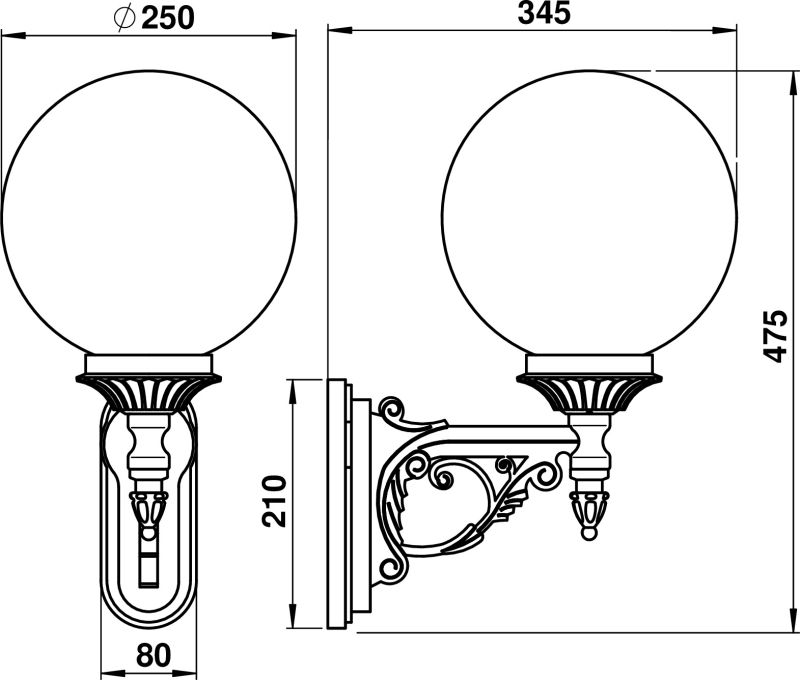

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
For: 600609
Light distribution curve - Eulumdat/LDT
For: 670609
Offertext
For: 600609
Offertext
For: 670609
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Conductor cross section | 2.5 mm² |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Nominal voltage | 230 V |
| Connection type | Screwed terminal |
| Suitable for number of lamps | 1 |
| Width | 80 mm |
| Lamp holder | E27 |
| Material housing | Aluminium |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour housing | Black-Silver, White-Gold |
| Dimming depending on control gear | Yes |
| Material cover | Glass opal |
| Suitable for surface mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Type of control gear | Not required |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection housing | Lacquered |
| Number of poles | 3 |
| Light output | 1-seitig |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Length | 345 mm |
| Height | < 700 mm |
| Suitable for lamp power | 1 – 75 W |
| Max. system power | 75 W |
| Height/depth | 475 mm |
| Power factor | 1 |
| Type of wiring | Ending |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light type | Wandleuchte |
| Unified Glare Ratio (UGR) | 1 |
| No dim function | Yes |
| Light output | Direct |
| Protection class | I |
| Mounting Type | Wand |
| Outer diameter | 250 mm |
| Shape | Eckig |
| Photobiological safety according to EN 62471 | RG1 |
| Style | Modern |
