Data sheet
Article number 696152

Wall and ceiling light

type ..6152

€193,30

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

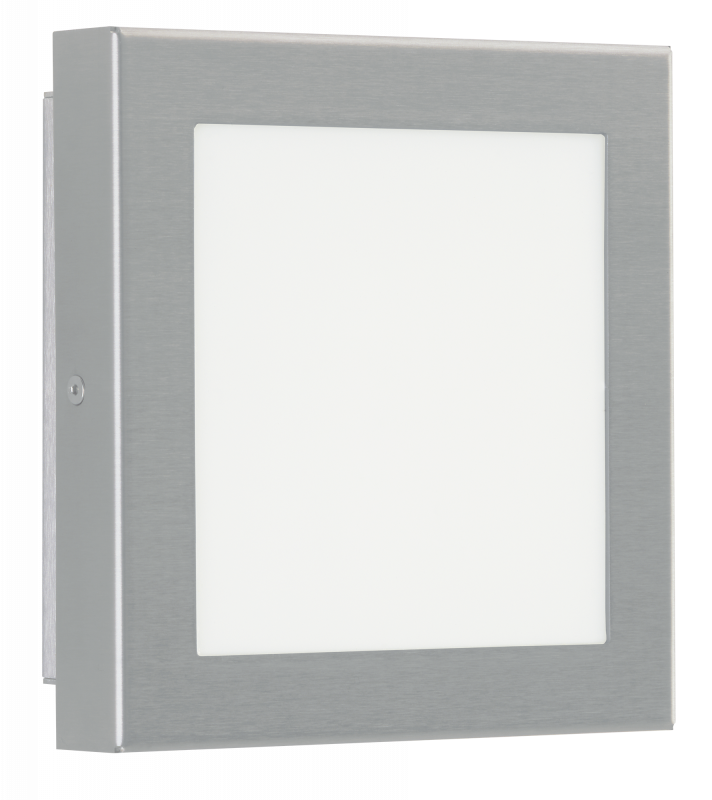

Albert wall and ceiling light 696152

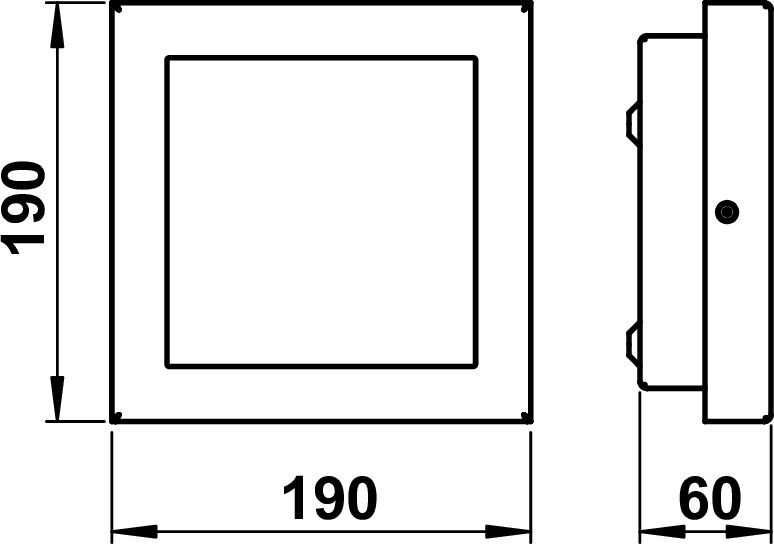

made of stainless steel with opal pane glass. Equipped for 1 x fluorescent lamp TC-F 18W, socket 2G10Protection class IP 54 – Protection class : 190 x 190 x 60 mm

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
2G10
Suitable for lamp power
18 W
Material cover
Glass structured
Spare parts
90220306 - G 306, milk flashed glass show

Additional information

Weight 1,70 kg
Light output

1-seitig
Lamp type

Compact fluorescent lamp
Suitable for number of lamps

1
Lamp holder

2G10
Material housing

Stainless steel
Colour housing

Stainless steel
Suitable for ceiling mounting

Yes
Nominal voltage

230 V
With control gear

Yes
Voltage type

AC
Suitable for surface mounting

Yes
Suitable for lamp power

18 W
Max. system power

18 W
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct
Degree of protection (IP)

IP54
Material cover

Glass structured
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Type of control gear

Low-loss ballast inductive
Height

< 700 mm
Protection class

I
Type of wiring

Suitable for through wiring
Dimming depending on control gear

Yes
No dim function

Yes
Width

190 mm
Height/depth

190 mm
Surface protection housing

Untreated
Unified Glare Ratio (UGR)

1
Connection type

Screwed terminal
Mounting Type

Decke, Wand
Suitable for wall mounting

Yes
Conductor cross section

2.5 mm²
Highest energy efficiency class of the exchangeable lamp

A++
Power factor

1
Exchangeable control gear

Yes
Lowest energy efficiency class of the exchangeable lamp

E
Photobiological safety according to EN 62471

RG1
Length

60 mm
Number of poles

3
Shape

Angular, Eckig
